Differential assembly (page 2 of 18)

TRANSFER BOX - LT230SE

OVERHAUL

41-47

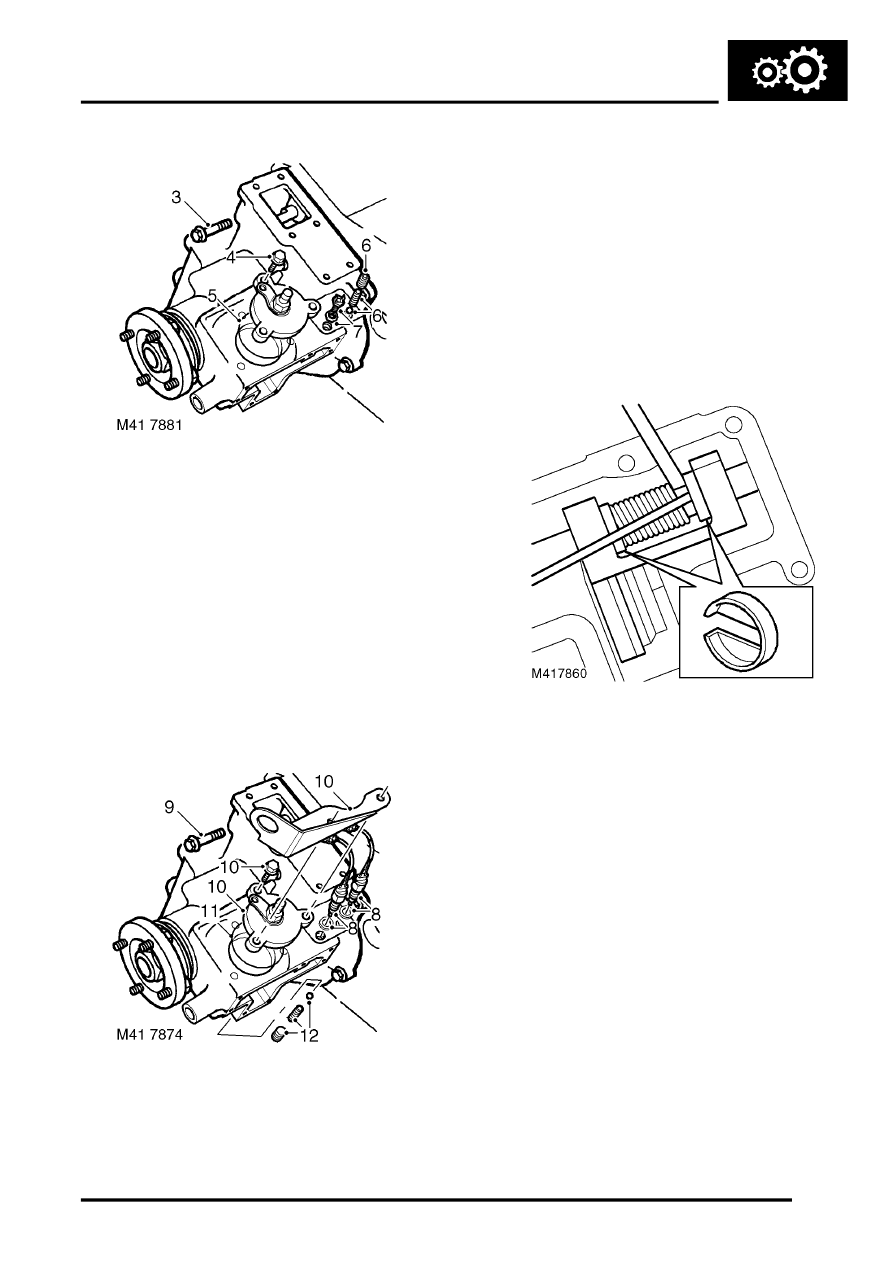

3. Note position of longest bolt and remove 8 bolts

securing front output shaft housing  to main
casing and remove housing.

Note: Carry out the following operations if
differential lock is fitted.

4. Differential lock fitted: Remove 3 bolts

securing differential  lock selector housing and
remove housing.

5. Differential lock fitted: Remove and discard

'O' rings from selector housing.

6. Up to 03 Model Year: Remove Allen plug and

remove differential lock detent spring and ball.

7. Up to 03 Model Year: Remove differential lock

warning lamp switch and locknut.

8. 03 Model Year onwards - differential lock

fitted: Remove 2 differential lock warning lamp
switches and sealing washers.

9. 03 Model Year onwards - differential lock

fitted: Note position of longest bolt and remove
8 bolts securing front output housing to main
casing and remove housing.

10. 03 Model Year onwards - differential lock

fitted: Remove 3 bolts securing differential lock
selector housing and bracket, remove bracket
and housing.

11. 03 Model Year onwards - differential lock

fitted: Remove and discard 'O' rings from
selector housing.

12. 03 Model Year onwards - differential lock

fitted: Remove detent plug, recover spring and
ball.

13. All transfer boxes fitted with differential

lock: Compress differential lock selector fork
spring and remove retaining clips from each
end of spring.

14. All transfer boxes fitted with differential

lock: Withdraw differential lock selector shaft
from front output housing, recover  spring and
remove selector fork.
