AUTOMATIC GEARBOX - ZF4HP22 - 24Automatic gearbox component layout
AUTOMATIC GEARBOX - ZF4HP22 - 24
DESCRIPTION AND OPERATION
44-1
AUTOMATIC GEARBOX - ZF4HP22 - 24
DESCRIPTION AND OPERATION

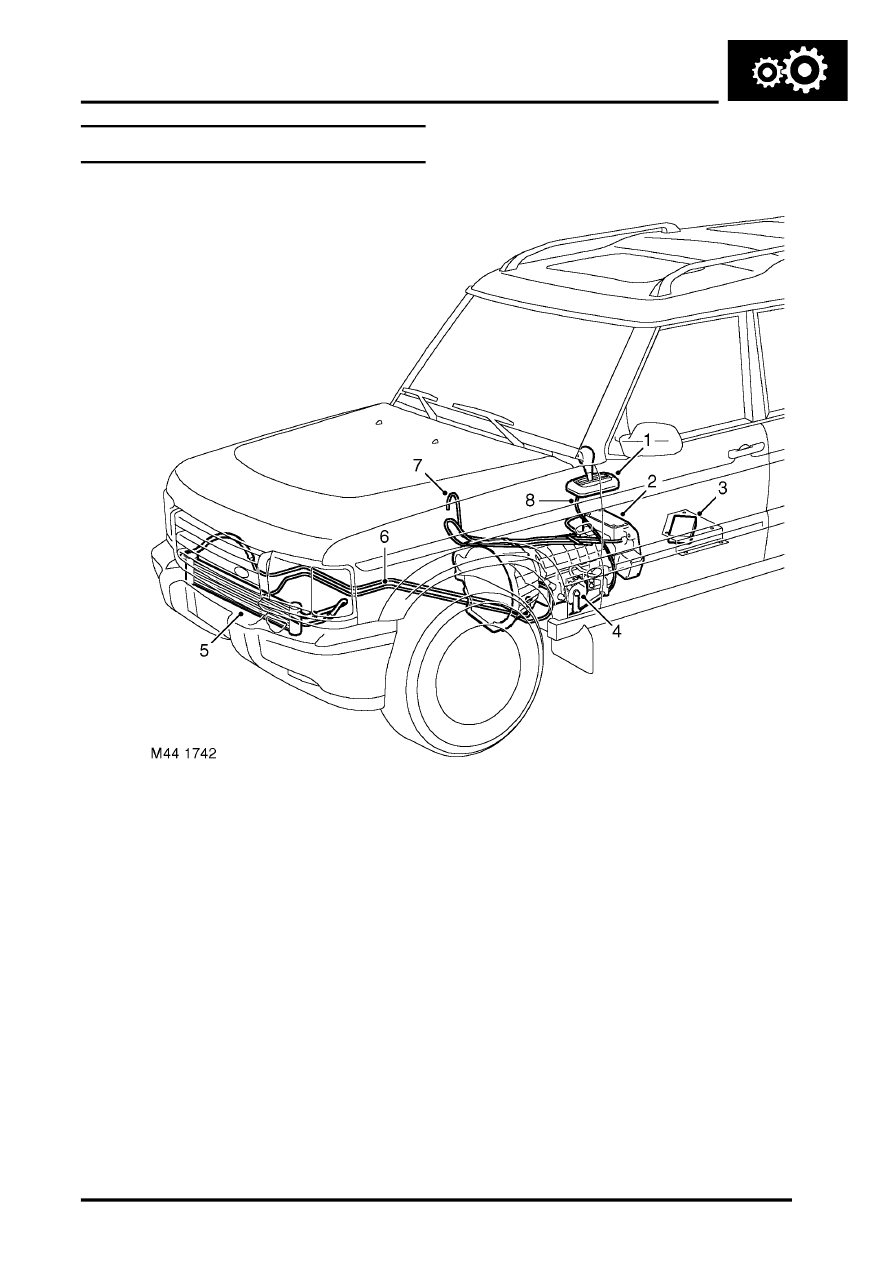

Automatic gearbox component layout
1 Selector lever assembly
2 Gearbox
3 Electronic automatic transmission ECU
4 Selector position switch
5 Oil cooler
6 Fluid lines
7 Breather tube
8 Selector cable
