Front axle component layout
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION › Front axle component layout
FRONT AXLEFront axle component layout
FRONT AXLE
DESCRIPTION AND OPERATION
54-1
FRONT AXLE
DESCRIPTION AND OPERATION

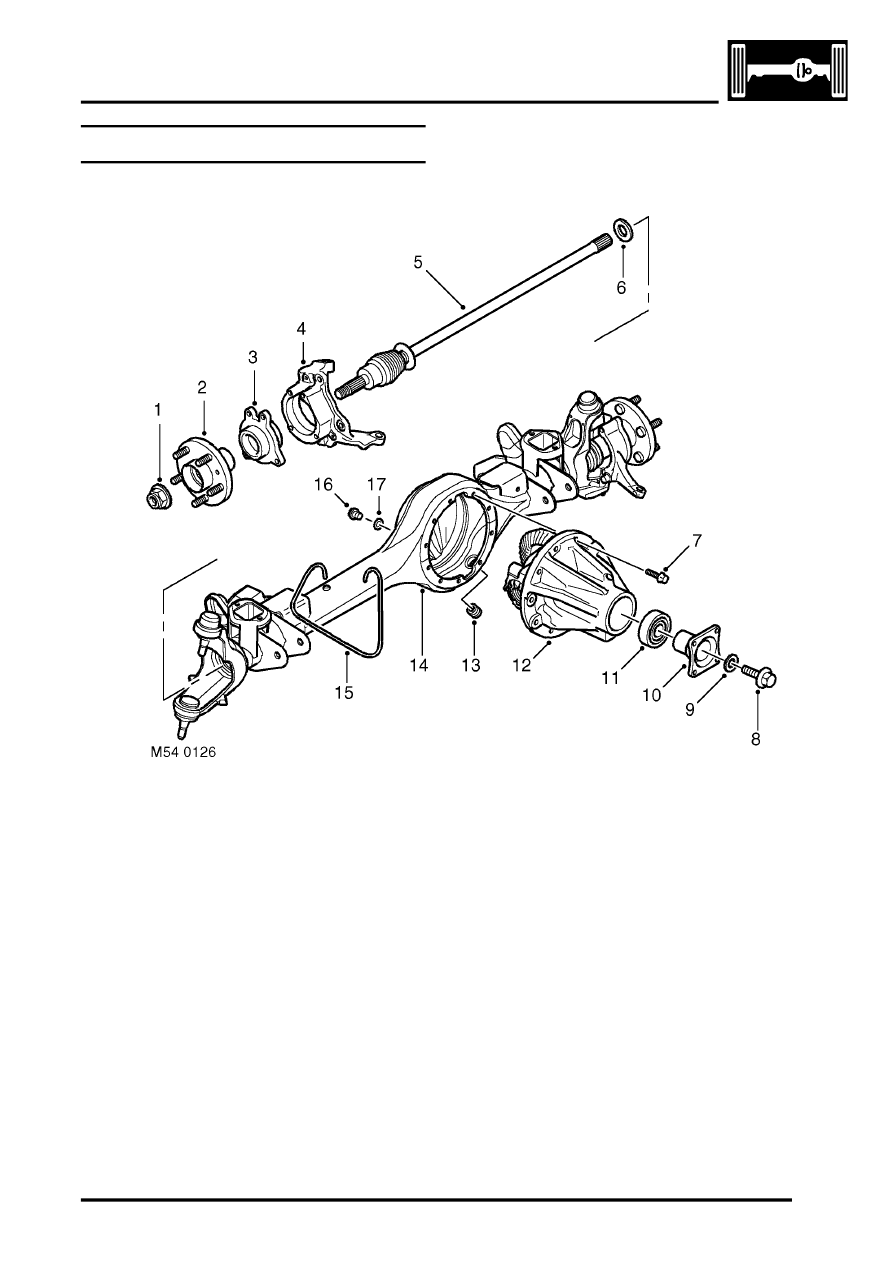

Front axle component layout
1 Stake nut
2 Hub flange
3 Hub bearing
4 Steering knuckle
5 Drive shaft
6 Oil seal
7 Bolt
8 Bolt
9 Washer
10 Drive flange
11 Oil seal
12 Differential unit
13 Drain plug
14 Axle casing
15 Breather tube
16 Oil level plug
17 'O' ring
