REAR SUSPENSIONRear suspension component layout (vehicles with SLS)

REAR SUSPENSION

64-2

DESCRIPTION AND OPERATION

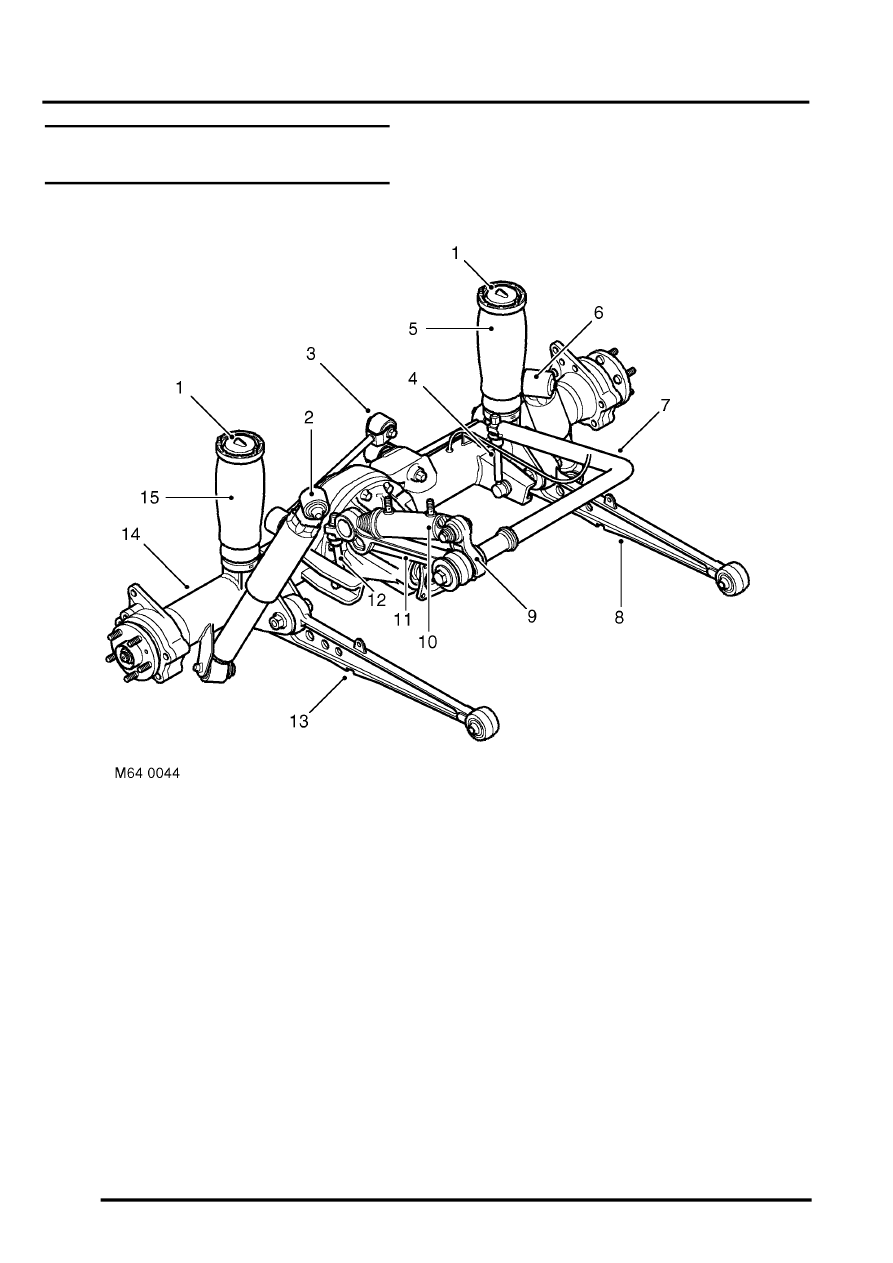

Rear suspension component layout
(vehicles with SLS)

1 Air pressure pipe connector
2 Damper RH
3 Watts linkage
4 Anti-roll bar link LH
5 Air spring LH
6 Damper LH
7 Torsion/Anti-roll bar
8 Radius arm LH

9 ACE short arm (if fitted)

10 ACE actuator (if fitted)
11 ACE long arm (if fitted)
12 Anti-roll bar link RH
13 Radius arm RH
14 Rear axle
15 Air spring RH
