A/C refrigerant system component layout (AIR CONDITIONING)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION › A/C refrigerant system component layout
AIR CONDITIONINGA/C refrigerant system component layout
AIR CONDITIONING
DESCRIPTION AND OPERATION
82-1
AIR CONDITIONING
DESCRIPTION AND OPERATION

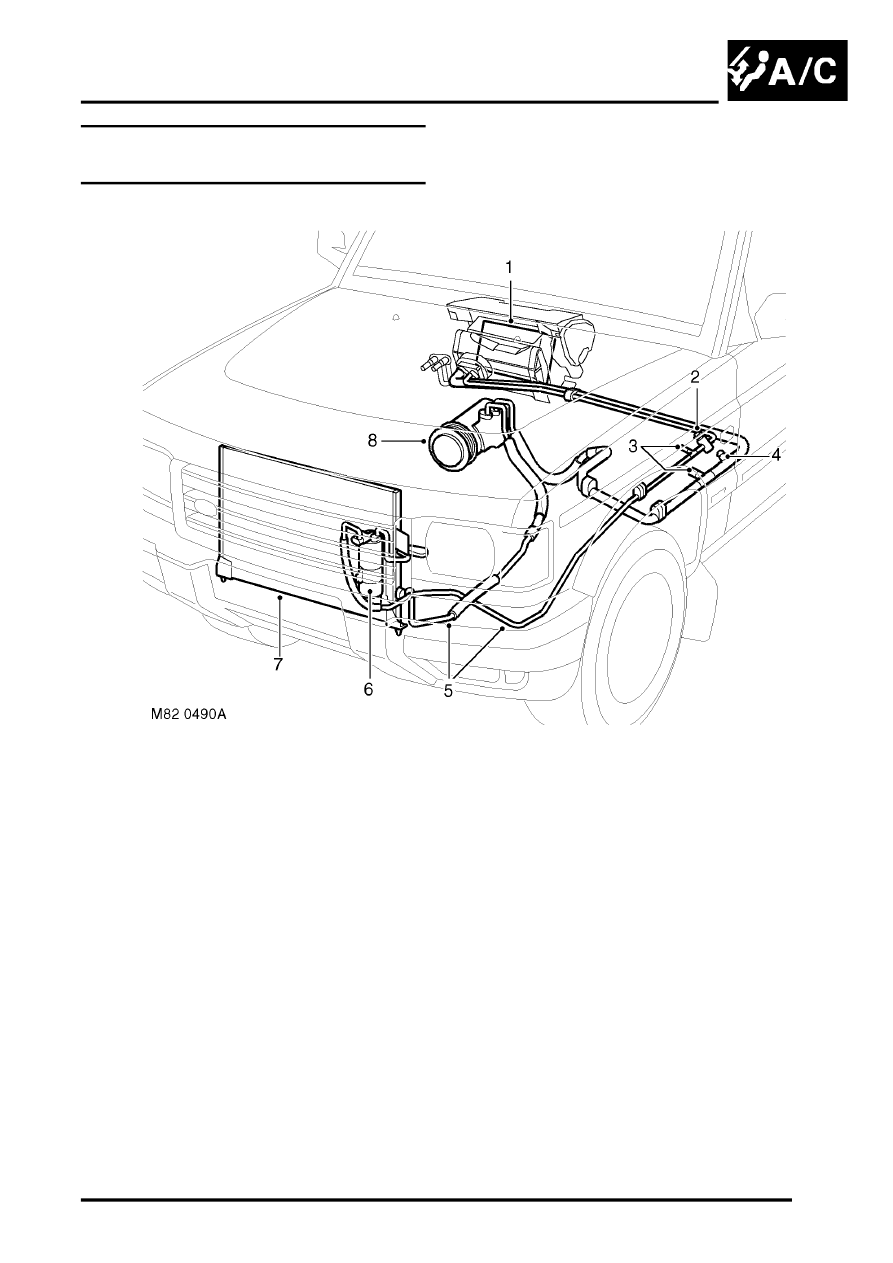

A/C refrigerant system component
layout
Diesel installation shown, V8 similar
1 Evaporator and thermostatic expansion valve
2 High pressure servicing connection
3 To rear A/C system (where fitted)
4 Low pressure servicing connection
5 Refrigerant lines
6 Receiver drier
7 Condenser
8 Compressor
