REAR AXLERear axle component layout
REAR AXLE
DESCRIPTION AND OPERATION
51-1
REAR AXLE
DESCRIPTION AND OPERATION

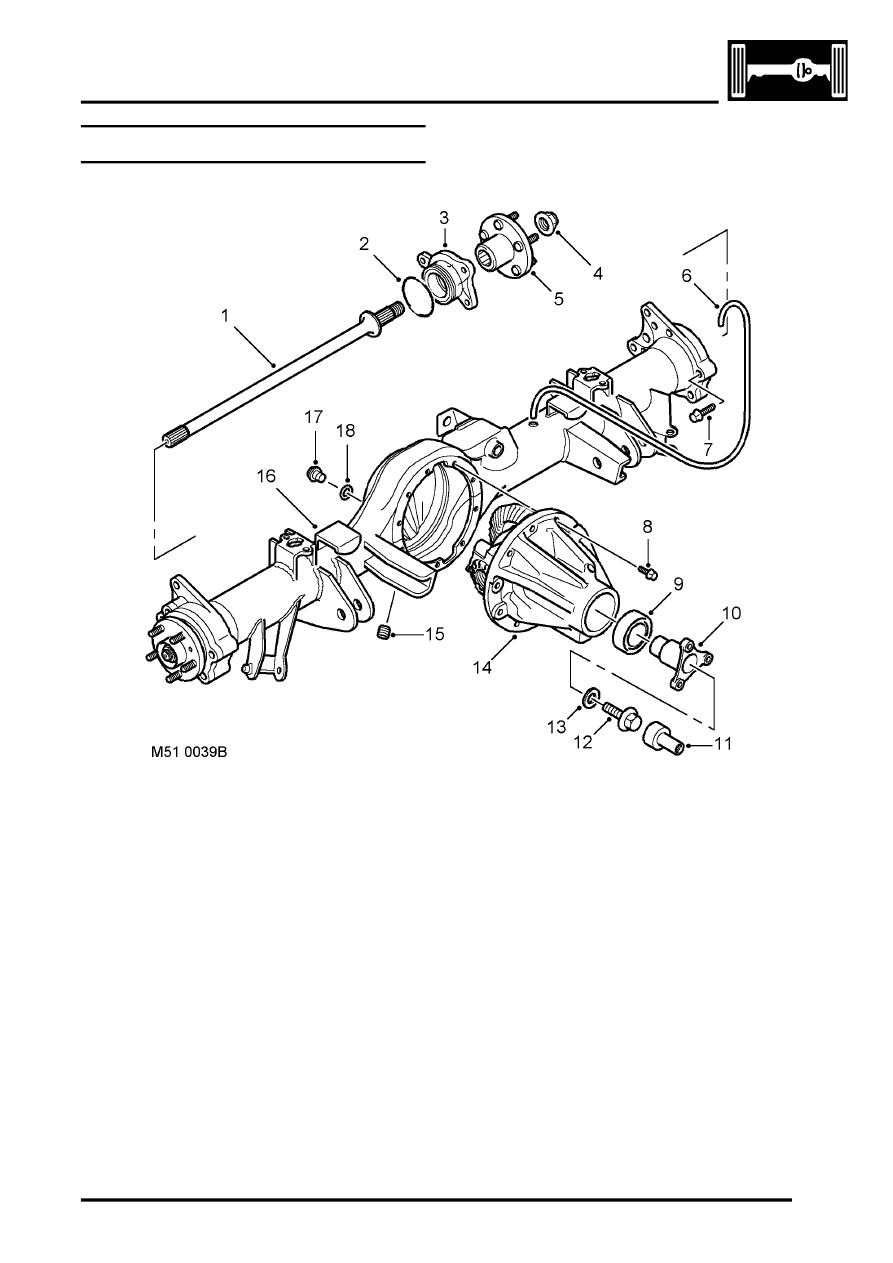

Rear axle component layout
1 Drive shaft
2 'O' ring
3 Hub bearing
4 Stake nut
5 Hub flange
6 Breather tube
7 Bolt
8 Bolt
9 Oil seal
10 Pinion flange
11 Centralising peg
12 Bolt
13 Washer
14 Differential unit
15 Drain plug
16 Axle casing
17 Oil level plug
18 'O' ring
