INSTRUMENTS (Instrument pack): DESCRIPTION AND OPERATION

INSTRUMENTS

DESCRIPTION AND OPERATION

88-1

INSTRUMENTS

DESCRIPTION AND OPERATION

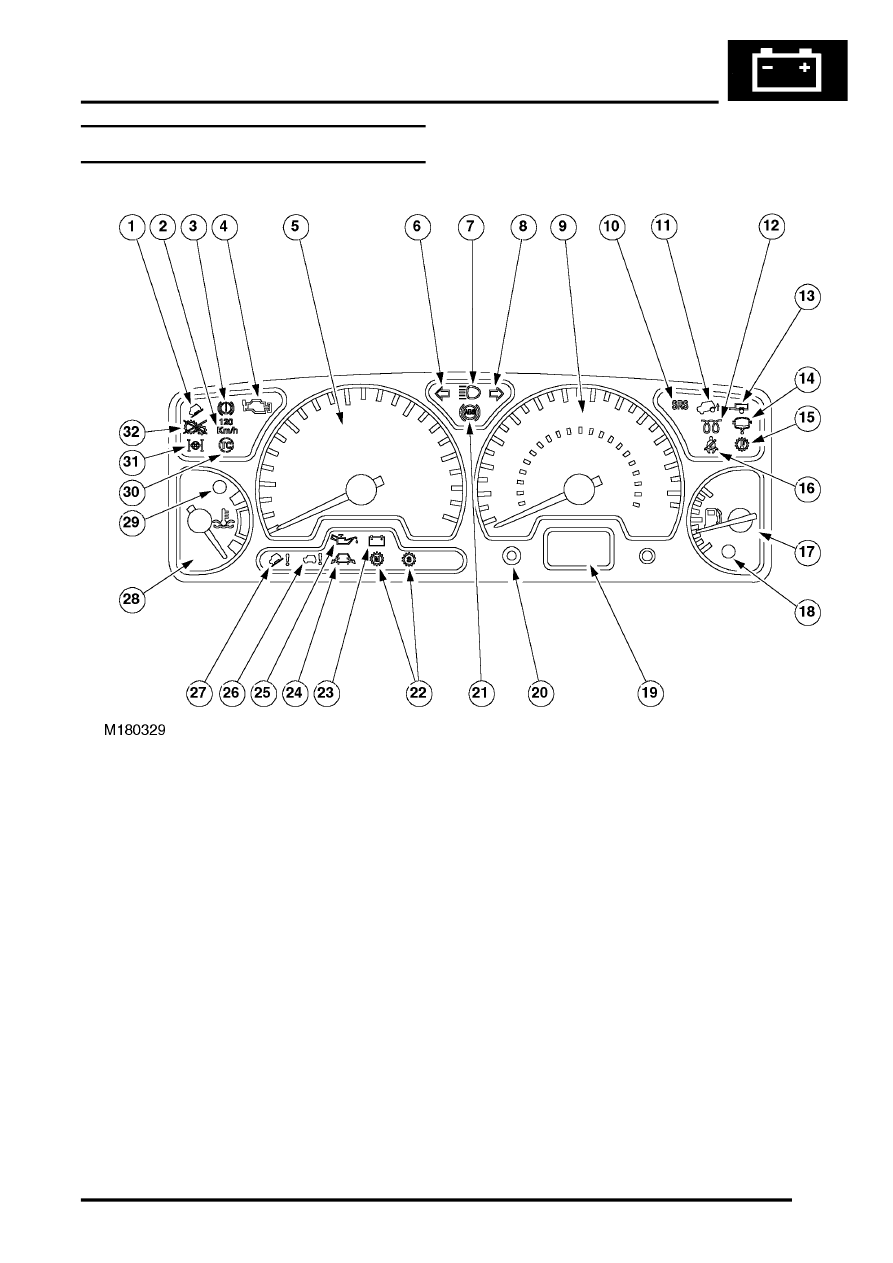

Instrument pack

1 Hill descent control information warning lamp
2 Overspeed warning lamp
3 Brake system warning lamp
4 Malfunction Indicator Lamp (MIL)
5 Tachometer
6 Direction indicator warning lamp
7 Main beam warning lamp
8 Direction indicator warning lamp
9 Speedometer

10 SRS warning lamp
11 Off road mode warning lamp
12 Glow plug warning lamp
13 Trailer warning lamp
14 Water in fuel filter warning lamp
15 Transmission high temperature warning lamp
16 Seat belt warning lamp

17 Fuel tank level gauge
18 Low fuel level warning lamp
19 LCD odometer/trip meter
20 Anti-theft status warning lamp
21 ABS warning lamp
22 Gearbox manual/sport mode warning lamp
23 Alternator charge warning lamp
24 ACE warning lamp
25 Oil pressure warning lamp
26 SLS warning lamp
27 Hill descent control warning lamp
28 Engine coolant temperature gauge
29 High coolant temperature warning lamp
30 Traction control warning lamp
31 Differential lock warning lamp
32 Transfer box neutral warning lamp
