CHASSIS AND BODY DIMENSIONS (page 4 of 4)
- Make
- Land Rover
- Model
- Discovery II
CHASSIS AND BODY DIMENSIONS · page 4 of 4
CHASSIS AND BODY DIMENSIONS

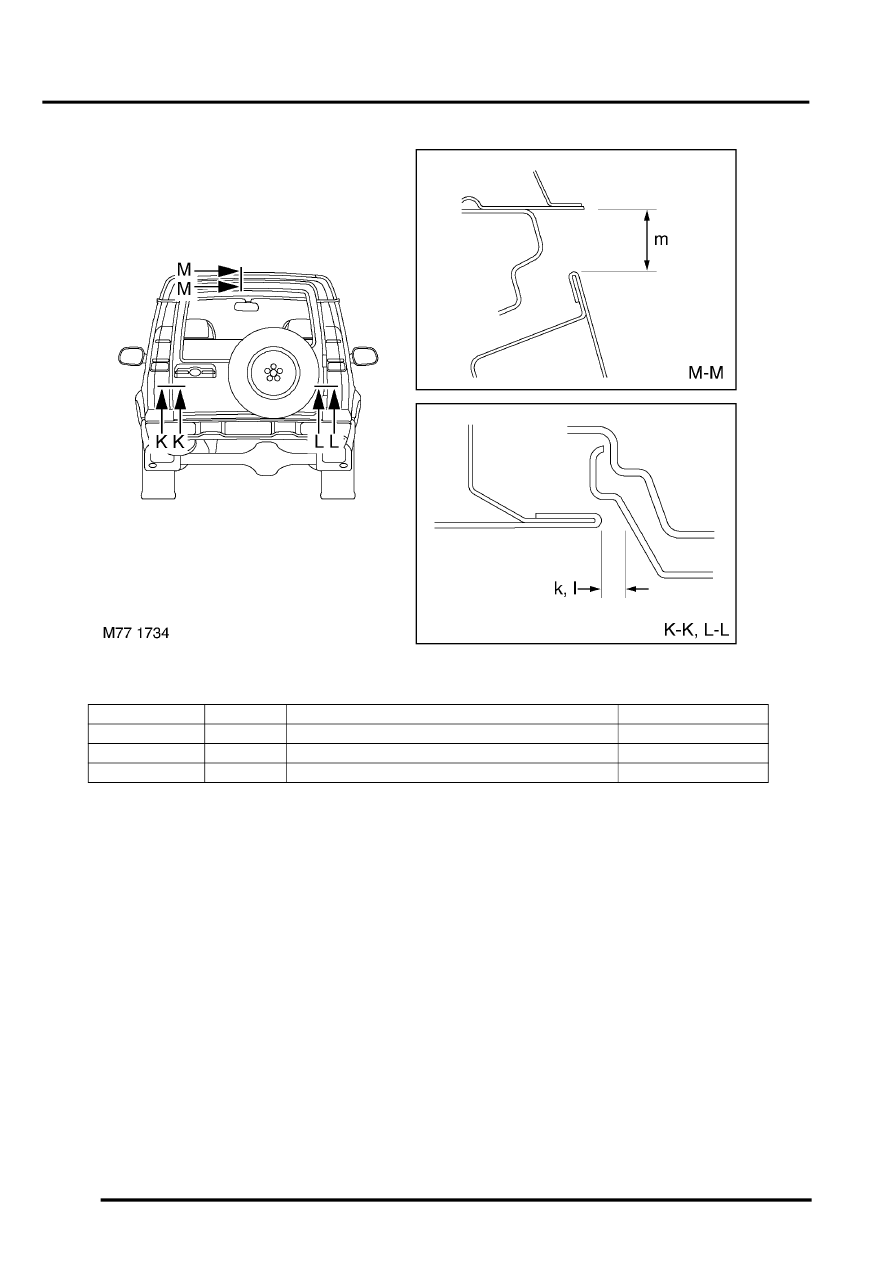

77-1-16 BODY DIMENSIONS
Rear end information
Gaps
The tolerance for gap 'k' and 'l' is
±
1.0 (0.039), and for gap 'm' is
±
2.0 (0.078).
Section
Gap
Description
Dimension
K-K
k
Taildoor to body side panel
7.0 (0.275)
L-L
l
Taildoor to body side panel
7.0 (0.275)
M-M
m
Taildoor to roof
23.0 (0.905)
