Fuel delivery system (FUEL DELIVERY SYSTEM - V8)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION › Fuel delivery system
FUEL DELIVERY SYSTEM - V8Fuel delivery system
FUEL DELIVERY SYSTEM - V8
DESCRIPTION AND OPERATION
19-2-1
FUEL DELIVERY SYSTEM - V8
DESCRIPTION AND OPERATION

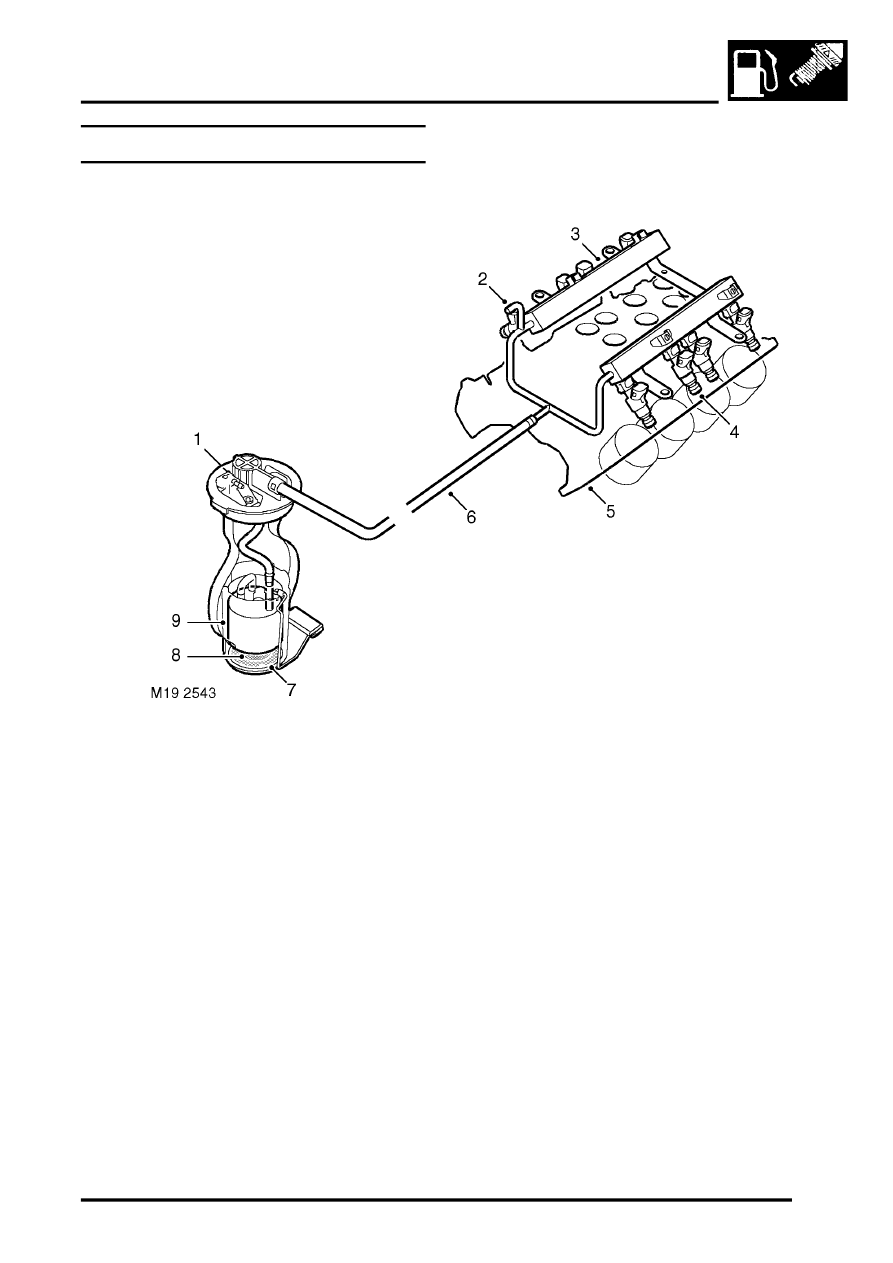

Fuel delivery system
1 Fuel pressure regulator (hidden)
2 Schraeder valve
3 Fuel rail
4 Injectors
5 Engine block
6 Fuel feed pipe
7 Coarse filter
8 Fine filter
9 Fuel pump and fuel gauge sender assembly
