SEATSElectric seat component location
SEATS
DESCRIPTION AND OPERATION
76-5-1
SEATS
DESCRIPTION AND OPERATION

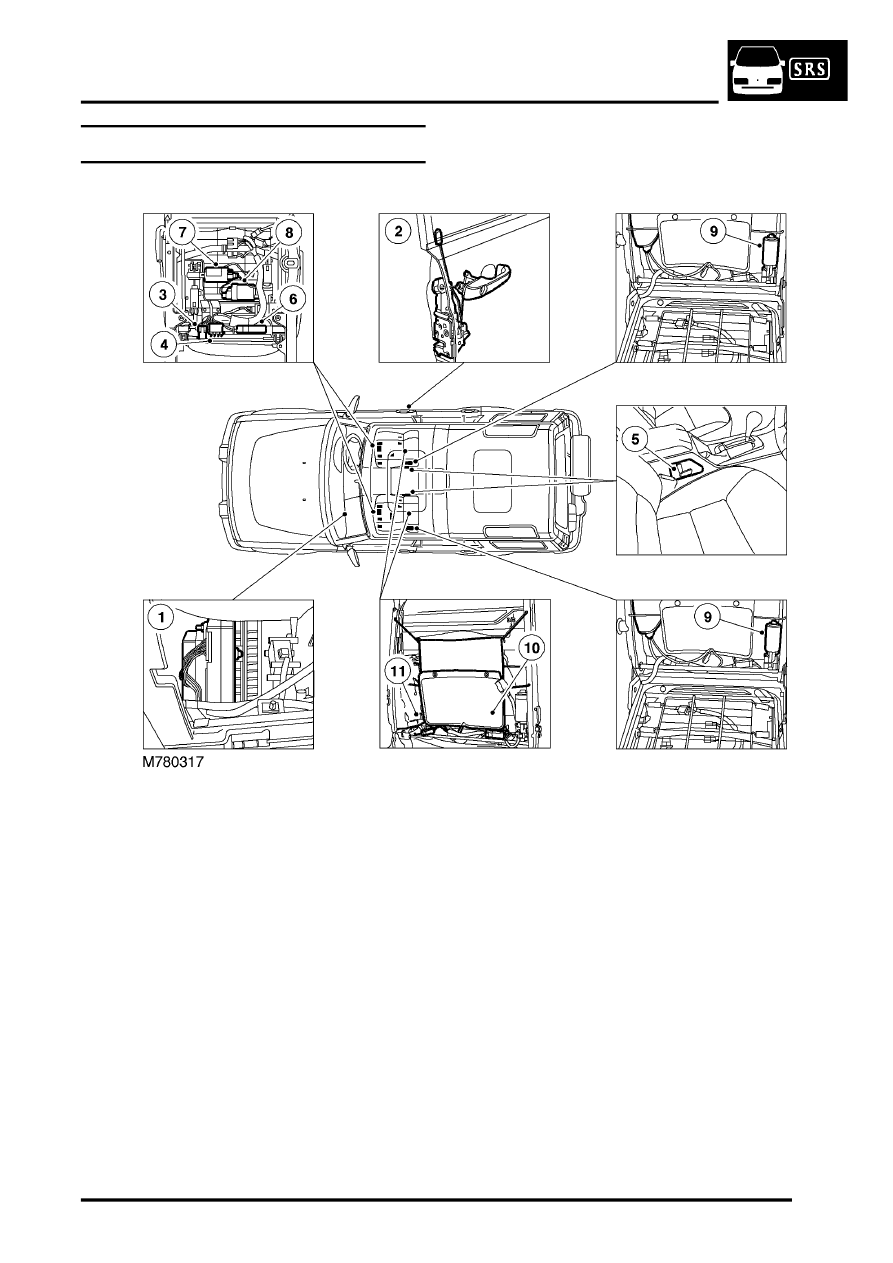

Electric seat component location
RHD shown, LHD similar
1 BCU
2 Drivers door switch
3 Power relay
4 Satellite fuse box
5 Switch pack
6 Fore/aft motor
7 Cushion front up/down motor
8 Cushion rear up/down motor
9 Squab fore/aft motor
10 Lumbar support bladder
11 Lumbar pump
