IN CAR ENTERTAINMENT
DESCRIPTION AND OPERATION 86-6-25

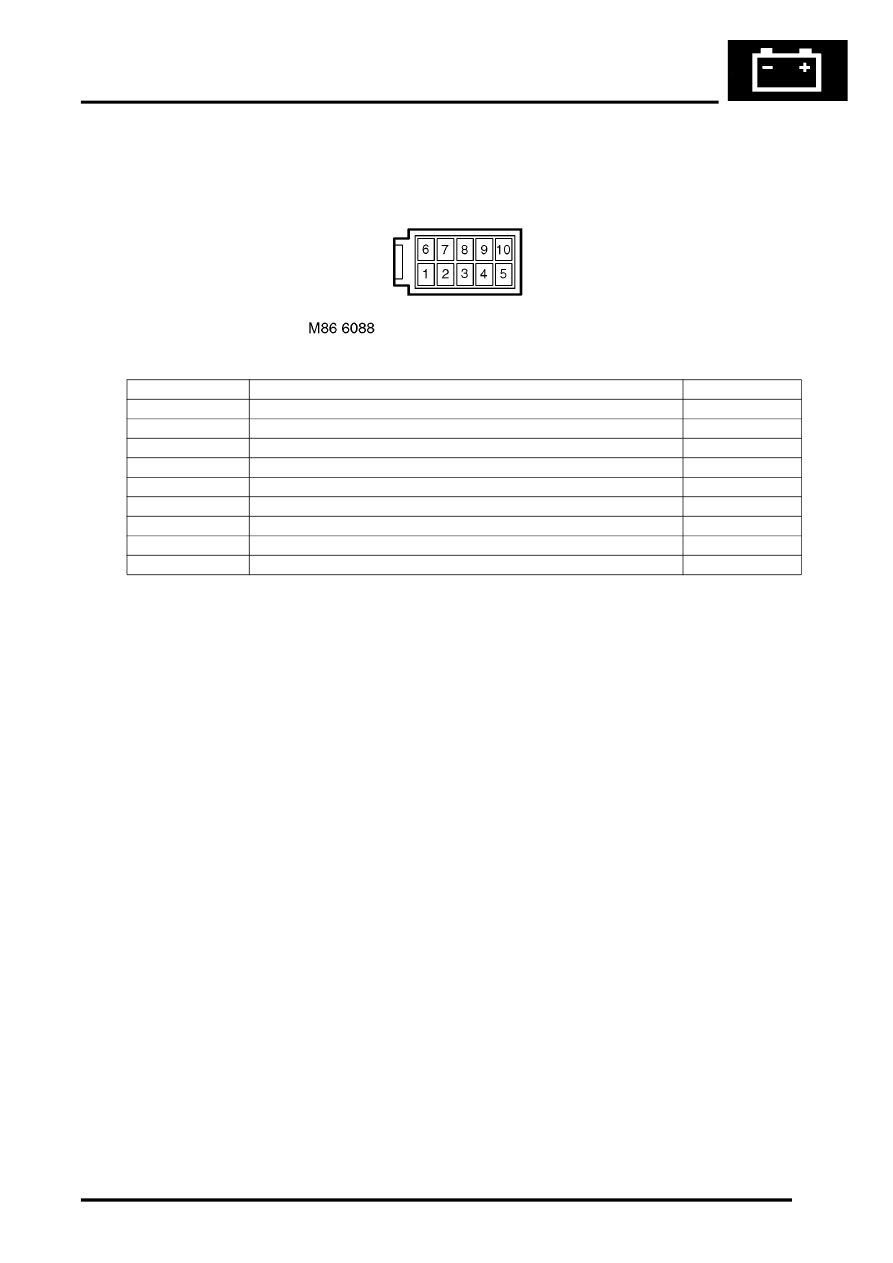

Connector C09
Connector C09 is located in the harness from the audio head unit to the CD switch.
Pin No.
Description
Input/Output
1
Audio right + from CD switch to head unit
Input
2
Audio right – from CD switch to head unit
Input
3 – 4
Not used
–
5
I Bus data connection between CD switch and head unit
Input/Output
6
Audio left + from CD switch to head unit
Input
7
Audio left – from CD switch to head unit
Input
8
Power ground from head unit to CD autochanger
Input
9
Not used
–
10
Battery power from head unit to CD autochanger
Input
