IN CAR ENTERTAINMENT (Description): DESCRIPTION AND OPERATION (page 11 of 11)

IN CAR ENTERTAINMENT

86-6-26 DESCRIPTION AND OPERATION

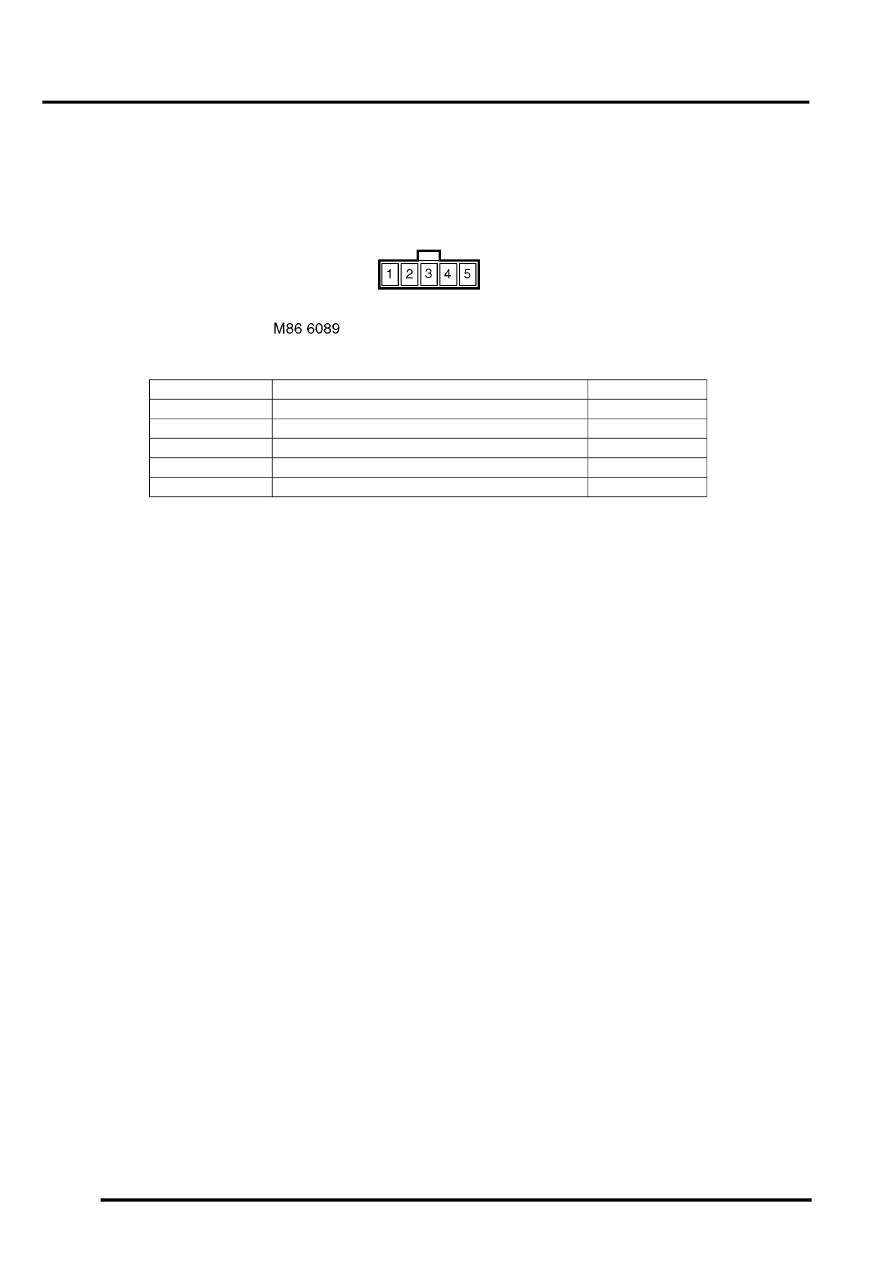

Connector C05
Connector C05 is located passenger compartment fusebox and supplies power and ground to CD switch unit.

Electrical Supply
The complete system is connected via a connection in the passenger compartment fusebox. A plug is connected to
an auxiliary socket in the fusebox and supplies the ground, accessory power and permanent battery power supplies
to the system via the CD switch and main DVD harness.

The system is connected by two fuses in the passenger compartment fusebox as follows:

l

Fuse 15 (20A) – Auxiliary power supply

l

Fuse 27 (15A) – Permanent battery supply.

CAUTION: Always replace fuses with a fuse of the correct Amperage rating.

Voltage Protection System
The DVD system has a voltage protection system to protect the vehicle battery from further loads if battery voltage is
low or to protect the DVD system if the battery voltage is high.

 If the battery voltage falls to 11 volts or below, the system will shutdown to protect the battery from further drain. A
message 'Voltage Error shutdown' will appear in the LCD monitor before the system shuts down. When the battery
voltage reaches 11.5 volts or above, the system will restart when the power button on the remote control handset is
pressed.

If the battery voltage exceeds 17 volts, the system will shutdown to a low voltage 'dormant' mode to protect the system
from excessive voltage. A message 'Voltage Error Shutdown' will be displayed in the LCD monitor before the system
shuts down. When the voltage has fallen to 16.5 volts or lower the system will restart when the power button on the
remote control is pressed.

Pin No.

Description

Input/Output

1

Main ground

Input

2

Not used

–

3

Accessory power supply

Input

4

Battery power

Input

5

Not used

–
