IN CAR ENTERTAINMENT (Description): DESCRIPTION AND OPERATION (page 9 of 11)

IN CAR ENTERTAINMENT

86-6-24 DESCRIPTION AND OPERATION

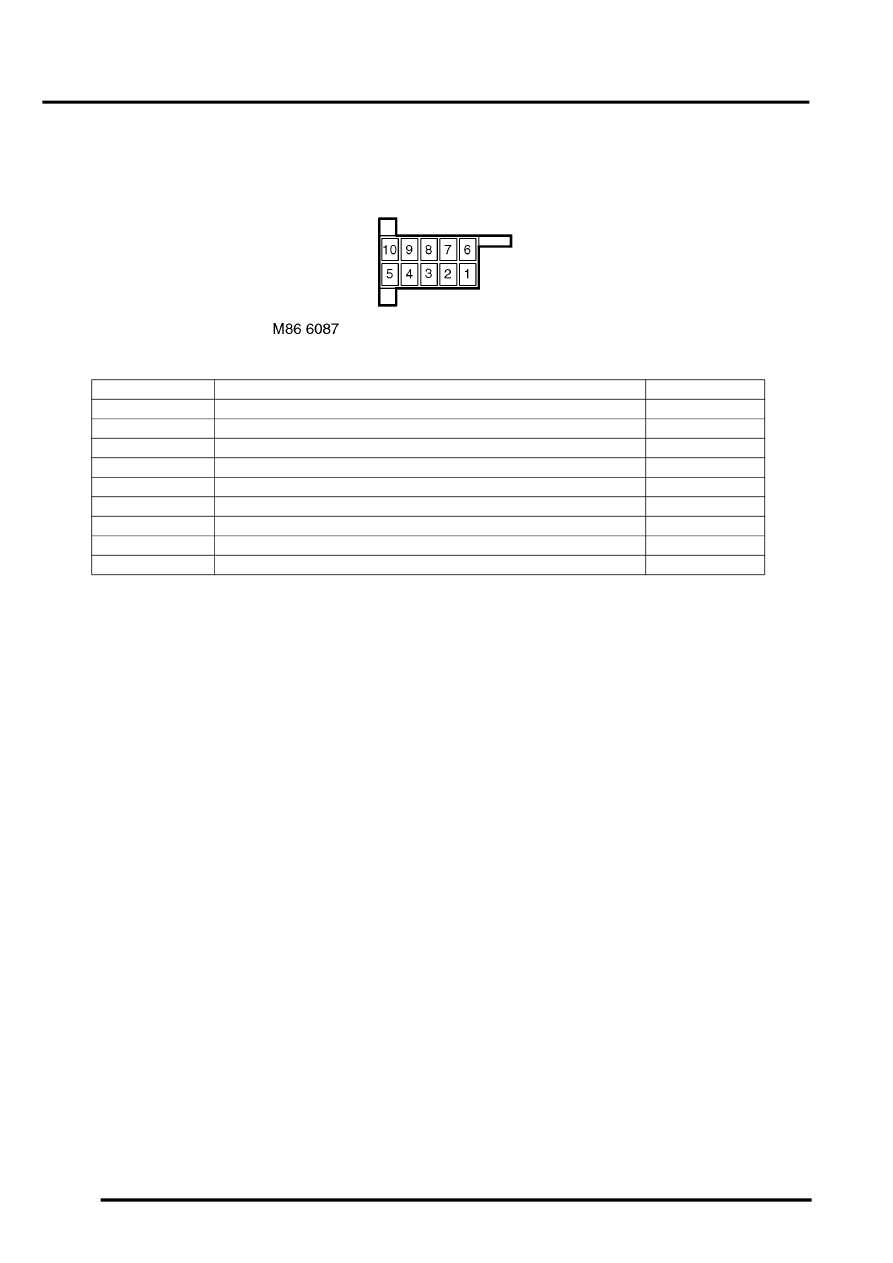

Connector C08
Connector C08 is located in the harness from the CD autochanger to the CD switch.

Pin No.

Description

Input/Output

1

Audio right + from CD autochanger to CD switch

Input

2

Audio right – from CD autochanger to CD switch

Input

3 – 4

Not used

–

5

I Bus data connection between CD autochanger and CD switch

Input/Output

6

Audio left + from CD autochanger to CD switch

Input

7

Audio left – from CD autochanger to CD switch

Input

8

Power ground from head unit to CD autochanger

Input

9

Not used

–

10

Battery power from head unit to CD autochanger

Input
