IN CAR ENTERTAINMENT (Description): DESCRIPTION AND OPERATION (page 7 of 11)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION
IN CAR ENTERTAINMENT
86-6-22 DESCRIPTION AND OPERATION

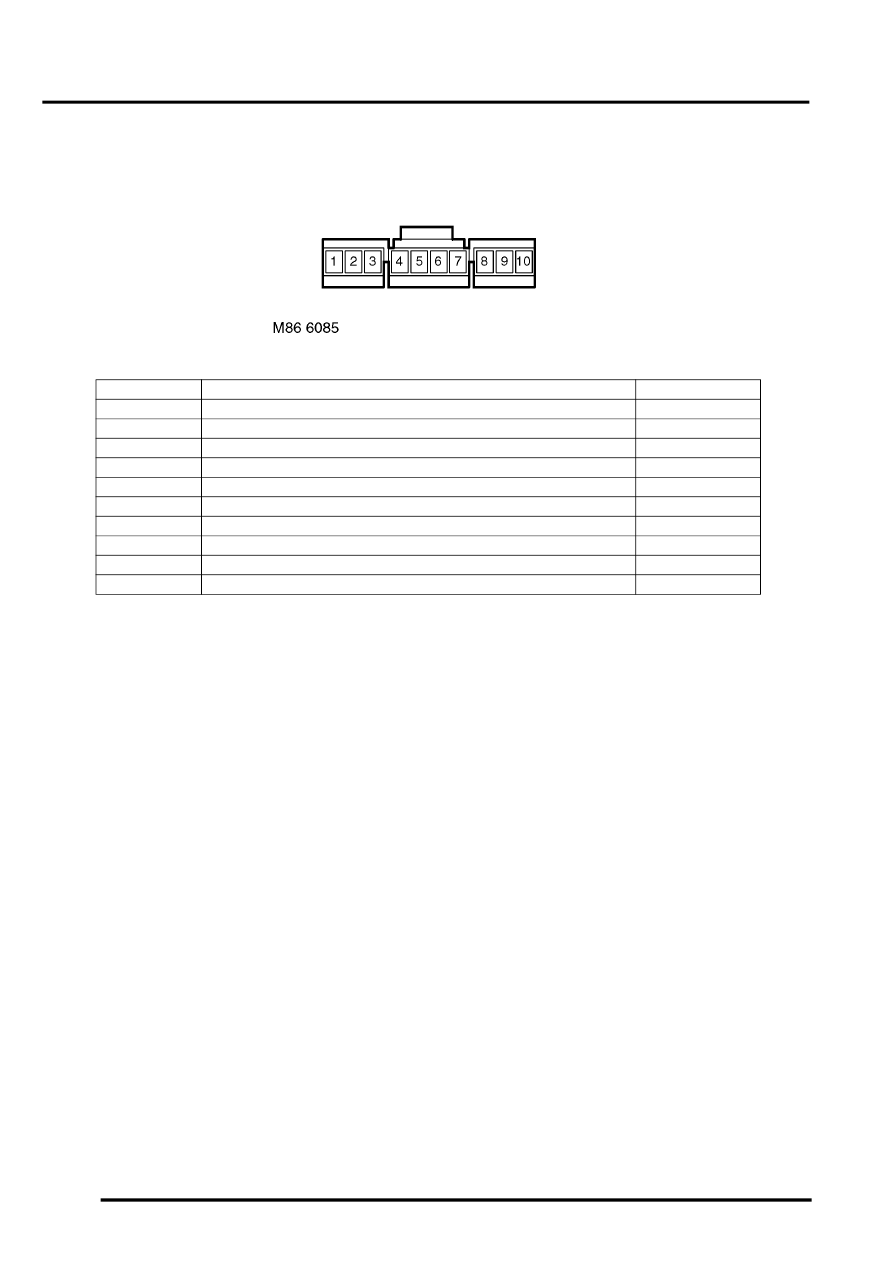

Connector C04
Connector C04 is located on the CD switch and transmits signals between the CD switch and the overhead console.
Pin No.
Description
Input/Output
1
Shield ground
Input
2
Audio left from console to CD switch
Input
3
Audio return from console to CD switch
Input
4
Audio right from console to CD switch
Input
5
Vehicle data 5 – Connected from console to CD switch
Input/Output
6
Vehicle data 1 – Connected between console and CD switch
Input/Output
7
Vehicle data 6 – Connected between console and CD switch
Input/Output
8
Accessory power from CD switch to console
Input 12V
9
Battery power from CD switch to console
Input 12V
10
Power ground from CD switch to console
Input
