IN CAR ENTERTAINMENT

DESCRIPTION AND OPERATION 86-6-21

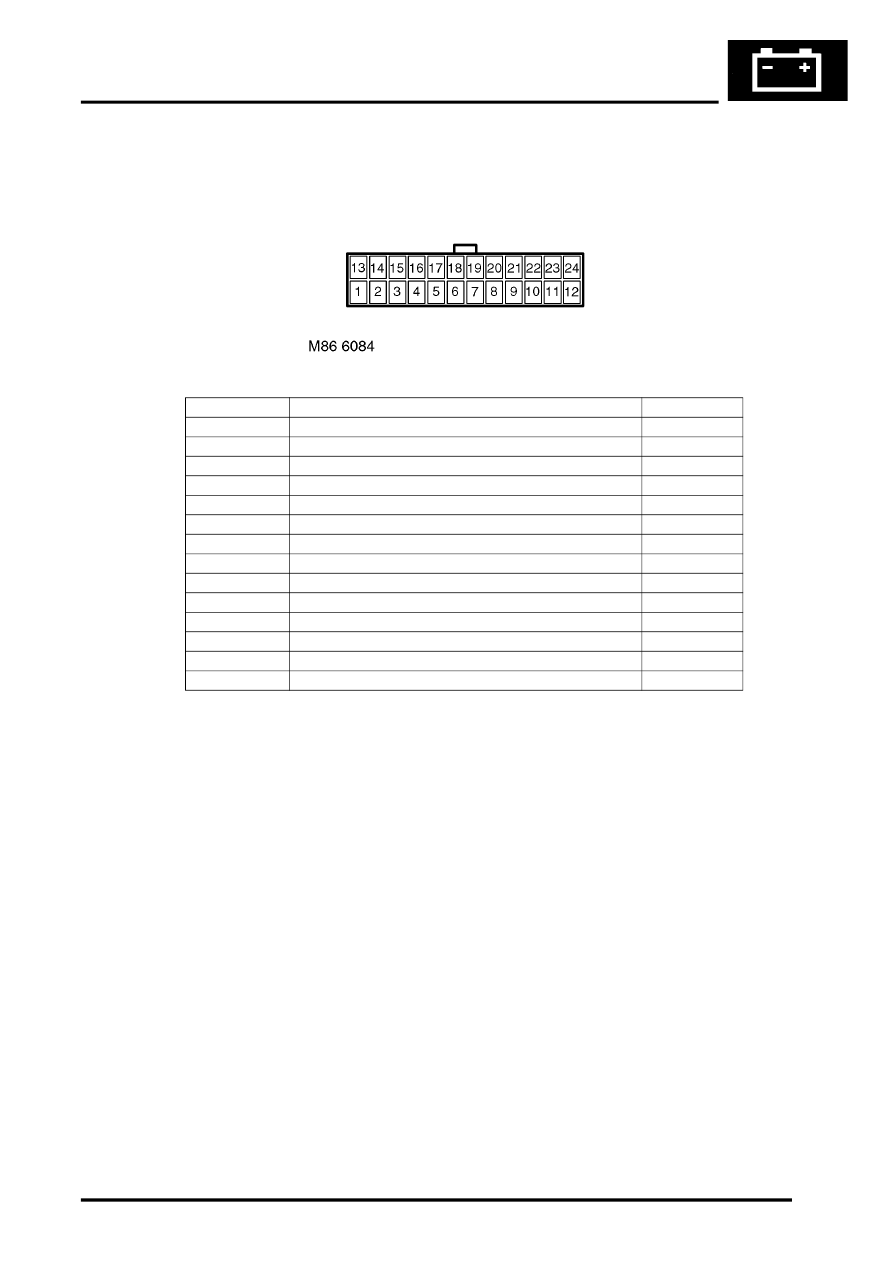

Connector C01
Connector C01 is located on the overhead console and transmits signals between the overhead console and the CD
switch.

Pin No.

Description

Input/Output

1

Shield ground

Input

2

Audio Left from console to CD switch

Output

3

Audio return from console to CD switch

Output

4

Audio right from console to CD switch

Output

10

Signal ground

Input

11

Vehicle data 1 from console to CD switch

Input/Output

12 – 13

Not used

–

14

Vehicle data 4 – Connected to pin 10

Input

15

Vehicle data 5 – Connected to pin 10

Input

16

Vehicle data 6 – Data from console to CD switch

Input/Output

17 – 21

Not used

–

22

Accessory power from CD switch to console

Input/Output

23

Battery power from CD switch to console

Input

24

Power ground from CD switch to console

Input
