Differential - assembly

FRONT AXLE

REPAIRS

54-5

REPAIRS

Differential - assembly

$% 54.10.01

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove front road wheels.
3. Drain oil from differential.

 +

 MAINTENANCE, PROCEDURES,

Front and rear axle.

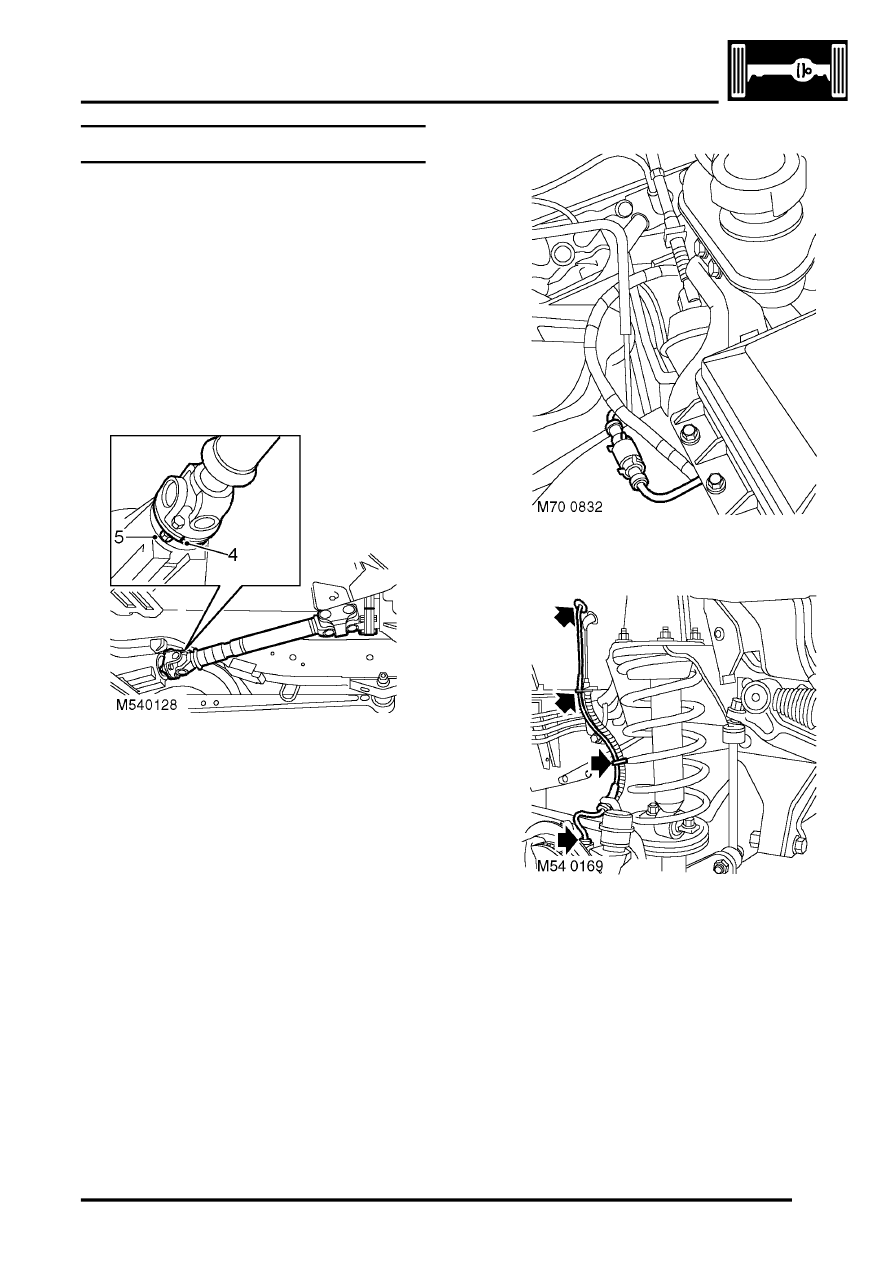

4. If same components to be refitted, reference

mark propeller shaft and mating components.

5. Remove 4 nuts and bolts securing propeller

shaft to differential. Release propeller shaft and
tie aside.

6. Remove LH and RH front brake discs.

 +

 BRAKES, REPAIRS, Brake disc -

front.

7. Disconnect each ABS sensor multiplug.

8. Release each harness from brake hose and

hose bracket.
