TRANSFER BOX - LT230SE

41-52

OVERHAUL

Inspect

1. Check mating surfaces of cross shaft and

housing bore for wear.

2. Check core plug in housing for signs of leakage

or corrosion ; apply sealant, Part No. STC 3811
to replacement plug.

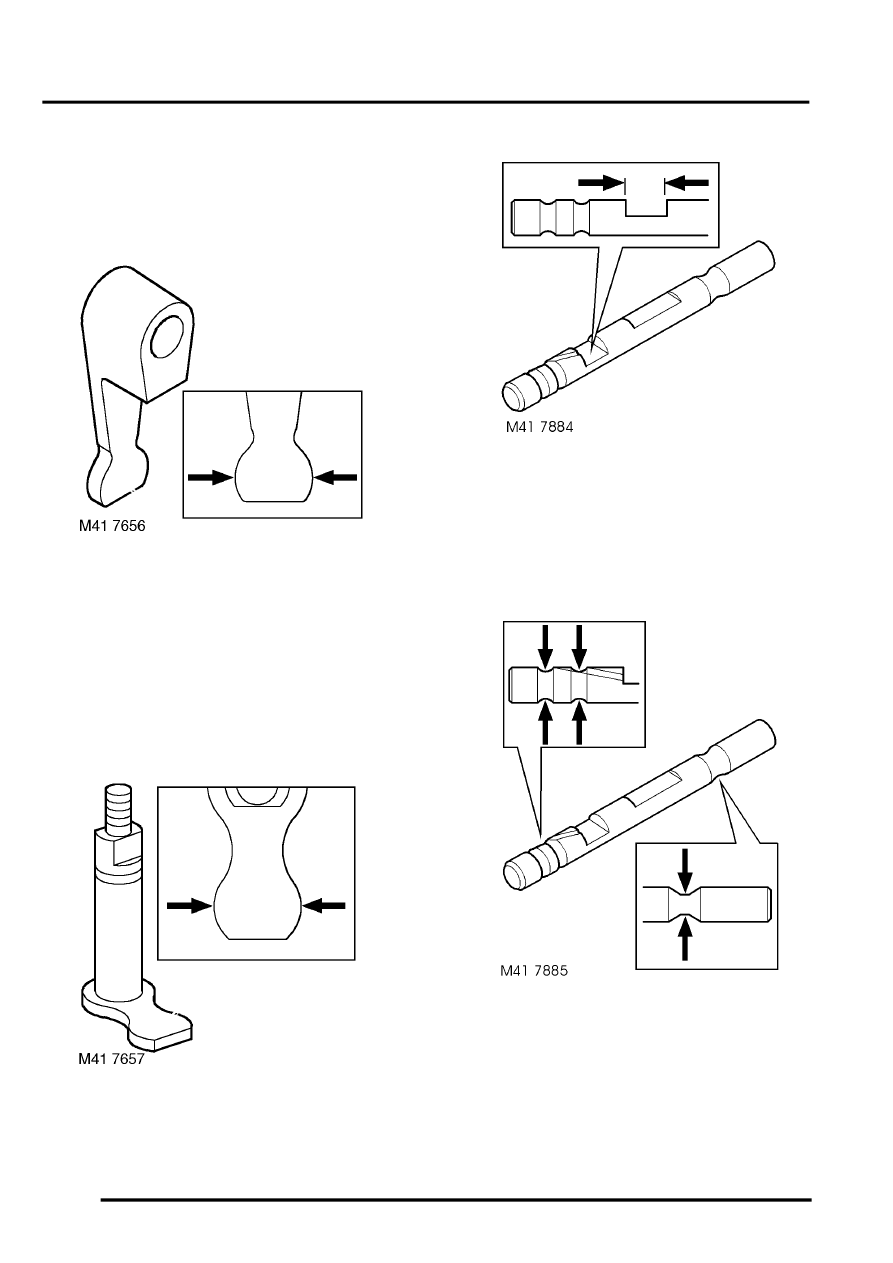

3. Measuring across widest portion of finger,

check high/low selector finger for wear.

l

Finger width = 15.90 to 15.95 mm (0.625 to
0.627 in).

4. Check bearing track recesses in housing for

damage, rectify or replace housing as
necessary.

5.  If fitted:  Carry out inspection of differential

lock  components using following procedures.

6. Check differential lock selector shaft and

housing bore for wear.

7. Measuring across the widest portion, check

differential lock finger for wear.

l

Finger width = 15.90 to 15.95 mm (0.625 to
0.627 in).

Note: Differential lock selector shaft fitted to 03

Model Year onwards illustrated.

8. Check differential lock selector finger groove in

selector shaft.

l

Groove width = 16.0 to 16.1 mm (0.63 to
0.64 in).

 Differential lock selector shaft fitted to 03 Model Year

onwards illustrated.

9. Check detent grooves in differential lock

selector shaft for wear.

10. Check differential lock detent ball for flat spots

and check detent spring for distortion.
