Power steering pressure check - V8 LHD models

STEERING

57-22

ADJUSTMENTS

38. Fit new seal, connect PAS cooler pipe and

tighten union nut to 24 Nm (18 lbf ft).

39. LHD only:  Fit turbocharger intercooler feed

pipe and vacuum connection. Fit new seal to air
cleaner. Connect air intake hose and secure
clips. Connect multiplug to MAF sensor.

40. Clean chassis and surrounding area.
41. Fit underbelly panel.

 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

42. Remove adaptor and hose set from tool LRT-

57-041.

43. Check PAS fluid level.
44. Connect battery earth lead.

Power steering pressure check - V8 LHD
models

$% 57.90.10.01

Check

1. Disconnect battery earth lead.
2. Syphon PAS fluid from reservoir.
3. Raise front of vehicle and support on stands.
4. Turn steering on LH lock.

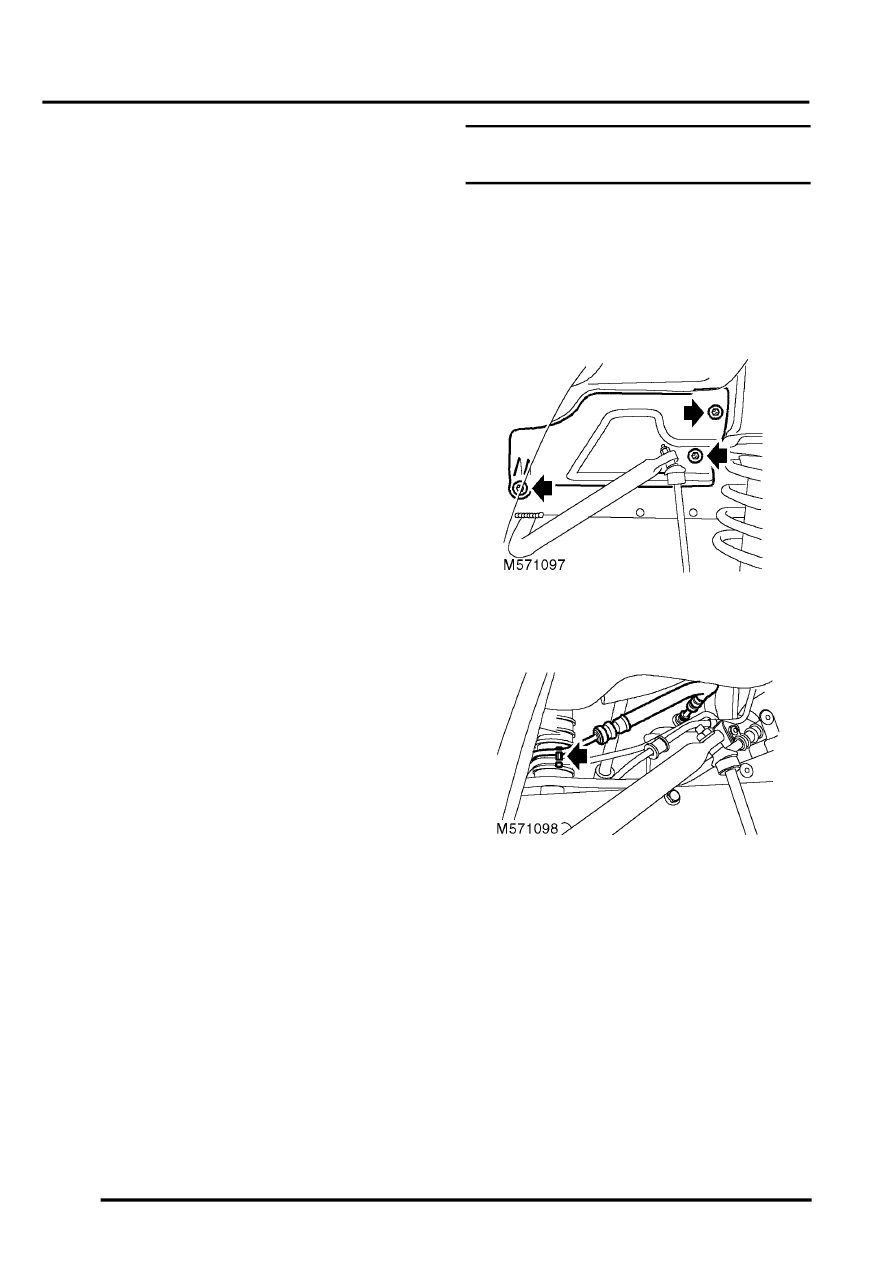

5. Remove 3 screws securing LH splash shield

and remove shield.

6. Release clip securing PAS pipes.
7. Position absorbent cloth to catch spillage.
8. Position container to collect PAS fluid spillage.
