Rotary coupler

RESTRAINT SYSTEMS

REPAIRS

75-29

Rotary coupler

$% 76.74.20

WARNING: It is imperative that before any work
is undertaken on the SRS system the appropriate
information is read thoroughly.

WARNING: Always disconnect both battery leads
before beginning work on the SRS system.
Disconnect the negative battery lead first. Never
reverse connect the battery.

Remove

1. Remove the key from the starter switch.

Disconnect both battery leads, negative lead
first. Wait ten minutes before starting work.

2. Remove steering wheel.

 +

 STEERING, REPAIRS, Steering

wheel.

3. Remove steering column nacelle.

 +

 STEERING, REPAIRS, Nacelle -

steering column.

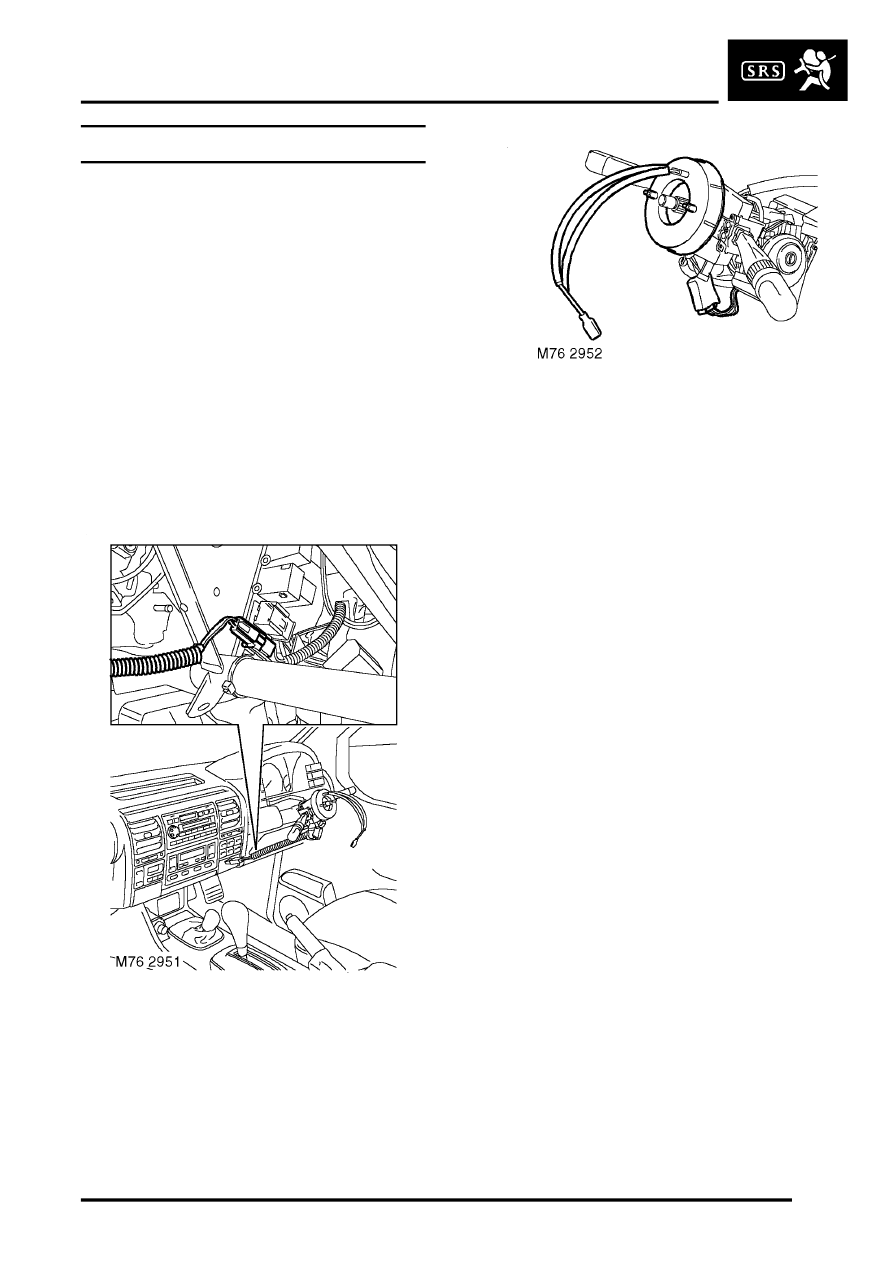

4. Release rotary coupler multiplug from bracket

and disconnect from harness.

5. Disconnect rotary coupler multiplug from

harness.

6. Remove rotary coupler.

Refit

1. Fit rotary coupler to steering column and

connect multiplug to harness.

2. Connect rotary coupler  multiplug to harness

and secure to bracket.

3. Fit steering column nacelle.

 +

 STEERING, REPAIRS, Nacelle -

steering column.

4. Fit steering wheel.

 +

 STEERING, REPAIRS, Steering

wheel.
