Rear suspension component layout (vehicles without SLS)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION › Rear suspension component layout (vehicles without SLS)
REAR SUSPENSIONRear suspension component layout (vehicles without SLS)
REAR SUSPENSION
DESCRIPTION AND OPERATION
64-3

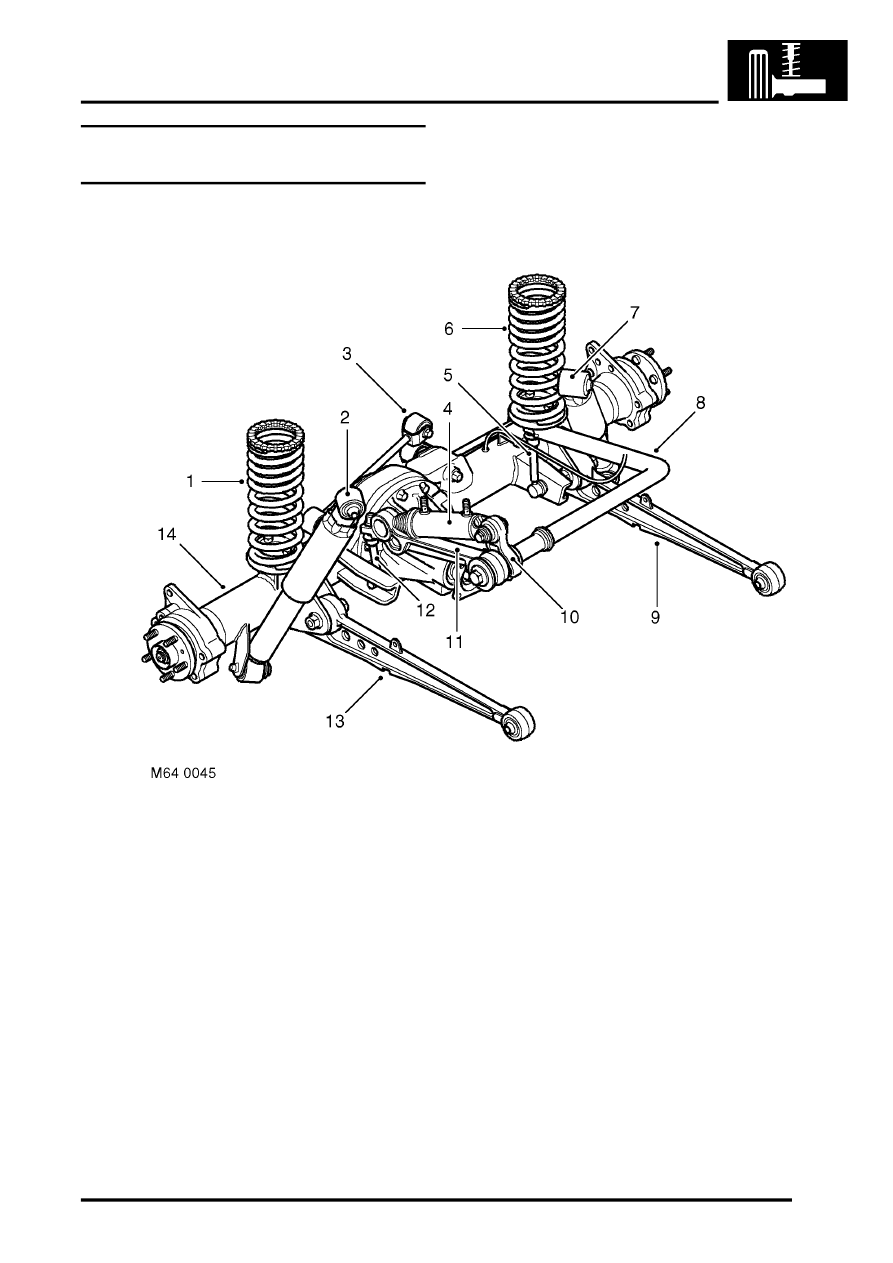

Rear suspension component layout
(vehicles without SLS)
1 Coil spring RH
2 Damper RH
3 Watts linkage
4 ACE actuator (if fitted)
5 Anti-roll bar link LH
6 Coil spring LH
7 Damper LH
8 Torsion/Anti-roll bar
9 Radius arm LH
10 ACE short arm (if fitted)
11 ACE long arm (if fitted)
12 Anti-roll bar link RH
13 Radius arm RH
14 Rear axle
