Headlamp - from 03MY

LIGHTING

REPAIRS

86-2-5

Headlamp - from 03MY

$% 86.40.49

Remove

1. Remove front grille.

 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - from 03MY.

2. Protect bumper.

CAUTION: Always protect paintwork when
removing or refitting any body trims or
bumpers.

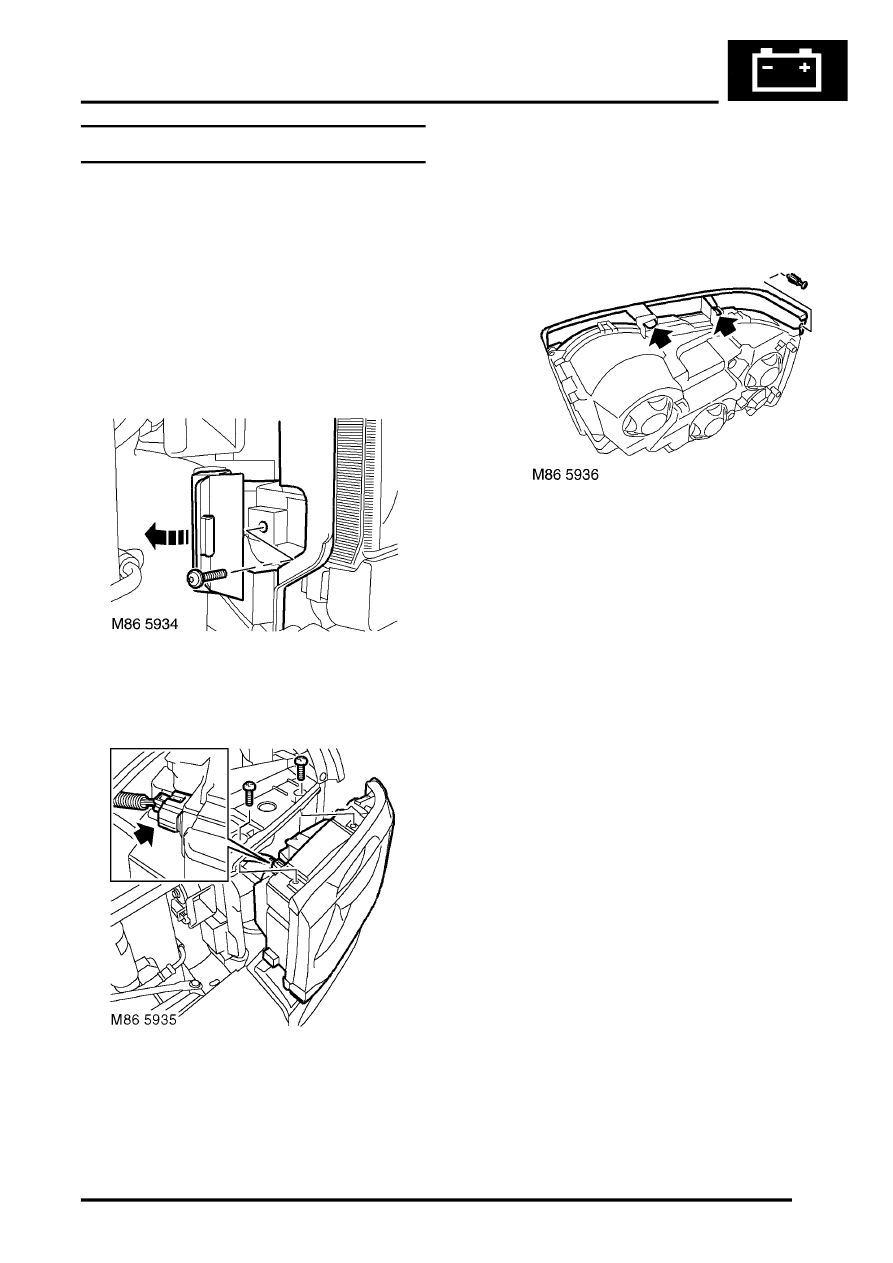

3. Open air deflector access panel and remove

Torx screw securing headlamp assembly to the
front panel.

4. Remove 2 screws securing headlamp

assembly to the bonnet locking platform.

5. Release headlamp assembly from wing,

disconnect multiplug and remove the headlamp
assembly.

NOTE: Do not carry out further dismantling if
component is removed for access only.

6. Remove scrivet securing headlamp finisher to

headlamp assembly, release and remove the
finisher.

Refit

1. Fit and secure headlamp finisher to the

headlamp assembly.

2. Position headlamp assembly to front panel and

connect the multiplug.

3. Secure headlamp assembly to the front wing.
4. Fit and tighten screws securing headlamp

assembly to the bonnet locking platform.

5. Fit and tighten Torx screw securing headlamp

assembly to the front panel. Close the air
deflector access panel.

6. Remove bumper protection.
7. Fit front grille.

 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - from 03MY.

8. Check headlamp alignment - adjust if

necessary.


 +

 LIGHTING, ADJUSTMENTS,

Headlamps beam alignment - from 03MY.
