CHASSIS AND BODY DIMENSIONS (page 2 of 4)
- Make
- Land Rover
- Model
- Discovery II
CHASSIS AND BODY DIMENSIONS · page 2 of 4
CHASSIS AND BODY DIMENSIONS

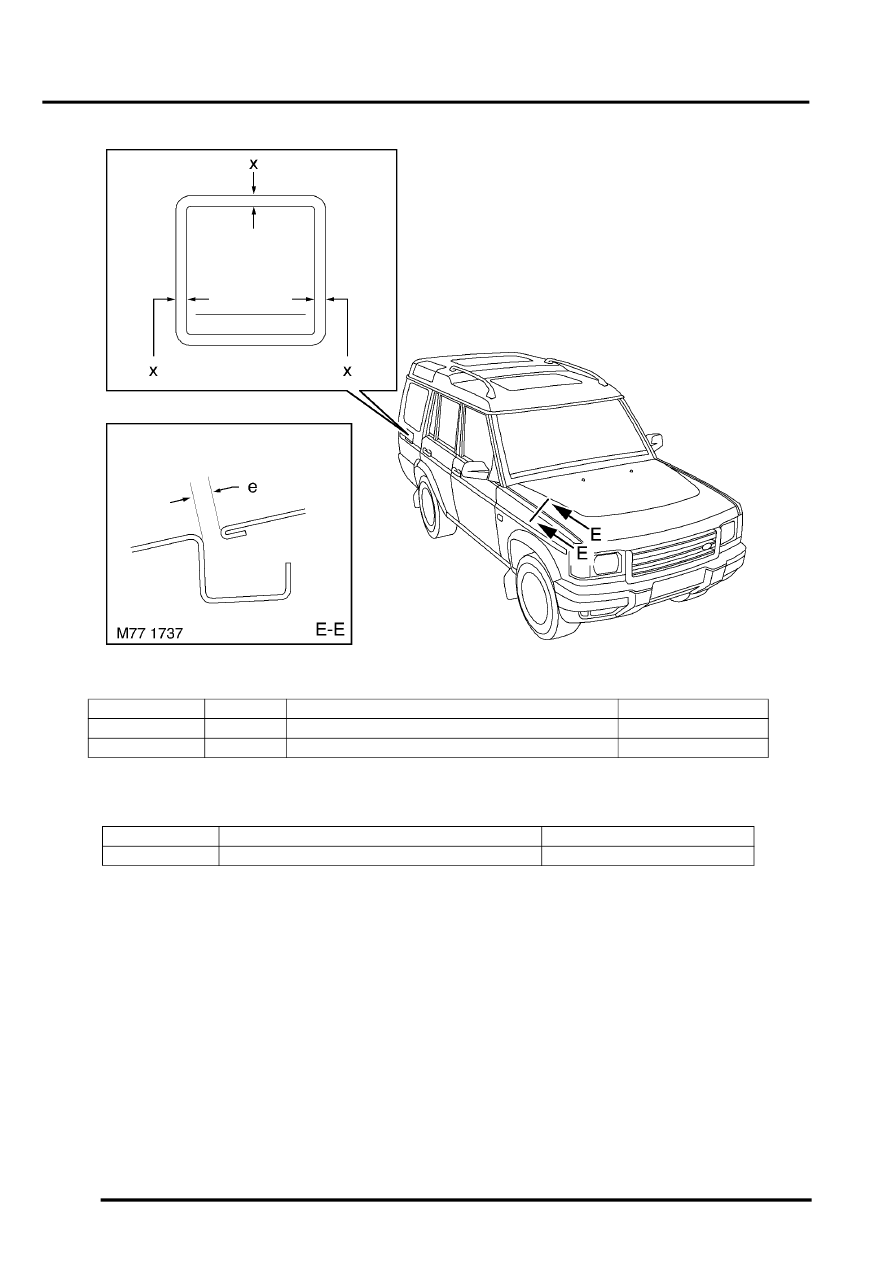

77-1-14 BODY DIMENSIONS
Front end/side information
Gaps
The tolerance for gap 'e' is
±
1.0 (0.039), and for gap 'x' is
±
0.5 (0.019).
Profile
Section
Gap
Description
Dimension
E-E
e
Bonnet to wing
6.0 (0.236)
x
Fuel filler lid to body side panel
3.0 (0.118)
Section
Description
Dimension
E-E
Profile of bonnet to wing
+1.0 (0.039) -0.0
