- BODY DIMENSIONS › Gaps and profiles
CHASSIS AND BODY DIMENSIONSGaps and profiles
CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-13
Gaps and profiles
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).
Front end information
Gaps
The tolerance for the above figures is
±
1.0 (0.039).
Section
Gap
Description
Dimension
A-A
a

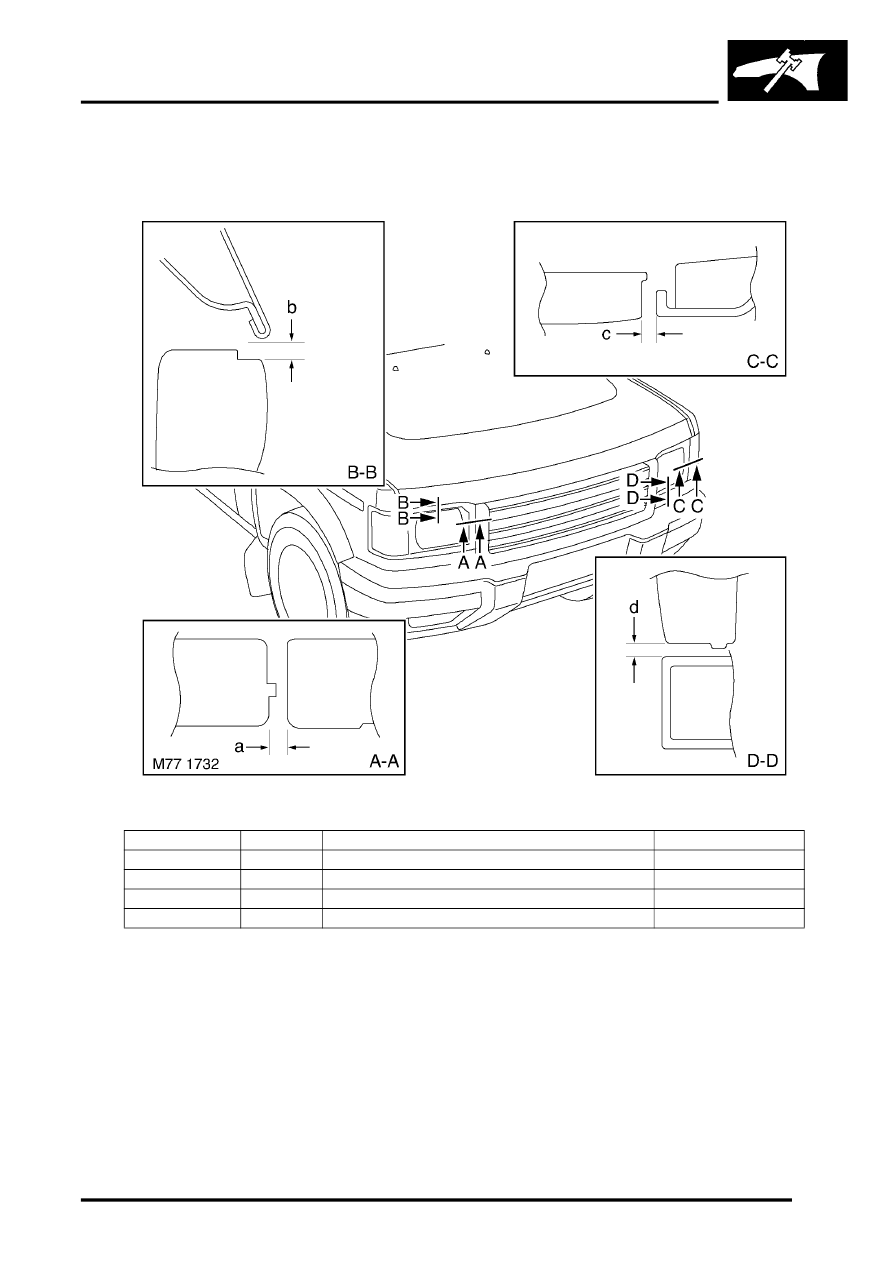

Headlamp to grille
9.5 (0.374)
B-B
b
Headlamp to bonnet
14.0 (0.551)
C-C
c
Headlamp to indicator lamp
6.0 (0.236)
D-D
d
Headlamp to headlamp surround panel
9.5 (0.374)
