Brake system hydraulic component layout (BRAKES)

Make

Land Rover

Model

Discovery II

Section

DESCRIPTION AND OPERATION › Brake system hydraulic component layout

BRAKESBrake system hydraulic component layout

BRAKES

70-4

DESCRIPTION AND OPERATION

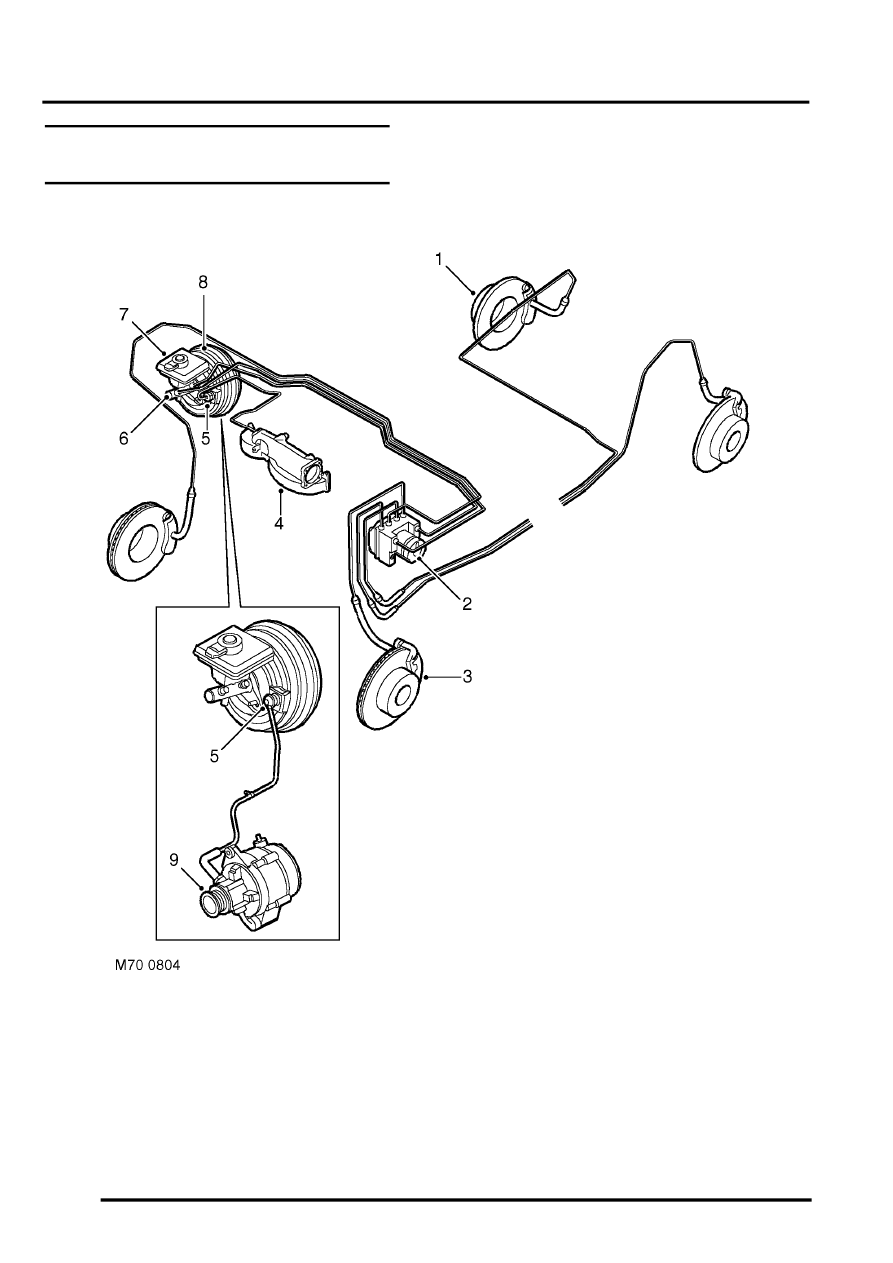

Brake system hydraulic component
layout

RH drive shown, LH drive similar

1 Rear brake
2 ABS modulator
3 Front brake
4 Inlet manifold plenum (V8 models)
5 Non return valve

6 Master cylinder assembly
7 Brake fluid reservoir
8 Brake servo assembly
9 Vacuum pump (diesel models)

87 Brakes
