BODY CONTROL UNIT
86-3-4
DESCRIPTION AND OPERATION

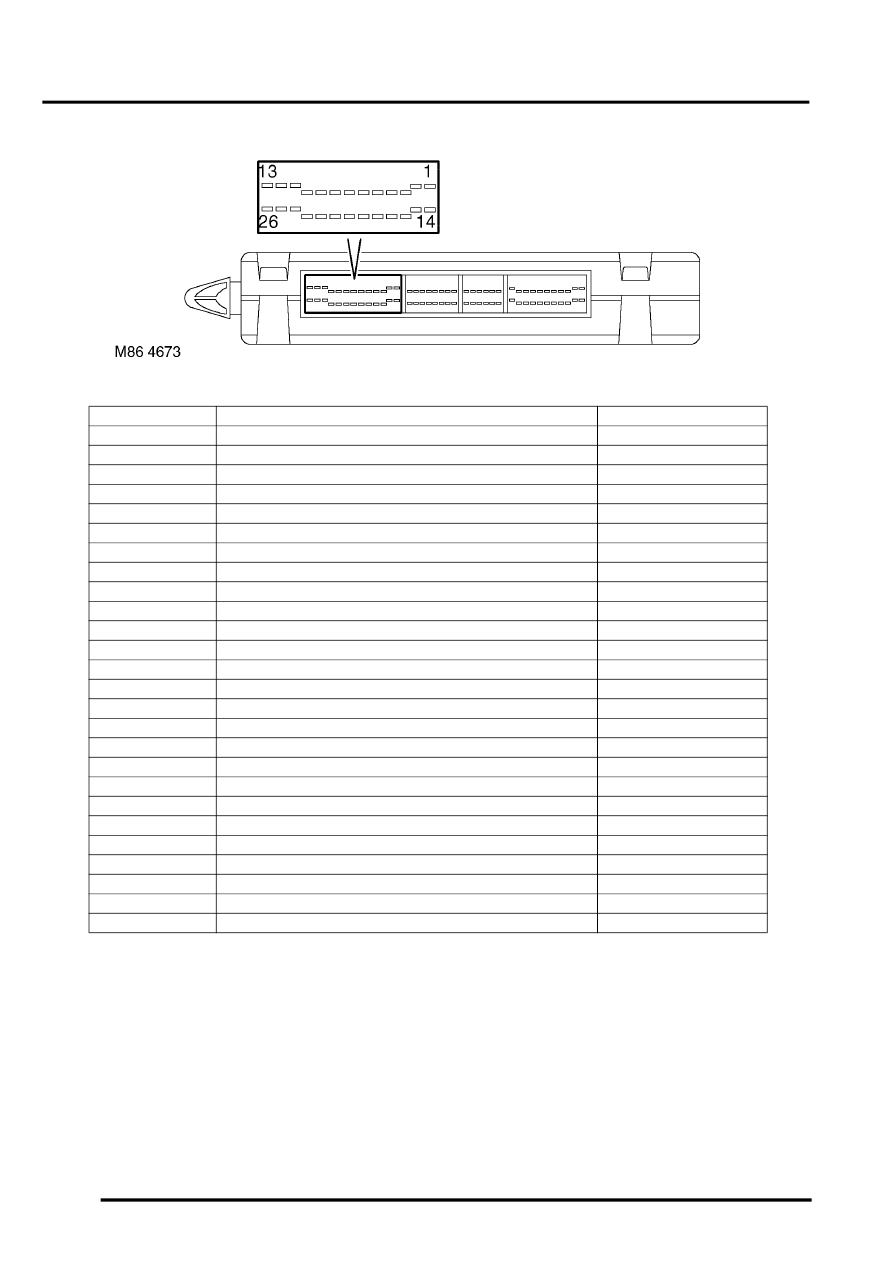

C0660 connector pin details
Pin No.
Description
Input/Output
1
Ignition power supply
Input
2
Right front window - down
Input
3
Auxiliary power supply
Input
4
Passenger or rear door open
Input
5
Driver's door key lock
Input
6
RH indicator selected
Input
7
Front fog lamps selected
Input
8
Gear position feedback 'R'
Output
9
Gear position feedback 'P'
Output
10
SLS too high (audible warning)
Input
11
Earth
-
12
Vehicle raise/lower request
Output
13
Battery power supply
Input
14
Heated front screen selected
Input
15
Bonnet open
Input
16
CDL doors lock
Input
17
Driver's door open
Input
18
Left front window up
Input
19
Right front window up
Input
20
Rear washer pump
Input
21
Front intermittent wiper switch
Input
22
Gear position feedback '1'
Output
23
Gear position feedback '2'
Output
24
Gear position feedback '3'
Output
25
Gear position feedback 'D'
Output
26
Gear position feedback 'N'
Output
