AUTOMATIC GEARBOX - ZF4HP22 - 24 (Description): DESCRIPTION AND OPERATION (page 6 of 13)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION
AUTOMATIC GEARBOX - ZF4HP22 - 24Description · page 6 of 13
AUTOMATIC GEARBOX - ZF4HP22 - 24
DESCRIPTION AND OPERATION
44-9

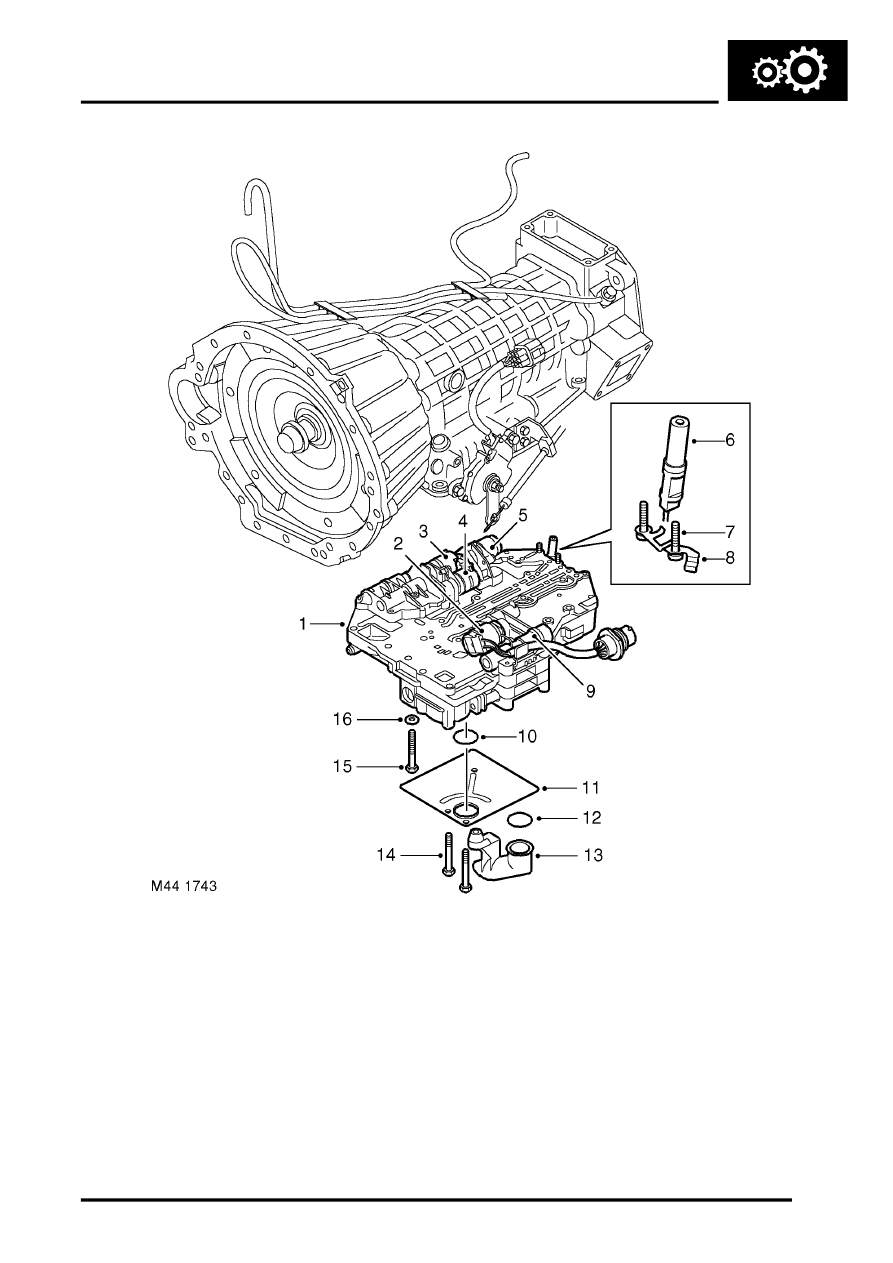

Valve block
1 Valve block
2 Pressure regulating solenoid valve (MV 4)
3 Shift control solenoid valve (MV 2)
4 Shift control solenoid valve (MV 1)
5 Lock-up solenoid valve (MV 3)
6 Output shaft speed sensor
7 Bolt
8 Sensor retaining clip
9 Manual valve
10 'O' ring
11 Filter
12 'O' ring
13 Suction pipe
14 Bolt
15 Bolt
16 Washer
