AUTOMATIC GEARBOX - ZF4HP22 - 24 (Description): DESCRIPTION AND OPERATION (page 3 of 13)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION
AUTOMATIC GEARBOX - ZF4HP22 - 24Description · page 3 of 13
AUTOMATIC GEARBOX - ZF4HP22 - 24
44-6
DESCRIPTION AND OPERATION

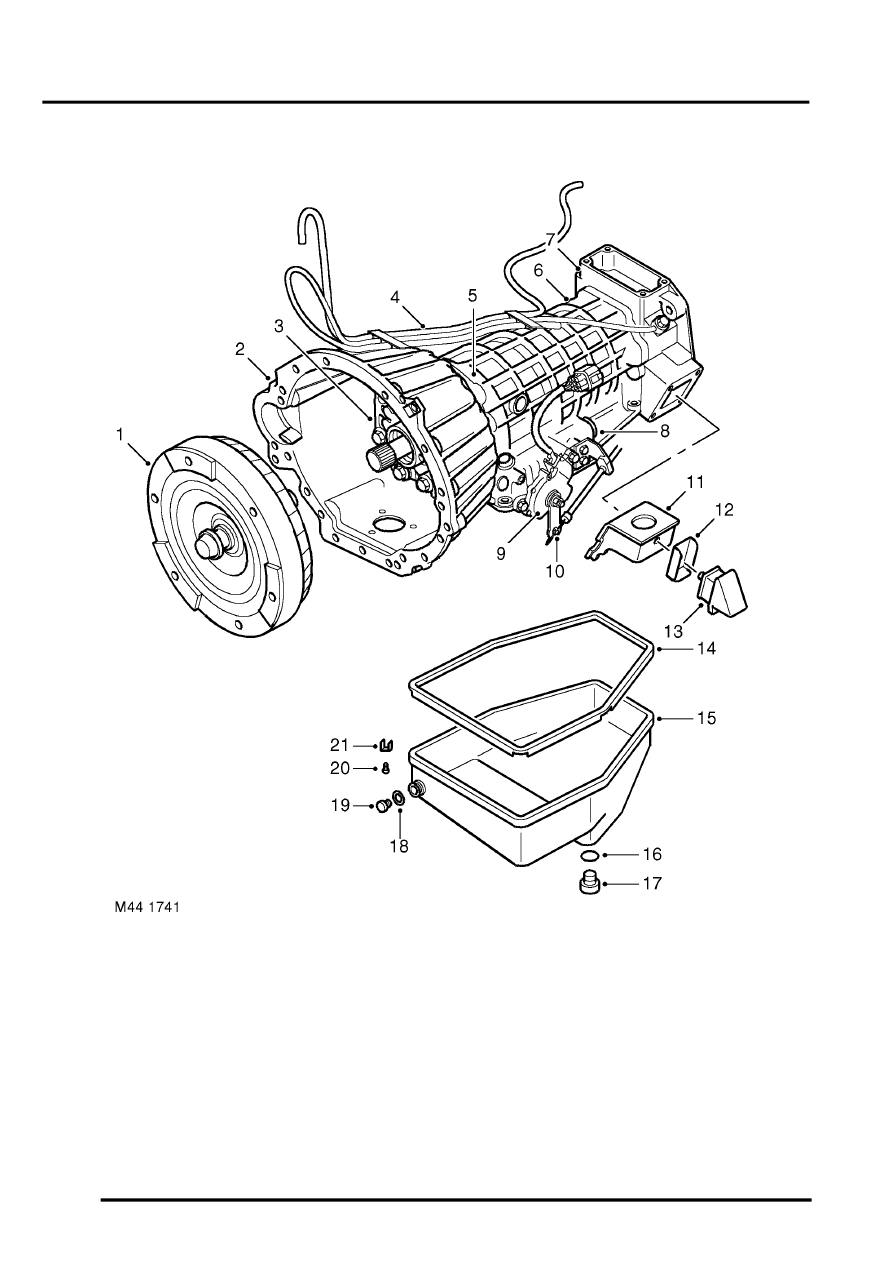

Gearbox
Diesel gearbox shown, V8 gearbox similar
1 Torque converter
2 Torque converter housing
3 Fluid pump
4 Breather tube
5 Intermediate plate
6 Gearbox housing
7 Rear extension housing
8 Electrical connector
9 Gear position switch
10 Selector lever
11 Mounting bracket
12 Heat shield
13 Rubber mounting
14 Gasket
15 Sump
16 'O' ring seal
17 Drain plug
18 'O' ring seal
19 Filler/level plug
20 Bolt
21 Clamp
