AIR CONDITIONINGRear A/C refrigerant system component layout
AIR CONDITIONING
DESCRIPTION AND OPERATION
82-21
DESCRIPTION AND OPERATION

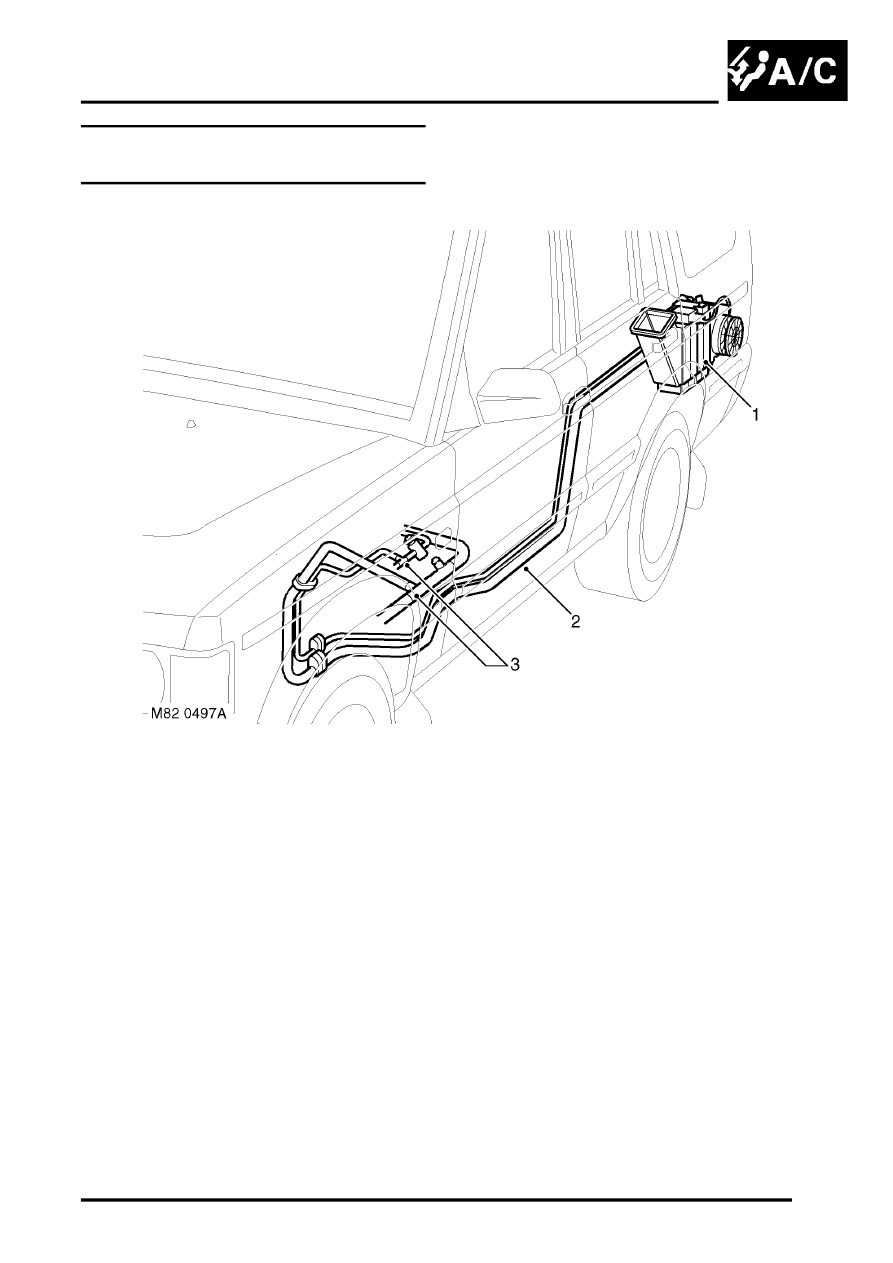

Rear A/C refrigerant system component
layout
1 Rear evaporator/blower assembly
2 Refrigerant lines
3 Connections to front A/C system
