A/C control system component layout (AIR CONDITIONING)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION › A/C control system component layout
AIR CONDITIONINGA/C control system component layout
AIR CONDITIONING
82-2
DESCRIPTION AND OPERATION
A/C control system component layout

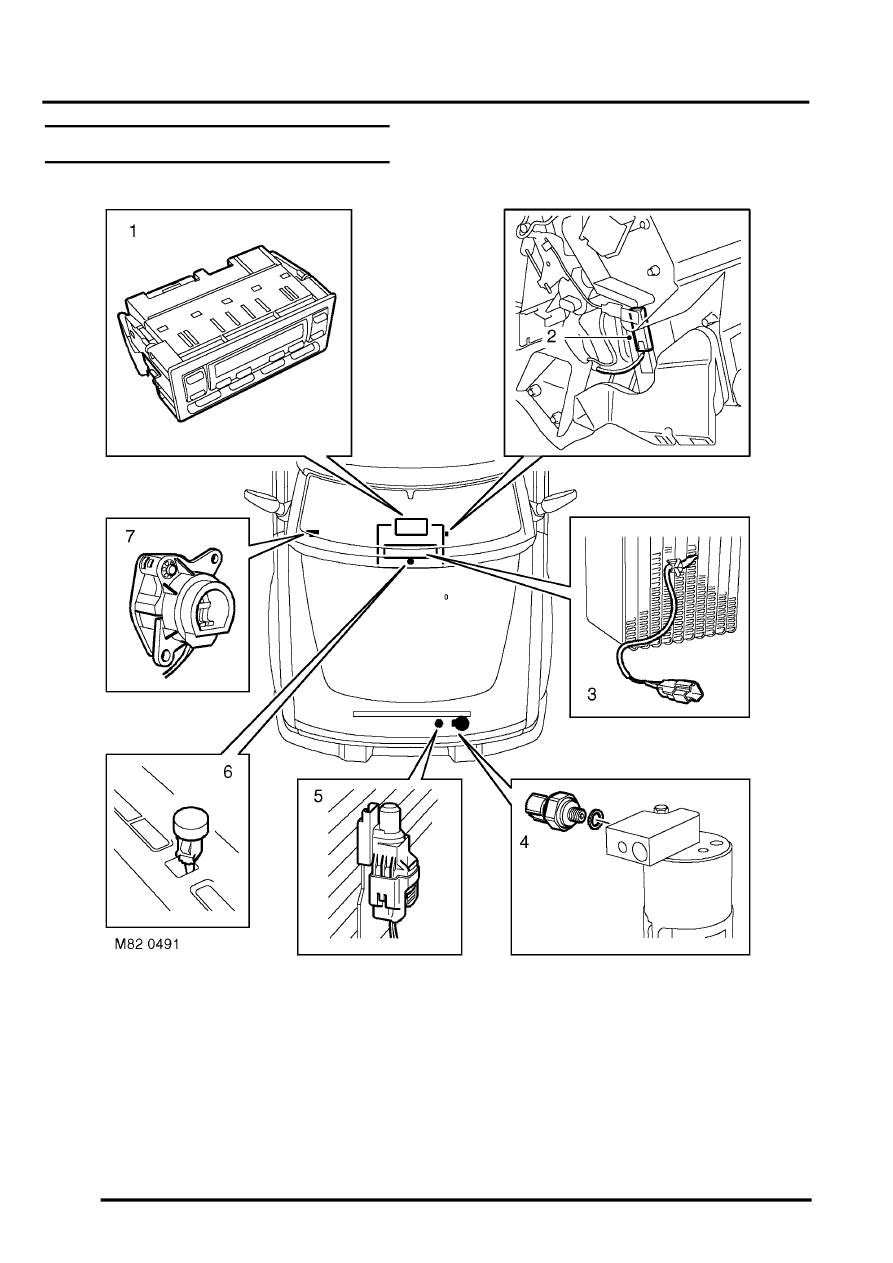

RH drive shown, LH drive similar
1 Air temperature control ECU
2 Heater coolant temperature sensor
3 Evaporator temperature sensor
4 Dual pressure switch
5 Ambient temperature sensor
6 Sunlight sensor
7 In-car temperature sensor
