C10 Front left earth
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Ground › C10 Front left earth
Connectors and pin-outsC10 Front left earth
C10 Front left earth
Connector C10A – front harness – Euro3
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.0 | NZ | black/violet | R10 pin 4 |
| 1 | N | black | N30 pin 1 J40 pin 86 H10 pin 4 K25 pin 1 N31 pin 1 F11B pin 1 F10B pin 1 D4 pin 6 | |
| 1 | ZN | violet/black | J50 pin 31 | |
| 1 | 2.5 | N | black | N25 pin 1 J30 pin 87 M10A pin 1 M10A pin 2 M10A pin 3 |
| 1 | 4.0 | N | black | J31 pin 87 |
| 1 | 1.0 | N | black | P11B pin @ H5A pin 7 N15 pin 6 F21 pin 1 F20 pin 1 I31 pin 2 |
| 1 | 1.5 | N | black | D50 pin 1 I10 pin 2 E40 pin 1 |
| 1 | NZ | black/violet | J38 pin 85 |
Connector C10A – front harness
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.0 | NZ | black/violet | R10 pin 4 |
| 1 | N | black | N30 pin 1 J40 pin 86 H10 pin 4 K25 pin 1 N31 pin 1 J86 pin 86 F11B pin 1 F10B pin 1 | |
| 1 | ZN | violet/black | J50 pin 31 | |
| 1 | 2.5 | N | black | N25 pin 1 J30 pin 87 |
| 1 | 4.0 | N | black | J31 pin 87 D5B pin A N48 pin B |
| 1 | 1.0 | N | black | P11B pin @ H5A pin 7 N15 pin 6 F21 pin 1 F20 pin 1 |
| 1 | 1.5 | N | black | D50 pin 1 I10 pin 2 E40 pin 1 |
Connector C10A – front harness
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.5 | N | black | I10 pin 2 D50 pin 1 E40 pin 1 |
| 1 | 1.0 | NZ | black/violet | R10 pin 4 |
| 1 | 1.0 | N | black | I31 pin @ P11B pin @ H5A pin 7 N15 pin 6 F21 pin 1 F20 pin 1 |
| 1 | N | black | N30 pin 1 H10 pin 4 J40 pin 86 K25 pin 1 N31 pin 1 M11 L55 pin 1 F11B pin 1 F10B pin 1 | |
| 1 | 4.0 | N | black | J32 pin 87 J30 pin 87 J31 pin 87 D5B pin A D4B pin G N49 pin B |
| 1 | ZN | violet/black | J50 pin 31 | |
| 1 | 2.5 | N | black | N25 pin 1 |
Connector C10A – front harness
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.0 | NZ | black/violet | R10 pin 4 |
| 1 | N | black | N30 pin 1 J40 pin 86 H10 pin 4 K25 pin 1 N31 pin 1 F11B pin 1 F10B pin 1 | |
| 1 | ZN | violet/black | J50 pin 31 | |
| 1 | 2.5 | N | black | N25 pin 1 J30 pin 87 |
| 1 | 4.0 | N | black | J31 pin 87 D5B pin A |
| 1 | 1.0 | N | black | P11B pin @ H5A pin 7 N15 pin 6 F21 pin 1 F20 pin 1 |
| 1 | 1.5 | N | black | D50 pin 1 I10 pin 2 E40 pin 1 |
| 1 | NZ | black/violet | J38 pin 85 |
Connector C10B – front harness
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.5 | N | black | H30A pin 9 |
| 1 | 1.0 | N | black | H20 pin 4 R10 pin 5 E15A pin 14 |
| 1 | 2.5 | N | black | D1 pin 17 |
| 1 | N | black | E30 pin 3 |
Connector C10B – front harness
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.5 | N | black | H30A pin 9 |
| 1 | 1.0 | N | black | H20 pin 4 R10 pin 5 E15A pin 14 |
| 1 | 2.5 | N | black | D1 pin 17 |
| 1 | N | black | E30 pin 3 K80 pin - |

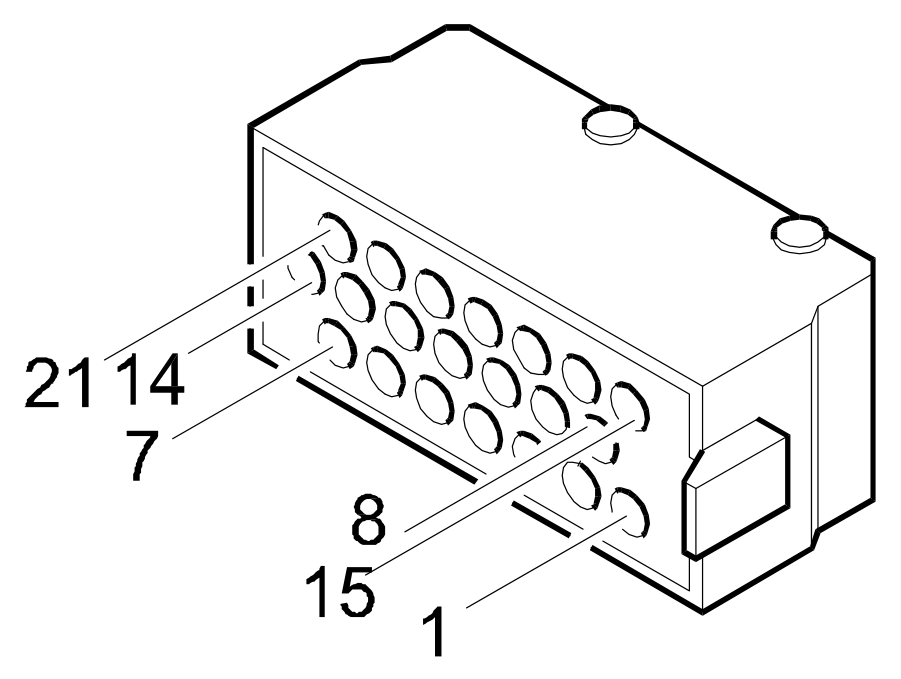

Connector C10C – battery negative harness
