E30 Check control
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Instruments and indicators › E30 Check control
Connectors and pin-outsE30 Check control
E30 Check control

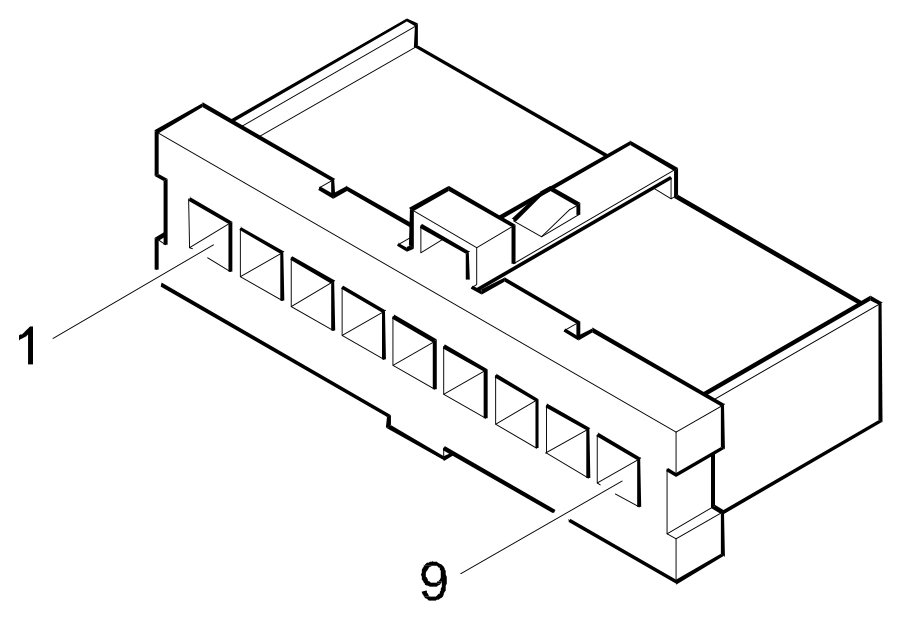

Connector E30
Connector E30 – front harness (black) – up to 01/00
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | C | orange | D1 pin 2 E15A pin 15 | |
| 2 | RN | red/black | R10 pin 16 D1 pin 7 M30A pin 3 | |
| 3 | N | black | C10B pin @ | |
| 4 | ZB | violet/white | D5A pin D | |
| 5 | CN | orange/black | D1 pin 19 | |
| 6 | VB | green/white | D5A pin F | |
| 7 | MN | brown/black | M20 pin 2 | |
| 8 | HV | grey/green | M30B pin 8 D6A pin 17 | |
| 9 | HG | grey/yellow | M30B pin 9 D6A pin 16 | |
| 10 | HR | grey/red | M30B pin 16 D6A pin 19 | |
| 11 | HN | grey/black | M30B pin 15 D6A pin 18 | |
| 12 | HL | grey/blue | D6A pin 20 M30B pin 17 | |
| 13 | B | white | D6A pin 15 K25 pin 2 | |
| 14 | BN | white/black | D1 pin 4 | |
| 15 | G | yellow | D1 pin 3 E10B pin 5 E15A pin 3 |
Connector E30 – front harness (black) – from 01/00
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | C | orange | D1 pin A2 E15A pin 15 | |
| 2 | RN | red/black | R10 pin 16 D1 pin A6 M30A pin 3 | |
| 3 | N | black | C10B pin @ | |
| 4 | ZB | violet/white | D5A pin D | |
| 5 | CN | orange/black | D1 pin C3 | |
| 6 | VB | green/white | D5A pin F | |
| 7 | MN | brown/black | M20 pin 2 | |
| 8 | HV | grey/green | M30B pin 8 D6A pin C4 | |
| 9 | HG | grey/yellow | M30B pin 9 D6A pin C3 | |
| 10 | HR | grey/red | M30B pin 16 D6A pin C6 | |
| 11 | HN | grey/black | M30B pin 15 D6A pin C5 | |
| 12 | HL | grey/blue | D6A pin C7 M30B pin 17 | |
| 13 | B | white | D6A pin C2 K25 pin 2 | |
| 14 | BN | white/black | D1 pin A3 | |
| 15 | G | yellow | D1 pin A8 E10B pin 5 E15A pin 3 |
Connector E30 – front harness (black) – Selespeed
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | C | orange | D1 pin A2 E15A pin 15 | |
| 2 | RN | red/black | R10 pin 16 D1 pin A6 M30A pin 3 | |
| 3 | N | black | C10B pin @ | |
| 4 | ZB | violet/white | D5 pin C4 | |
| 5 | CN | orange/black | D1 pin C3 | |
| 6 | VB | green/white | D5 pin B6 | |
| 7 | MN | brown/black | M20 pin 2 | |
| 8 | HV | grey/green | M30B pin 8 D6A pin C4 | |
| 9 | HG | grey/yellow | M30B pin 9 D6A pin C3 | |
| 10 | HR | grey/red | M30B pin 16 D6A pin C6 | |
| 11 | HN | grey/black | M30B pin 15 D6A pin C5 | |
| 12 | HL | grey/blue | D6A pin C7 M30B pin 17 | |
| 13 | B | white | D6A pin C2 K25 pin 2 | |
| 14 | BN | white/black | D1 pin A3 | |
| 15 | G | yellow | D1 pin A8 E10B pin 5 E15A pin 3 |
