E15 Rev counter
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Instruments and indicators › E15 Rev counter
Connectors and pin-outsE15 Rev counter
E15 Rev counter

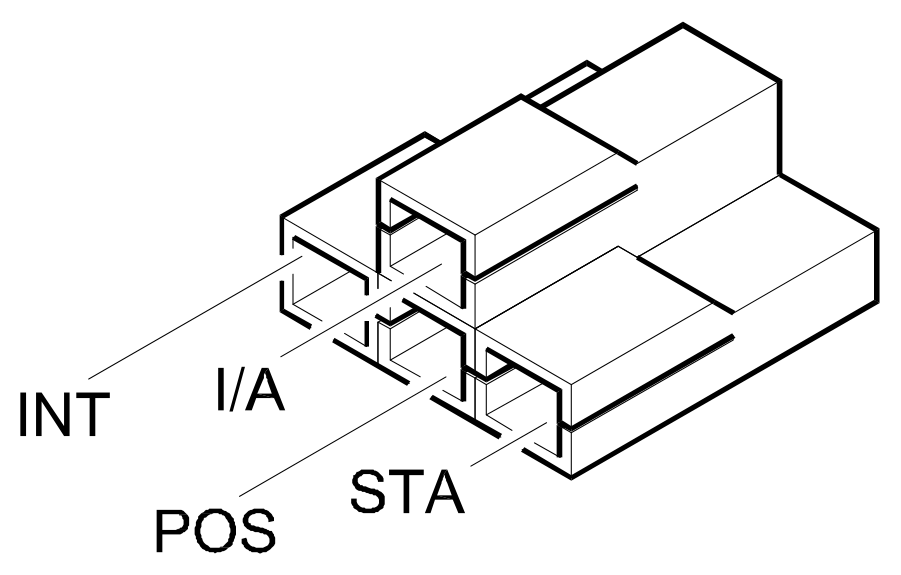

Connector E15B – front harness (black) – Euro3
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | MN | brown/black | D6A pin 14 | |
| 2 | VN | green/black | D6A pin 9 | |
| 3 | GV | yellow/green | E10B pin 4 | |
| 4 | V | green | D2A pin 14 B1C pin 6 | |
| 5 | HN | grey/black | D4 pin 18 | |
| 6 | MB | brown/white | M10A pin 47 D1 pin C1 | |
| 7 | HG | grey/yellow | D4 pin 8 | |
| 9 | AN | light blue/black | B1D pin 15 M30B pin 2 F20 pin 2 D2A pin 9 | |
| 10 | AB | light blue/white | E10B pin 3 | |
| 14 | L | blue | D50 pin 2 J40 pin 87 | |
| 15 | CN | orange/black | M10A pin 21 | |
| 16 | A | light blue | D2A pin 13 F21 pin 2 M30B pin 1 B1D pin 4 |
Connector E15B – front harness (black)
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | MN | brown/black | D6A pin 14 | |
| 2 | VN | green/black | D6A pin 9 | |
| 3 | GV | yellow/green | E10B pin 4 | |
| 4 | V | green | D2A pin 14 B1C pin 6 | |
| 5 | HN | grey/black | D3 pin C | |
| 6 | MB | brown/white | D4A pin 2 D22 pin 2 | |
| 7 | HG | grey/yellow | D3 pin A | |
| 9 | AN | light blue/black | B1D pin 15 M30B pin 2 F20 pin 2 D2A pin 9 | |
| 10 | AB | light blue/white | E10B pin 3 | |
| 14 | L | blue | D50 pin 2 J40 pin 87 | |
| 15 | CN | orange/black | D4A pin 5 | |
| 16 | A | light blue | D2A pin 13 F21 pin 2 M30B pin 1 B1D pin 4 |

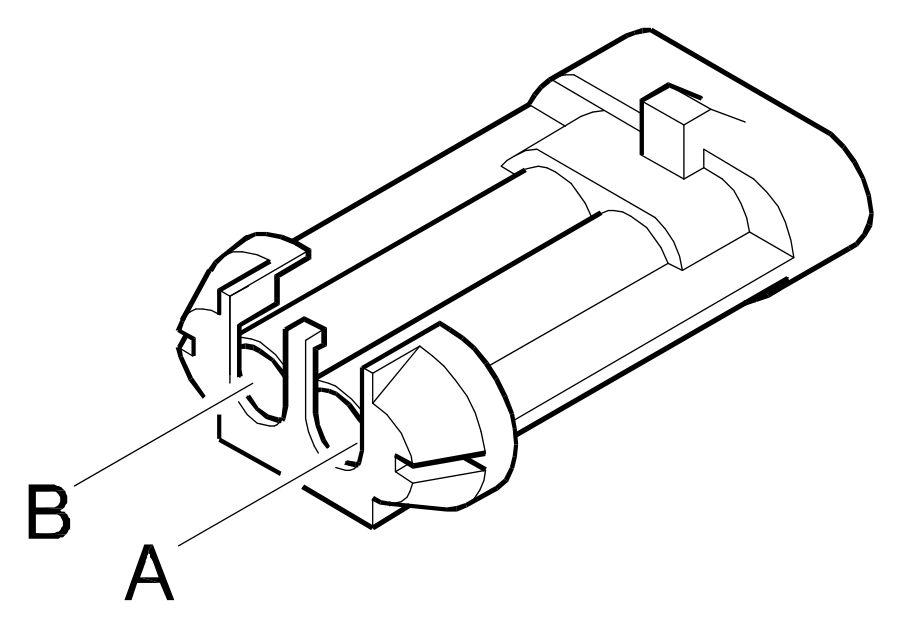

Connector E15A – front harness (white) – up to 01/00
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.0 | GV | yellow/green | D6A pin 4 |
| 2 | 1.0 | GR | yellow/red | D2A pin 12 |
| 3 | 1.5 | G | yellow | D1 pin 3 E30 pin 15 E10B pin 5 |
| 4 | 1.0 | MB | brown/white | D6A pin 8 |
| 5 | RV | red/green | I30 pin 2 D4A pin 7 D5A pin H B1D pin 18 | |
| 6 | 1.0 | L | blue | D6A pin 11 |
| 7 | 1.0 | A | light blue | D6A pin 12 |
| 8 | HR | grey/red | B1D pin 7 | |
| 9 | 1.0 | BL | white/blue | D6A pin 3 |
| 10 | 1.5 | AB | light blue/white | B1D pin 13 |
| 11 | 1.0 | SN | pink/black | D6A pin 2 |
| 12 | 1.0 | S | pink | D6A pin 1 |
| 13 | 1.0 | R | red | D6A pin 5 |
| 14 | 1.0 | N | black | C10B pin @ |
| 15 | 1.0 | AR | light blue/red | D1 pin 2 E30 pin 1 |
| 16 | 1.5 | AV | light blue/green | B1D pin 16 |
| 17 | 1.0 | H | grey | D6A pin 7 |
| 18 | 1.0 | RN | red/black | D6A pin 6 |
| 19 | 1.0 | V | green | D6A pin 10 |
| 20 | 1.0 | GN | yellow/black | D2A pin 18 |
Connector E15A – front harness (white) – up to 01/00
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.0 | GV | yellow/green | D6A pin A5 |
| 2 | 1.0 | GV | yellow/green | F10B pin 3 |
| 3 | 1.5 | G | yellow | D1 pin A8 E30 pin 15 E10B pin 5 |
| 4 | 1.0 | MB | brown/white | D6A pin B1 |
| 5 | RV | red/green | I30 pin 2 D4A pin 7 D5A pin H D5B pin A7 D5B pin A3 | |
| 6 | 1.0 | L | blue | B1D pin 18 |
| 7 | 1.0 | A | light blue | D6A pin B4 |
| 8 | HR | grey/red | D6A pin B5 | |
| 9 | 1.0 | BL | white/blue | B1D pin 7 |
| 10 | 1.5 | AB | light blue/white | D6A pin A4 |
| 11 | 1.0 | SN | pink/black | B1D pin 13 |
| 12 | 1.0 | S | pink | D6A pin A3 |
| 13 | 1.0 | R | red | D6A pin A2 |
| 14 | 1.0 | N | black | D6A pin A6 |
| 15 | 1.0 | AR | light blue/red | C10B pin @ D1 pin A2 |
| 16 | 1.5 | AV | light blue/green | E30 pin 1 |
| 17 | 1.0 | H | grey | B1D pin 16 |
| 18 | 1.0 | RN | red/black | D6A pin A8 |
| 19 | 1.0 | V | green | D6A pin A7 |
| 20 | 1.0 | GL | yellow/blue | F11B pin 3 |
