E8010 Diagnostics multiple connector

Description

The car is equipped with numerous self-diagnostic electronic control units.

When a tester (Examiner or other instrument) is connected to the control units, self-diagnostic data can be read (parameters, errors) or active testing can be carried out.

This car is not fitted with a specific tester connection for each control unit. Instead, a single standard 16-way tester connection is located on the left hand side of the facia, above the junction unit.

The diagnostic equipment (Examiner or other instruments) is connected to it using a special adaptor called "MPX 97". This adaptor makes it possible to select the system to which you wish to connect.

Description of operation

The diagnostic socket R10 is supplied directly by the battery at pin 16 by the line protected by fuse F10 of the junction unit B1. Pins 4 and 5 are earthed.

Pin 1 is connected to the ABS control unit M50 (pin 11) ( Wiring diagram E7020 ABS ).

Pin 3 is connected to the Air Bag control unit M60 (pin 9) ( Wiring diagram E7030 AIRBAG ).

Pin 9 is connected to the climate control unit M70 (pin 8 of connector B) ( Wiring diagram E6020 AIR CONDITIONER ).

Pin 11 is connected to alarm control unit M30 (pin 6 of connector A) and remote control receiver M35 (pin 2) (see E7015 - ALARM).

Pin 8 is connected to the Code control unit M20 (pin 5) ( Wiring diagram E7010 CODE ).

Pin 7 is connected to engine management control unit M10 via a dedicated line.

( Wiring diagram E5030 PETROL ENGINES ELECTRONIC CONTROL )

( Wiring diagram E5050 DIESEL ENGINES ELECTRONIC MANAGEMENT )

B

pin 7 is connected to the SELESPEED control unit M54, which shares its test line with engine management unit M10 ( Wiring diagram E7050 AUTOMATIC TRANSMISSION ).

B

The control unit of the AISIN electronic automatic transmission M55 is connected to pin 12 of R10 ( Wiring diagram E7050 AUTOMATIC TRANSMISSION ).

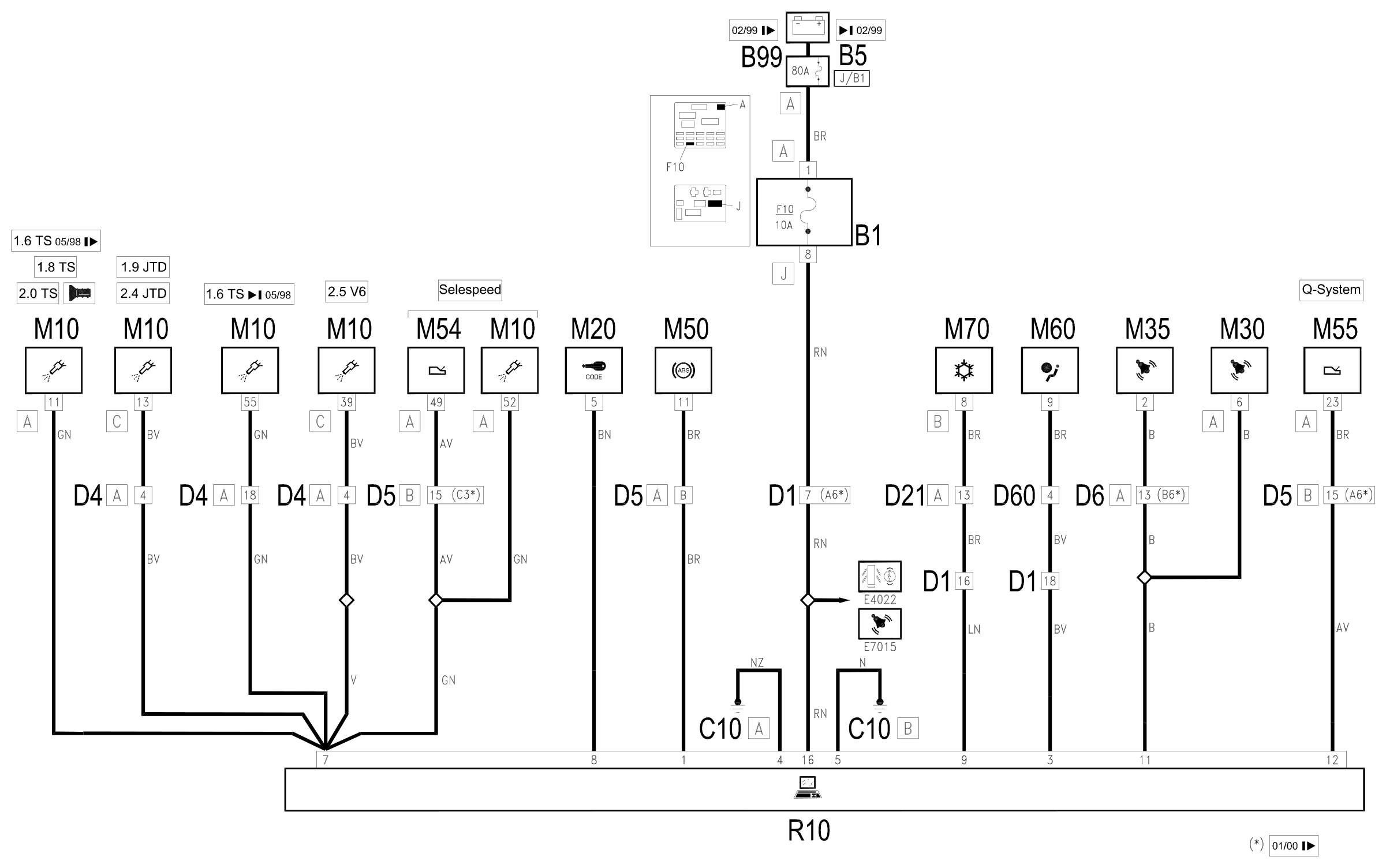

Wiring diagram

Components

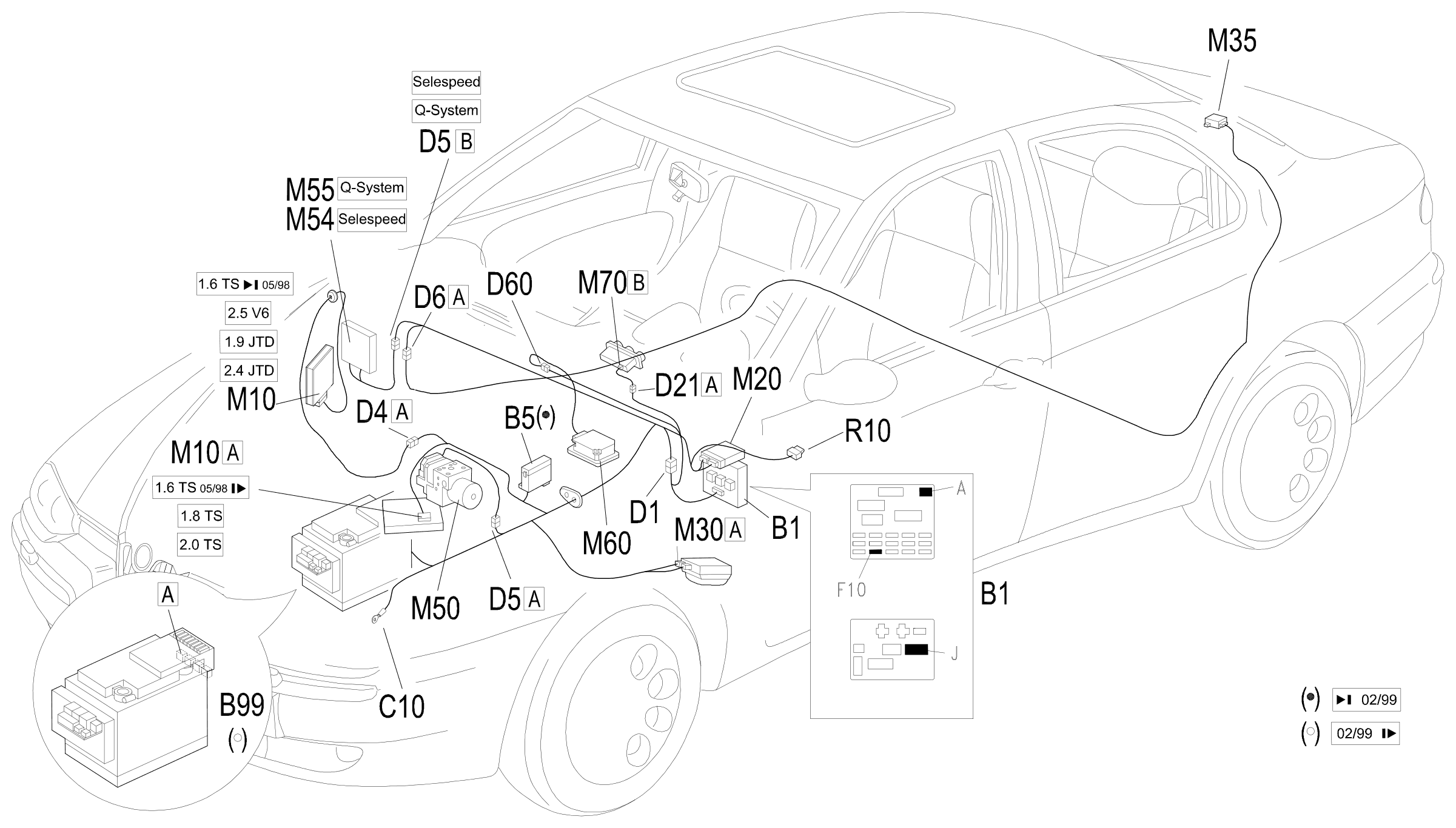

Component location
