Alfa Romeo 156 Factory Service Manual (1997-2002)14 · Connectors and pin-outs
14 · General

P11 Low-tone horn

Make
Alfa Romeo
Model
156 Factory Service Manual
Year
1997–2002
Section
Users › P11 Low-tone horn
Connectors and pin-outsP11 Low-tone horn

P11 Low-tone horn

Connector P11A – front harness (black)

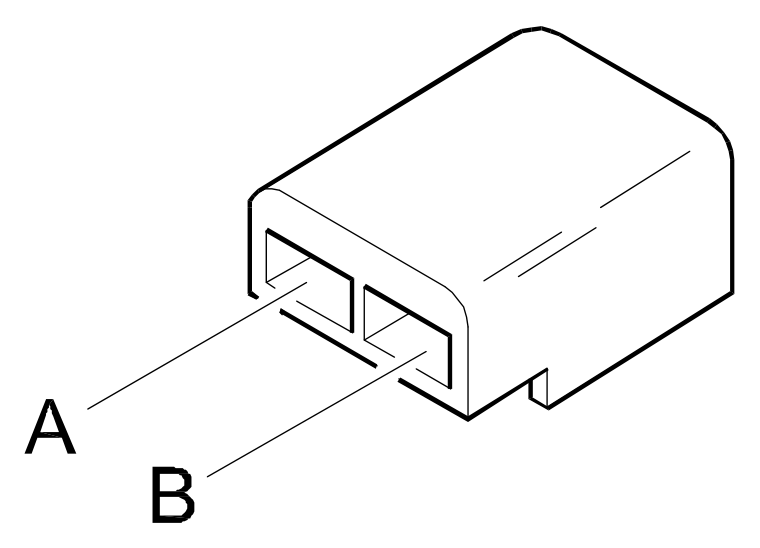

Connector P11A, Low-tone horn
Pinmm²ColourTo
11.5ZvioletB1D pin 11

Connector P11B – front harness (black)

Connector P11B, Low-tone horn
Pinmm²ColourTo
11.0NblackC10A pin @
P10B pin @
