I31 Clutch pedal switch

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Switches › I31 Clutch pedal switch

Connectors and pin-outsI31 Clutch pedal switch

I31 Clutch pedal switch

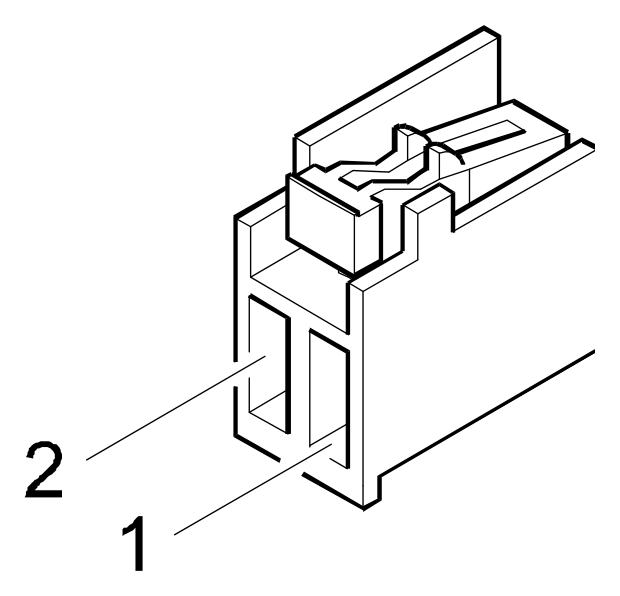

Connector I31 – front harness (white) – Euro3

Pin	mm²	Colour		To
2	1.0	N	black	C10A pin @
3	1.0	HL	grey/blue	M10A pin 62

Connector I31 – front harness (white) – Euro3

Pin	mm²	Colour		To
2	1.0	N	black	C10A pin @
3		HL	grey/blue	M10A pin 59

Connector I31 – front harness (white) – Manual gearbox

Pin	mm²	Colour		To
2	1.0	N	black	C10A pin @
3	1.0	H	grey	D4A pin 18

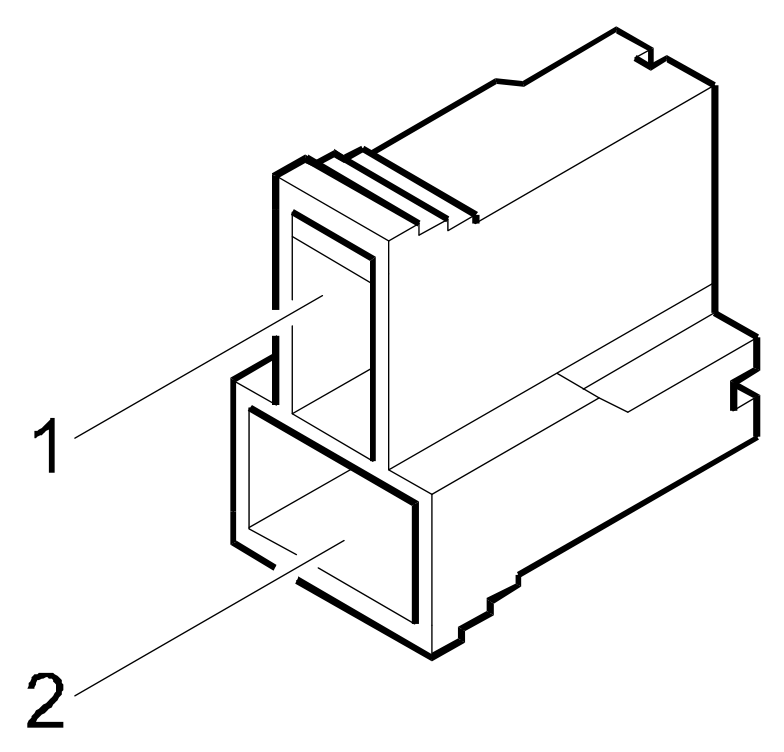

Connector I31 – front harness (white)

Pin	mm²	Colour		To
1	1.0	H	grey	D4A pin 8
2	1.0	S	pink	B1D pin 14 I30 pin 1 M30B pin 12

Wiring diagrams

• E5030
• E5050

14 General
