D5 Front / ABS couping

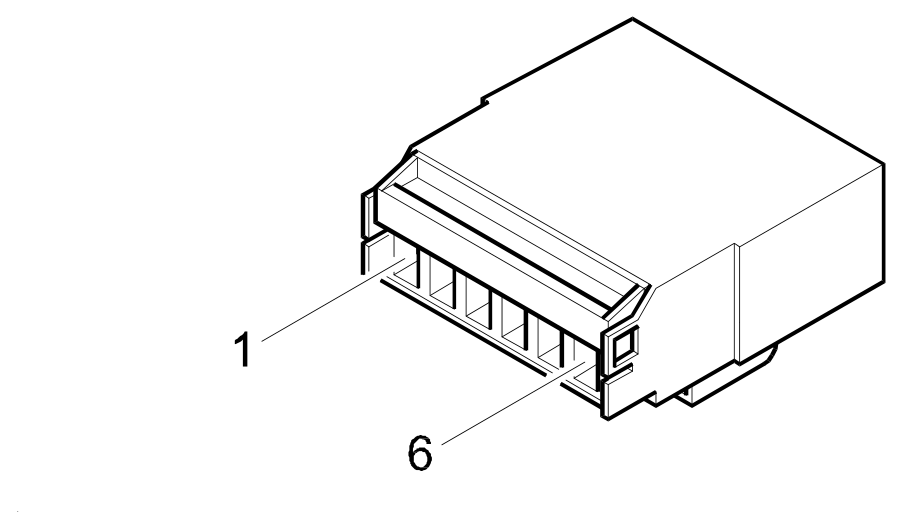

Connector D5A – front harness (black) – from 01/00

Pin	mm²	Colour		To
D		ZB	violet/white	E30 pin 4
E	1.0	V	green	D1 pin A5
F		VB	green/white	E30 pin 6
G	1.0	L	blue	B98A pin 12
H	1.0	S	pink	I30 pin 2 E15A pin 5 B1D pin 18 D5B pin A3 D5B pin A7
B	1.0	BR	white/red	R10 pin 1

Connector D5A – front harness (black) – <03/98

Pin	mm²	Colour		To
D		ZB	violet/white	E30 pin 4
E	1.0	V	green	D1 pin 6
F		VB	green/white	E30 pin 6
G	1.0	L	blue	B30 pin - D1 pin 10
H	1.0	S	pink	I30 pin 2 D5A pin H E15A pin 5 B1D pin 18
B	1.0	BR	white/red	R10 pin 1

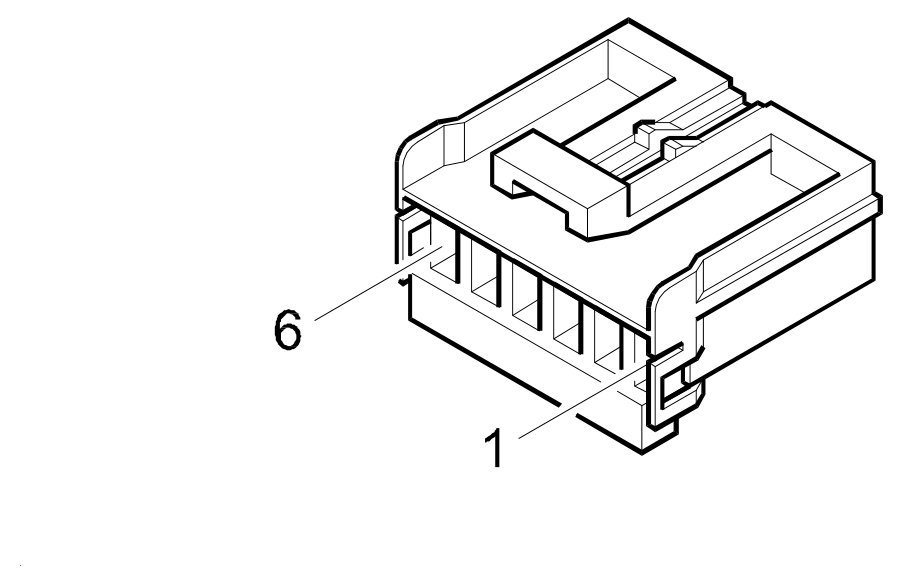

Connector D5A – abs harness (black)

Pin	mm²	Colour		To
D	1.0	ZB	violet/white	M50 pin 20
E	1.0	A	light blue	M50 pin 22
F	1.0	VB	green/white	M50 pin 21
G	1.0	L	blue	M50 pin 15
H	1.0	S	pink	M50 pin 14
B	1.0	BR	white/red	M50 pin 11

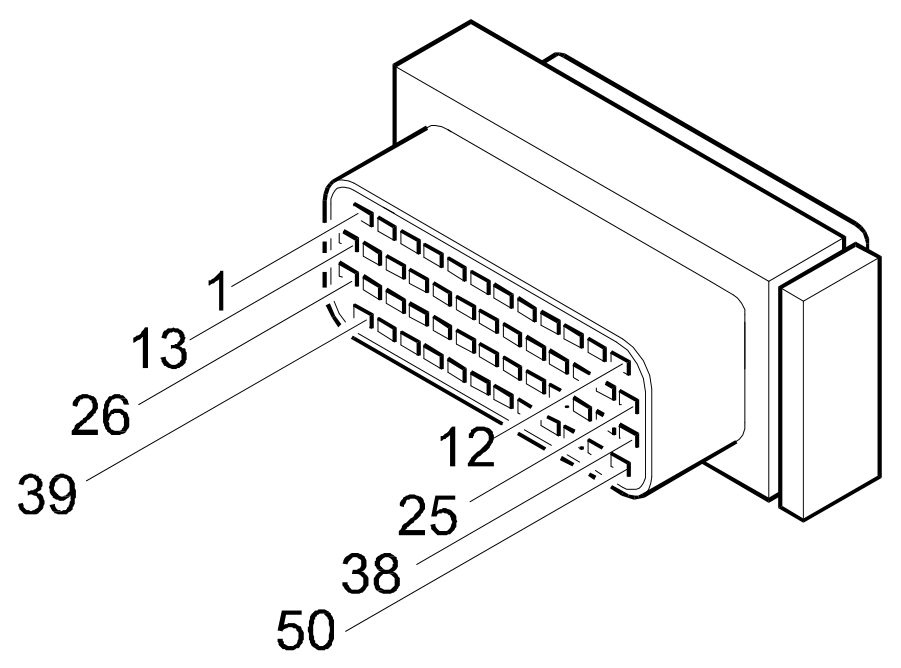

Connector D5B – abs harness (black)

Pin	mm²	Colour		To
A	4.0	N	black	M50 pin 16
B	4.0	R	red	M50 pin 18
C	4.0	R	red	M50 pin 17

Connector D5

Connector D5 – abs harness (blue)

Pin	mm²	Colour		To
A1		R	red	M54A pin 27
A2		BN	white/black	M54B pin 72
A3		GN	yellow/black	M54A pin 49
A4		HV	grey/green	M54B pin 78
A5		GV	yellow/green	H39 pin 2
A6		AG	light blue/yellow	M54B pin 80
A7		GR	yellow/red	M54B pin 75
A8		S	pink	M54B pin 69 M50 pin 14
B1		AR	light blue/red	M54A pin 28
B2		LR	blue/red	M54A pin 31
B3		MB	brown/white	M54A pin 42
B4		RN	red/black	M54B pin 76
B5		LG	blue/yellow	M50 pin 15
B6		VB	green/white	M50 pin 21
B7		L	blue	M50 pin 22
C2		V	green	M54A pin 45 M50 pin 30
C3		M	brown	M54A pin 33 M50 pin 29
C4		ZB	violet/white	M50 pin 20
C5		LN	blue/black	M50 pin 11
C6		RV	red/green	M54A pin 36
C7		BL	white/blue	M54A pin 48
C8		N	black	D79 pin 8 D79 pin 5 C12 M54A pin 1 H37 pin 1

Wiring diagrams

• E1010
• E4020
• E4021
• E5010
• E7020
• E7050
• E8010
