F10 Left headlamp

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Exterior lighting › F10 Left headlamp

Connectors and pin-outsF10 Left headlamp

F10 Left headlamp

Connector F10A – front harness (black)

Pin	mm²	Colour		To
1	1.0	AN	light blue/black	B1D pin 15 E15B pin 9 M30B pin 2 F20 pin 2
2	1.0	N	black	C10A

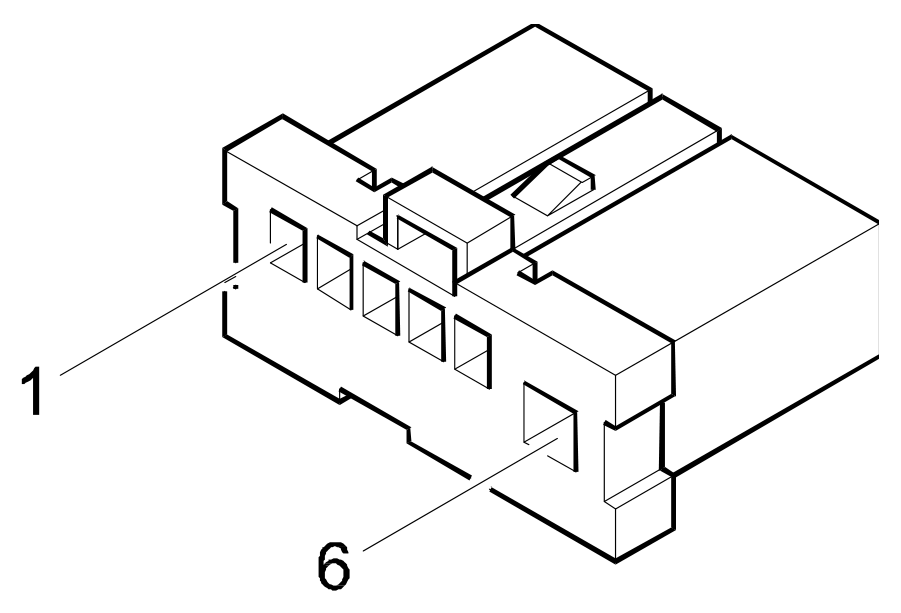

Connector F10B – front harness (black)

Pin	mm²	Colour		To
1	1.0	N	black	C10A
2	1.5	HR	grey/red	B1C pin 5 N30 pin 3
3	1.0	GV	yellow/green	E15A pin 2
4	1.0	V	green	B1C pin 6 E15B pin 4

Wiring diagrams

• E2010
• E2011
• E2012
• E2020
