E50 Instrument panel
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2002
- Section
- Instruments and indicators › E50 Instrument panel
Connectors and pin-outsE50 Instrument panel
E50 Instrument panel

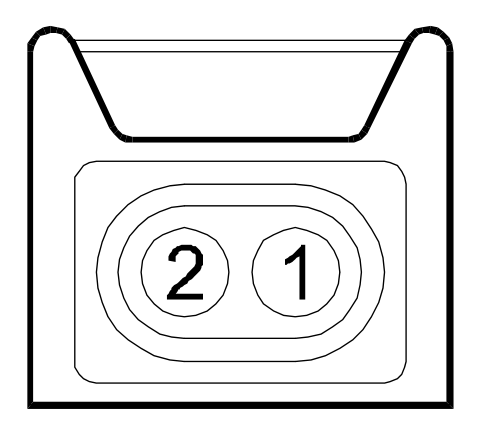

Connector E50A – dashboard harness (white)
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | LN | blue/black | M01B pin 31 | |
| 2 | RV | red/green | M01D pin 3 | |
| 3 | BS | white/pink | M01D pin 5 | |
| 4 | NS | black/pink | M01D pin 6 | |
| 5 | VB | green/white | B02G pin 18 | |
| 6 | HN | grey/black | B02G pin 14 | |
| 7 | NZ | black/violet | M01B pin 36 | |
| 8 | BH | white/grey | H05C pin 1 | |
| 9 | SV | pink/green | H10 pin 7 |

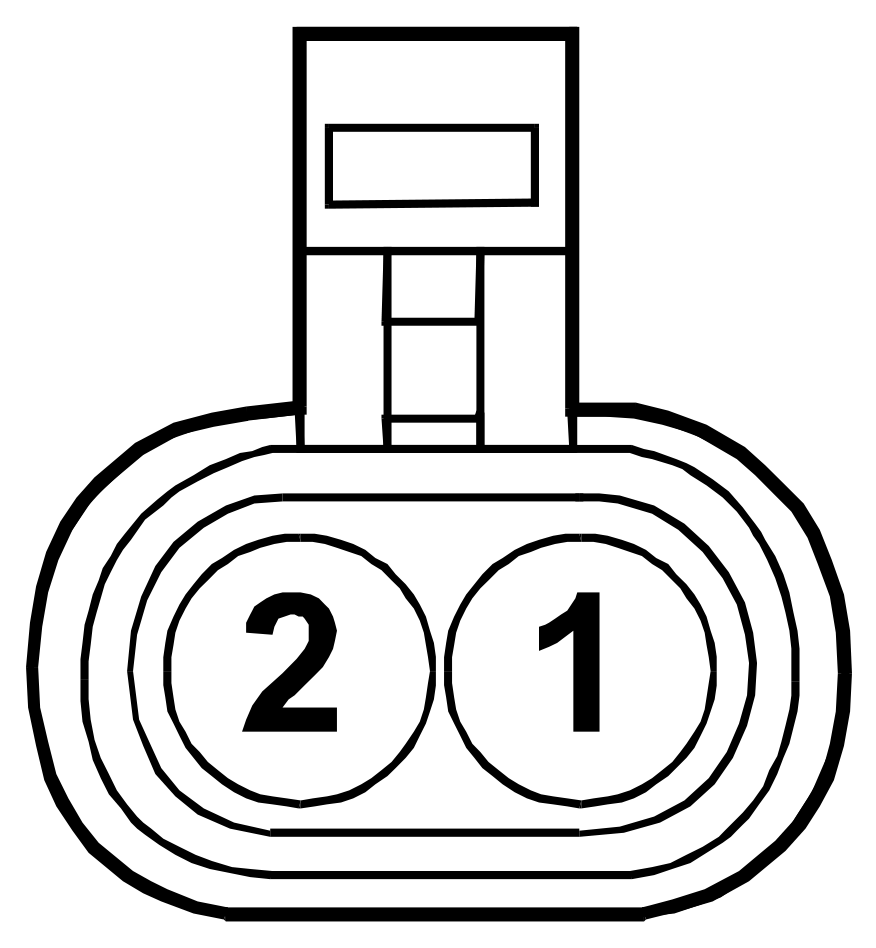

Connector E50B – dashboard harness (black)
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 10 | GV | yellow/green | B02F pin 1 | |
| 11 | MV | brown/green | H10 pin 4 | |
| 12 | HN | grey/black | D20 pin 1 | |
| 13 | AB | light blue/white | M60A pin 17 | |
| 14 | AZ | light blue/violet | M60A pin 12 | |
| 15 | CB | orange/white | B02F pin 5 | |
| 16 | SZ | pink/violet | H10 pin 6 |
