F10 Left headlamp

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Exterior lighting › F10 Left headlamp

Connectors and pin-outsF10 Left headlamp

F10 Left headlamp

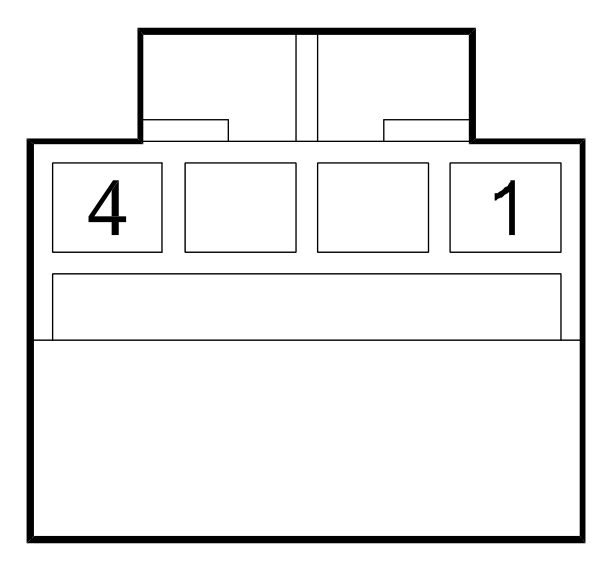

Connector F10 – front harness (black)

Pin	mm²	Colour		To
1	2.5	N	black	C10 pin 5
2		NZ	black/violet	C10 pin 4
3	1.0	ZB	violet/white	B01A pin 4
4		GV	yellow/green	M01A pin 40
5	1.0	VN	green/black	B01A pin 25
6	1.0	HN	grey/black	B02A pin 3
7		HG	grey/yellow	B02A pin 2
8		VB	green/white	B02A pin 1

Wiring diagrams

• E2010
• E2011
• E2012
• E2030
• E3080
