E7010 Code

Description

To increase the protection against theft attempts, an electronic immobiliser system known as the ALFA ROMEO CODE system is adopted.

The keys are equipped with an electronic transponder which transmits a coded signal to a special electronic control unit in the Body Computer. This allows the engine to be started if the code is recognised.

The code used in the communication, which takes place via aerial, changes each time the car is started up (rolling code). The code cannot therefore be reproduced, even with electronic scanners.

The main function of the Code control unit is to identify the code in the ignition key. The control unit contains a secret code which is used to communicate with the key Transponder. The body computer contains all enabled key codes in its memory, together with the code used in the communication between the body computer and the engine management unit. When the key is turned to MAR for for the first time, if the key is identified correctly, the code is transferred to the engine management unit and is then indelibly linked to the body computer.

The two units communicate via a two-way serial line.

The function also allows status to be displayed via activation of a warning light (ALFA ROMEO CODE warning light) in the instrument panel and connected via the CAN network.

For more details Characteristic of working principle 5580E Anti-theft device .

Description of operation

The CODE unit inside Body Computer M1 is supplied from the battery from the line of maxifuse CPL B99 - pin 18 of connector F, while the ignition-operated power supply (INT) reaches pin 9.

The line leading from pin 29 of connector A is a serial line leading to engine management unit M10 - pin 3 of connector A, which is responsible for identifying the key and exchanging codes.

The aerial of CODE device P91 is connected via two leads to the CODE unit of M1, at pins 4 and 5 of connector A; The aerial is located coaxially on the ignition switch so that it can register key insertion and activation.

Body Computer M1 is linked to instrument panel E50, via the CAN line to manage the CODE failure warning light.

Wiring diagram

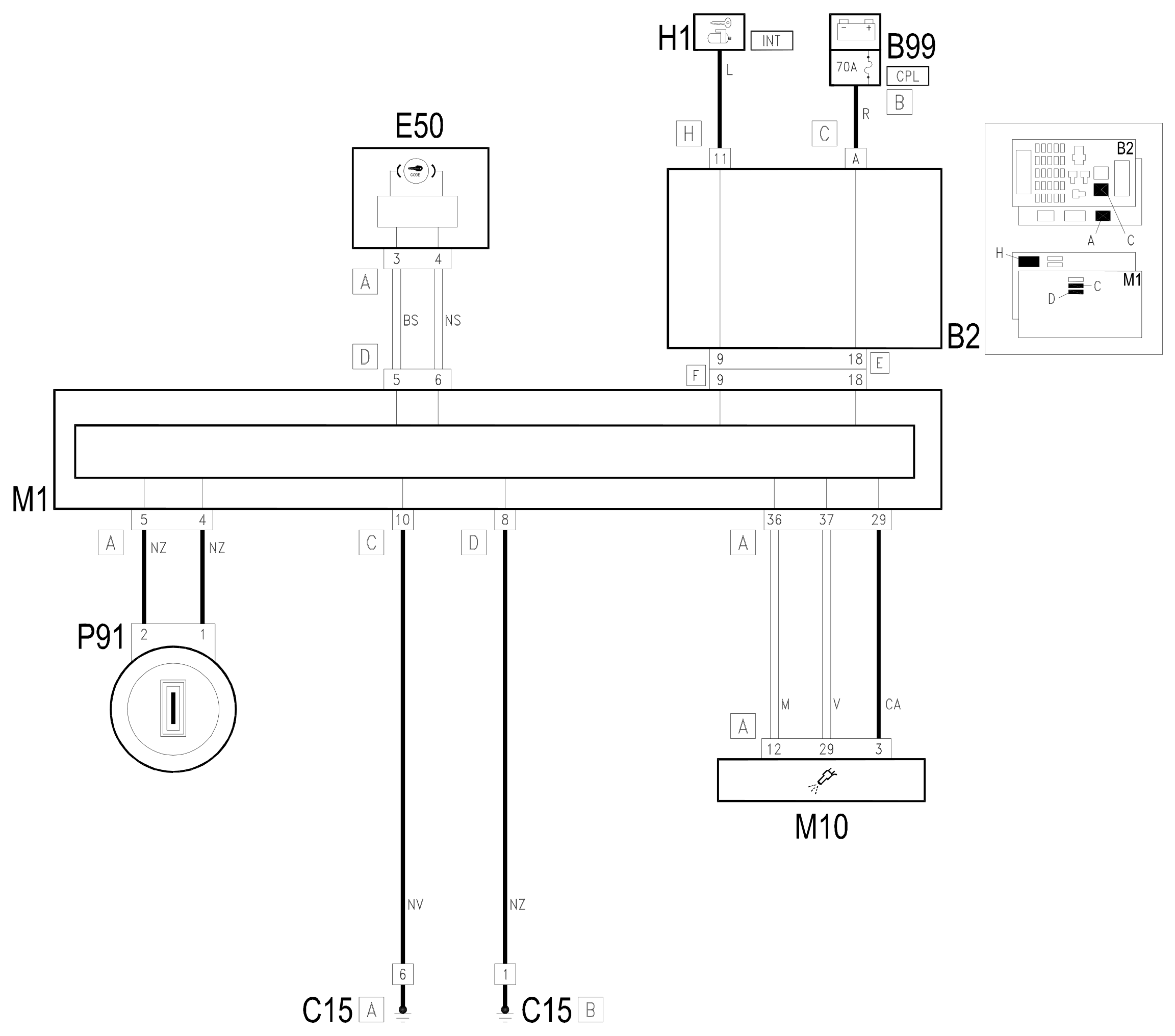

Wiring diagram E7010 CODE

Components

CodeComponentSee
B02Junction unit under dashboard description 5505A
B99Maxifuse box on battery description 5530B
C15Facia earth, driver's side
E50Instrument panel description 5560B
H01Ignition switch description 5520A
M01Body computer description 5505A
M10Engine management ECU description 1056B
P91Aerial for CODE description 5580E

Component location

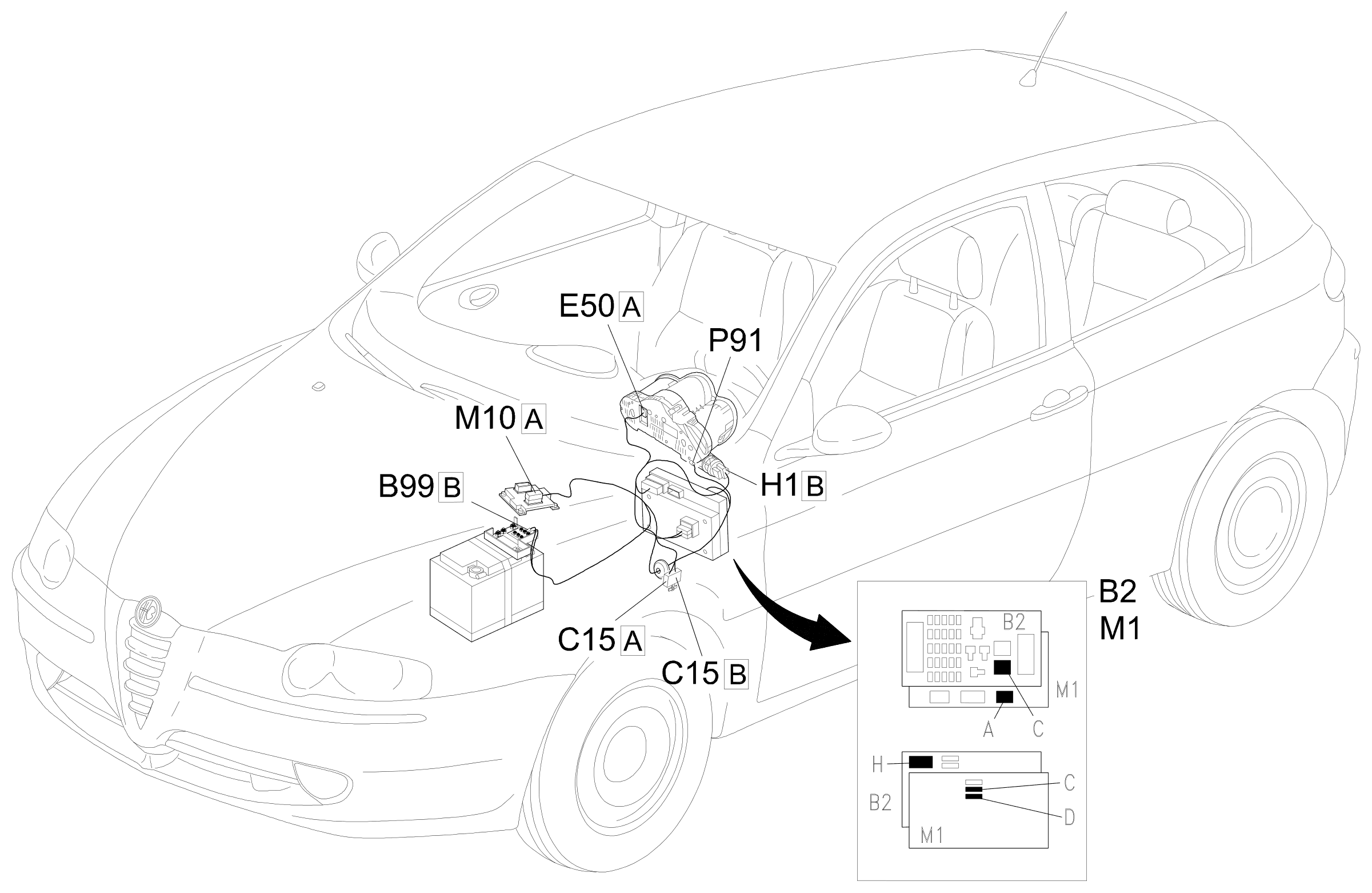

Location of components, E7010
