H5 Stalk unit

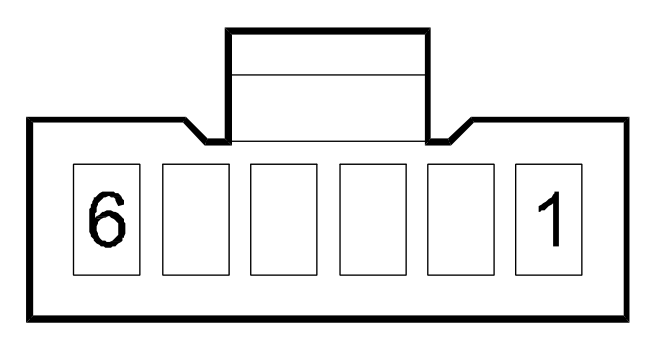

Connector H5A – front harness (white)

Pin	mm²	Colour		To
1		GH	yellow/grey	B01A pin 21
2		SZ	pink/violet	D06 pin 5
3		BL	white/blue	M01A pin 1
4		SV	pink/green	D06 pin 6
5		BH	white/grey	M01A pin 13
6		V	green	N15 pin 3
7	2.5	N	black	C10 pin 15
8	2.5	H	grey	N15 pin 1
9	2.5	HG	grey/yellow	N15 pin 2
10	2.5	S	pink	N22 pin 1
11	2.5	AB	light blue/white	B02A pin 10
12	2.5	SN	pink/black	N22 pin 2

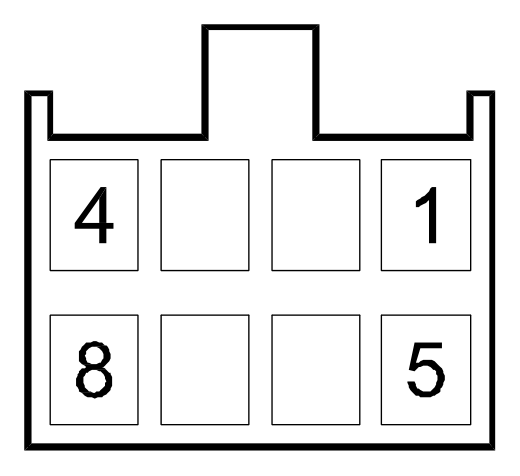

Connector H5B – dashboard harness (white)

Pin	mm²	Colour		To
1		AB	light blue/white	M01D pin 7
2		HN	grey/black	M01B pin 33
3		LG	blue/yellow	M01D pin 4
5		AV	light blue/green	M01B pin 28
6		NZ	black/violet	C15B pin 3

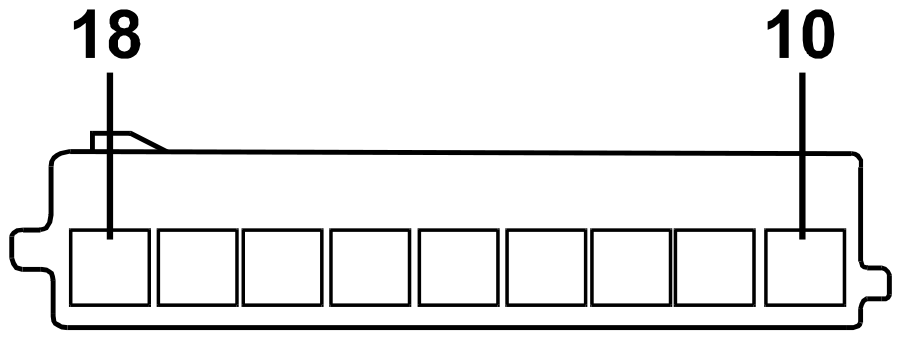

Connector H5C – dashboard harness (white)

Pin	mm²	Colour		To
1		BH	white/grey	E50A pin 8
2		AR	light blue/red	B02G pin 17
3		AN	light blue/black	B02G pin 11
4		HV	grey/green	B02G pin 15
5		N	black	C15B pin 2
6		AH	light blue/grey	M01B pin 30

Wiring diagrams

• E2010
• E2011
• E2012
• E2020
• E2022
• E3010
• E3020
• E3021
• E3022
• E3580
