TRANSFER BOX - LT230SERear output housing components
TRANSFER BOX - LT230SE
41-12
DESCRIPTION AND OPERATION

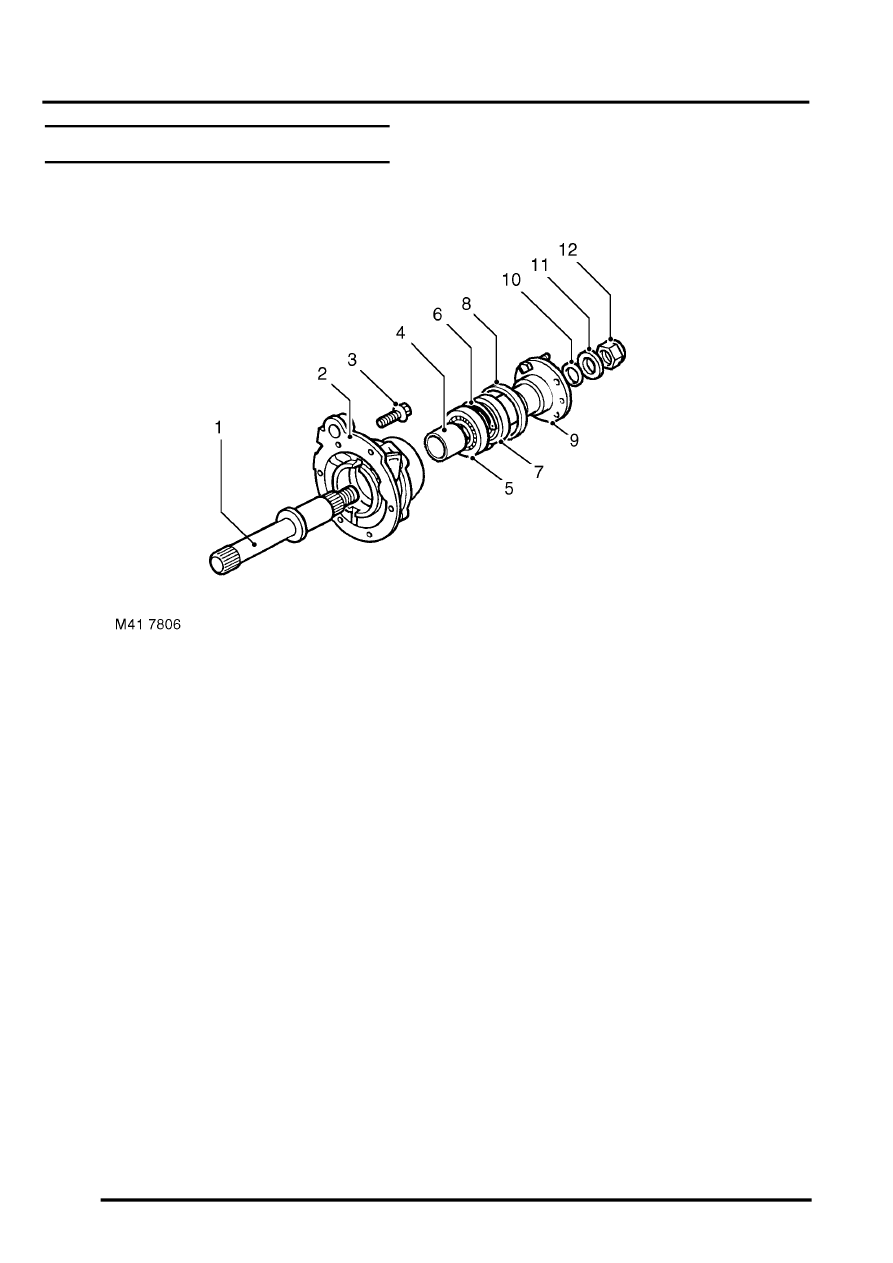

Rear output housing components
1 Rear output shaft
2 Rear output housing
3 Bolt - rear output housing
4 Spacer
5 Output shaft bearing
6 Circlip
7 Oil seal
8 Mud shield
9 Rear output flange
10 Felt washer
11 Steel washer
12 Self-locking nut
