SUNROOF

76-6-12 DESCRIPTION AND OPERATION

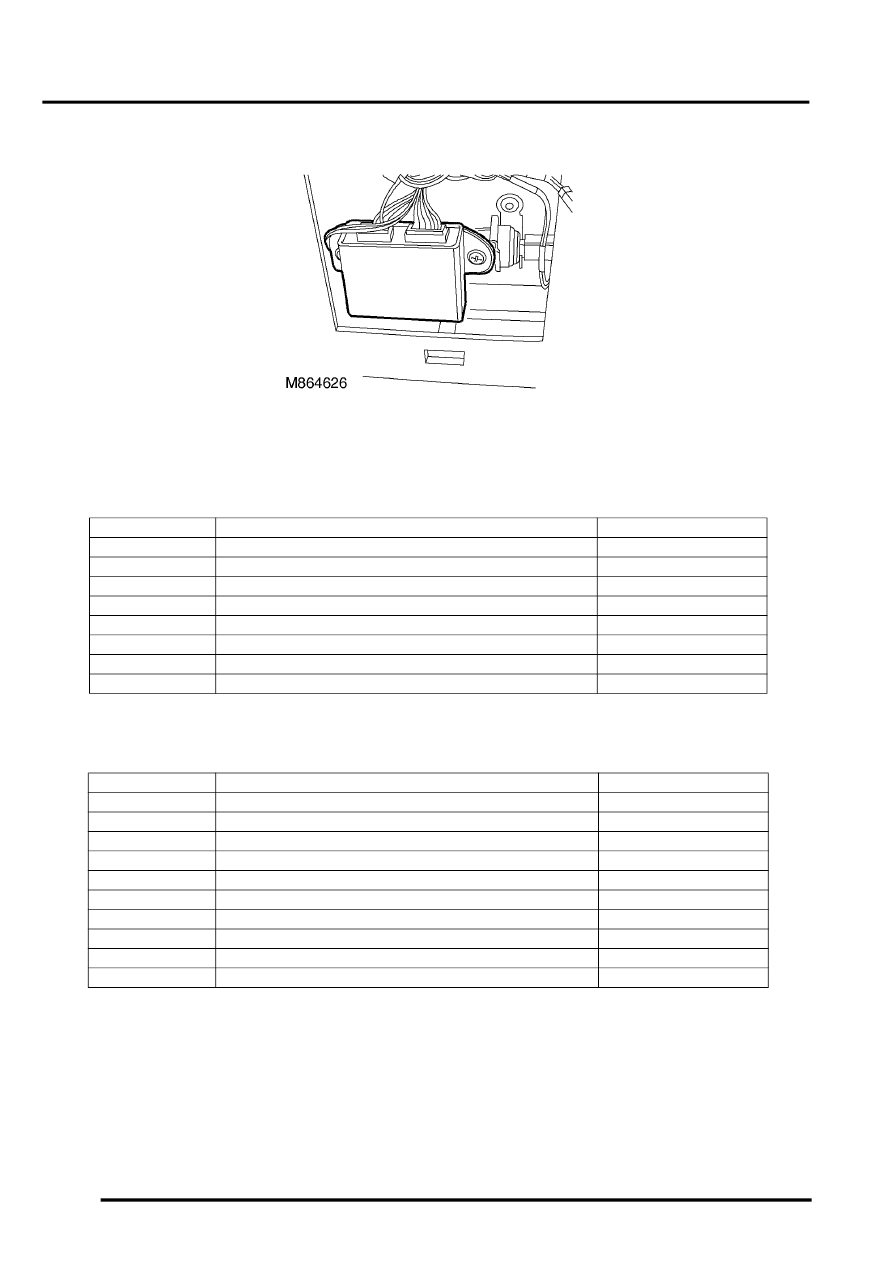

Sunroof ECU

The sunroof ECU is located behind the head lining above the rear view mirror. Most functions of the sunroof ECU are
covered under other components.

Sunroof ECU connector pin details - C0784

Sunroof ECU connector pin details - C0785

Pin No.

Description

Input/Output

1

Rear sunroof microswitch

Input

2

Front sunroof switch - open

Input

3

Not used

-

4

Sunroof microswitches - common

Input

5

Not used

-

6

Rear sunroof, rear switch - open

Input

7

Rear sunroof, front switch - open

Input

8

Front sunroof microswitch

Input

Pin No.

Description

Input/Output

1

Front sunroof motor forward

Output

2

ECU earth

Input

3

Battery power supply

Input

4

Rear sunroof motor backwards

Output

5

Front sunroof motor backwards

Output

6

Rear sunroof motor forwards

Output

7

Front sunroof switch - close

Input

8

Rear sunroof, front switch - close

Input

9

Rear sunroof, rear switch - close

Input

10

Sunroof enable

Input
