Head restraint - third row seat

SEATS

REPAIRS 76-5-33

Heating element - squab - front seat

$% 78.90.36

Remove

1. Remove front seat squab cover.

 +

 SEATS, REPAIRS, Cover - squab -

front seat.

2. Disconnect heating element multiplug.
3. Carefully release heating element from  squab

pad, ensuring adhesive does not  tear squab
pad.

Refit

1. Ensure squab pad is free of adhesive.
2. Remove adhesive cover from new heating

element, position element and secure to  squab
pad.

3. Fit front seat squab cover.

 +

 SEATS, REPAIRS, Cover - squab -

front seat.

Head restraint - third row seat

$% 78.50.10

Remove

1. Fold down both third row head restaints.

2. Release upper tail gate finisher from 6 clips and

remove finisher.

3. Remove 3 bolts securing head restraint and

remove head restraint.

Refit

1. Position head restraint, fit and tighten bolts.
2. Position upper tail gate finisher and secure in

clips.

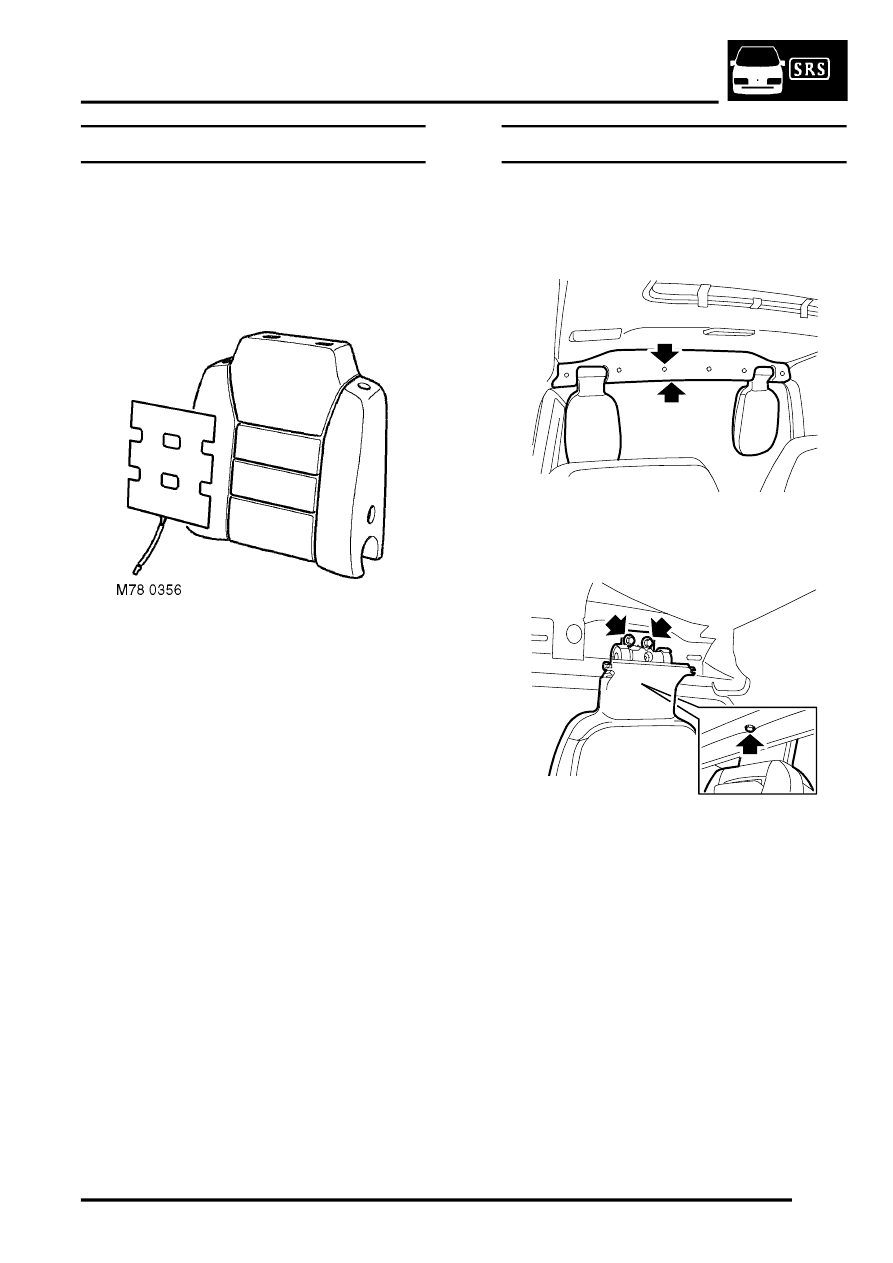

M78 0493
