SRS block diagram (RESTRAINT SYSTEMS)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION › SRS block diagram
RESTRAINT SYSTEMSSRS block diagram
RESTRAINT SYSTEMS
75-2
DESCRIPTION AND OPERATION

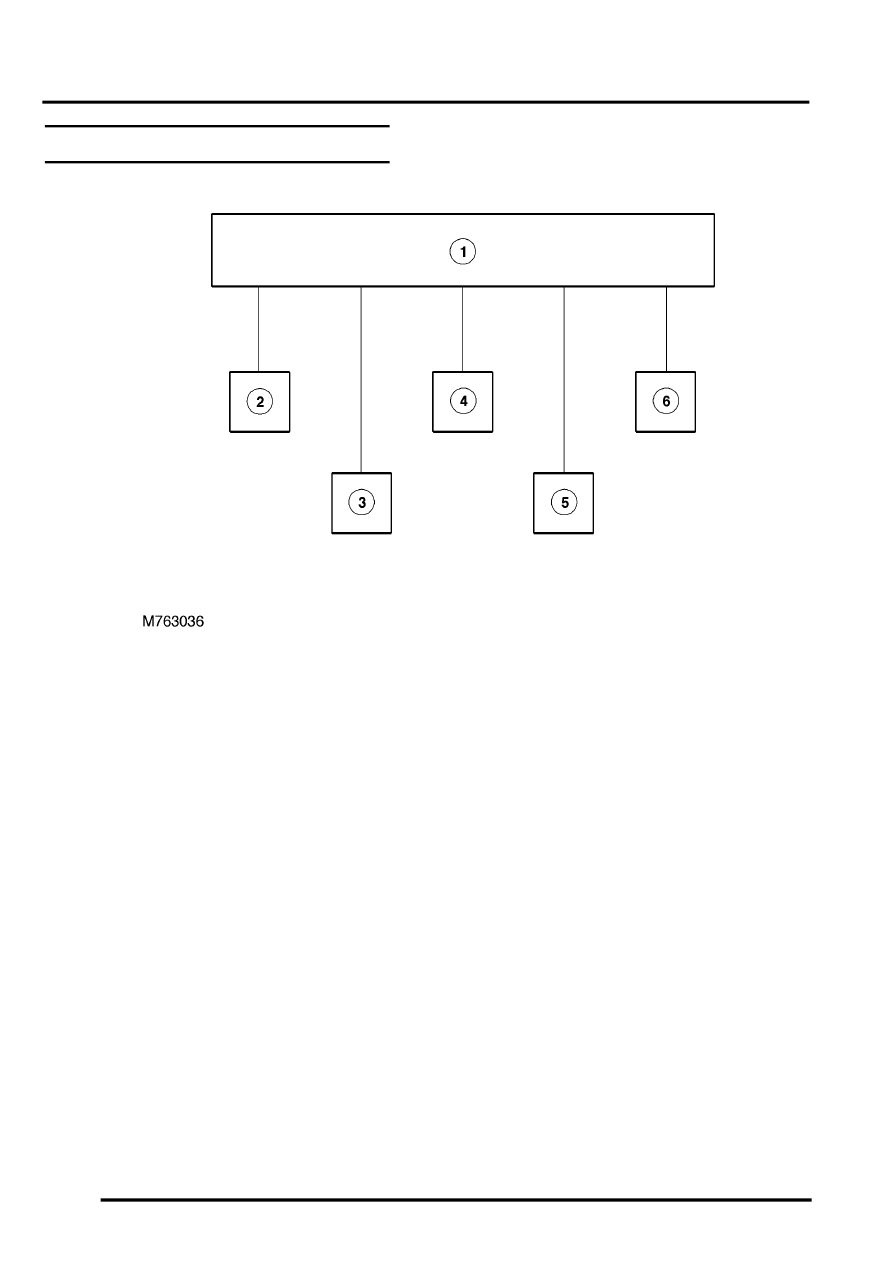

SRS block diagram
1 DCU
2 SRS warning lamp
3 Driver airbag module
4 Driver seat belt pretensioner
5 Passenger airbag module
6 Passenger seat belt pretensioner
