Bearing - output shaft rear support

MANUAL GEARBOX - R380

OVERHAUL

37-47

Bearing - output shaft rear support

$% 37.20.55

Disassembly

1. Remove extension housing.

 +

 MANUAL GEARBOX - R380,

OVERHAUL, Extension - gearbox rear.

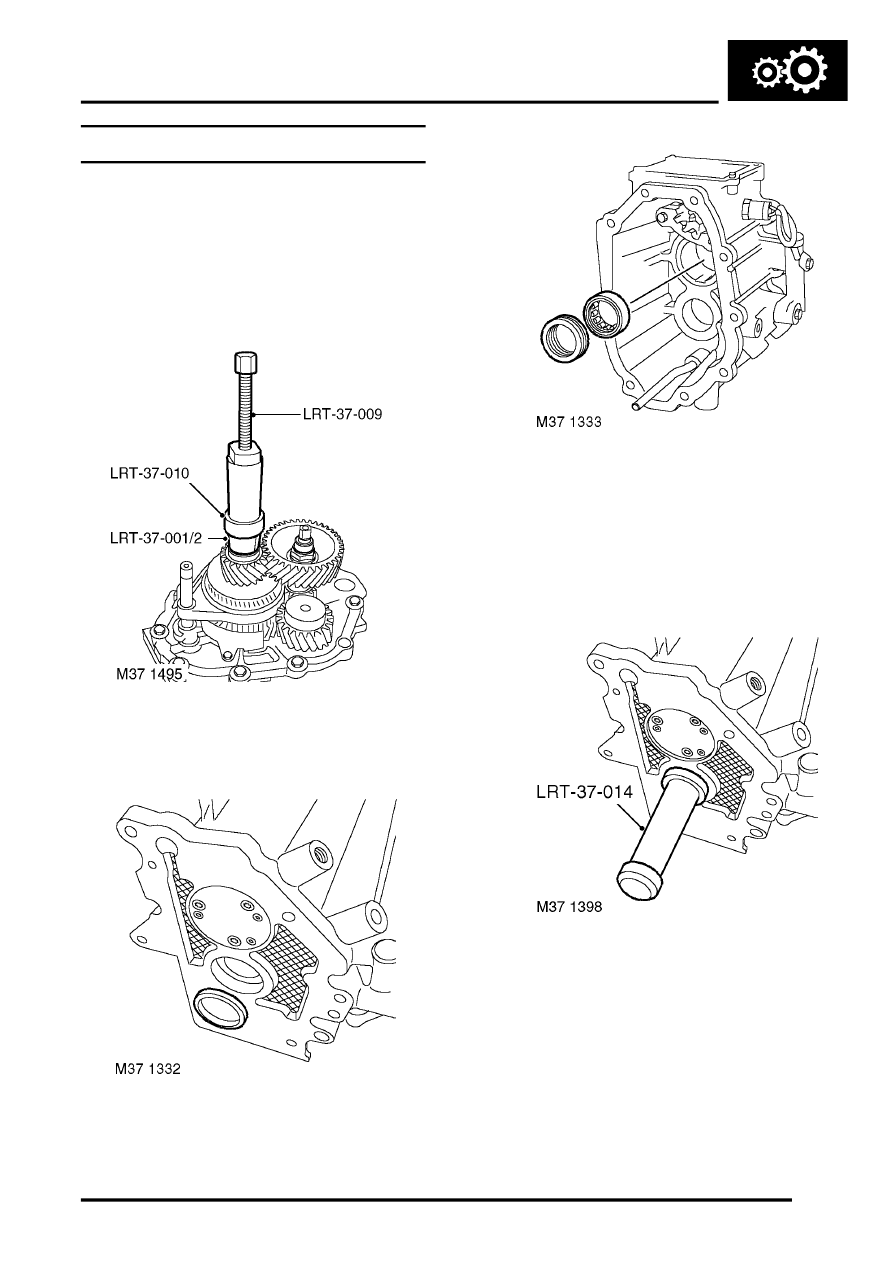

2. Using tool  LRT-37-001/2,  LRT-37-009 and

LRT-37-010, remove output shaft support
bearing track.

3. Remove output shaft rear oil seal.

4. Remove output shaft support bearing and  oil

pick-up ring.

Reassembly

1. Clean output shaft and bearing recess  in

extension housing.

2. Fit output shaft support bearing and oil pick-up

ring. (Align tag with centre of  drain slot).

3. Fit new output shaft oil seal using  LRT-37-014.
