MANUAL GEARBOX - R380

37-6

DESCRIPTION AND OPERATION

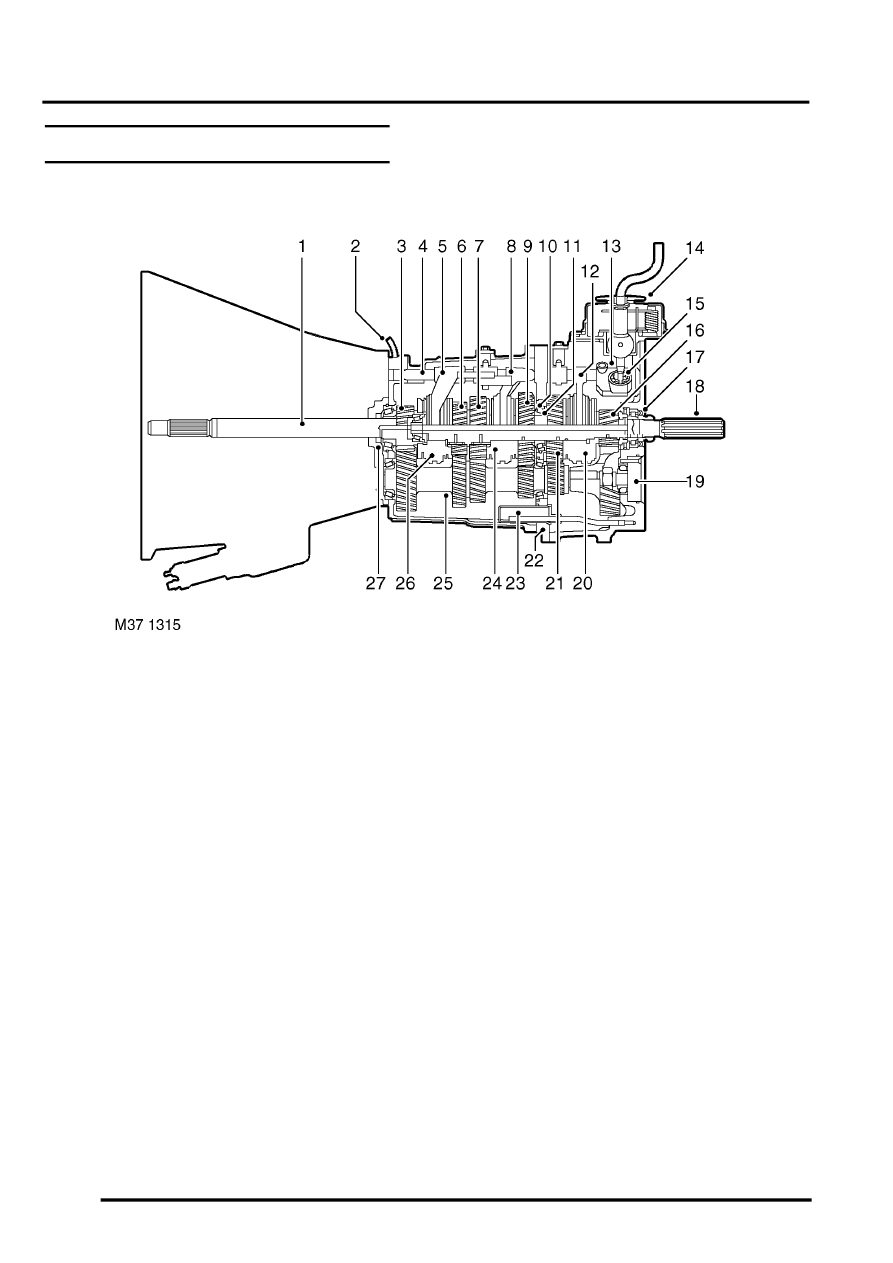

R380 gearbox cross section

1 Input shaft
2 Breather
3 Input shaft 4th gear
4 Selector shaft
5 3rd/4th selector fork
6 Output shaft 3rd gear
7 Output shaft 2nd gear
8 1st/2nd selector fork
9 Output shaft 1st gear

10 Selective shims - output shaft and layshaft end-

float

11 Selective shim - reverse gear idler shaft end-

float

12 5th/reverse selector fork
13 Selector yoke

14 Gear change assembly
15 Railko bush
16 Output shaft 5th gear
17 Output shaft oil seal
18 Output shaft
19 Oil pump
20 5th/reverse gear synchromesh assembly
21 Output shaft reverse gear
22 Centre plate
23 Oil filter
24 1st/2nd synchromesh assembly
25 Layshaft
26 3rd/4th gear synchromesh assembly
27 Input shaft oil seal
