IN CAR ENTERTAINMENT: DESCRIPTION AND OPERATION (page 2 of 7)

IN CAR ENTERTAINMENT

DESCRIPTION AND OPERATION

86-6-5

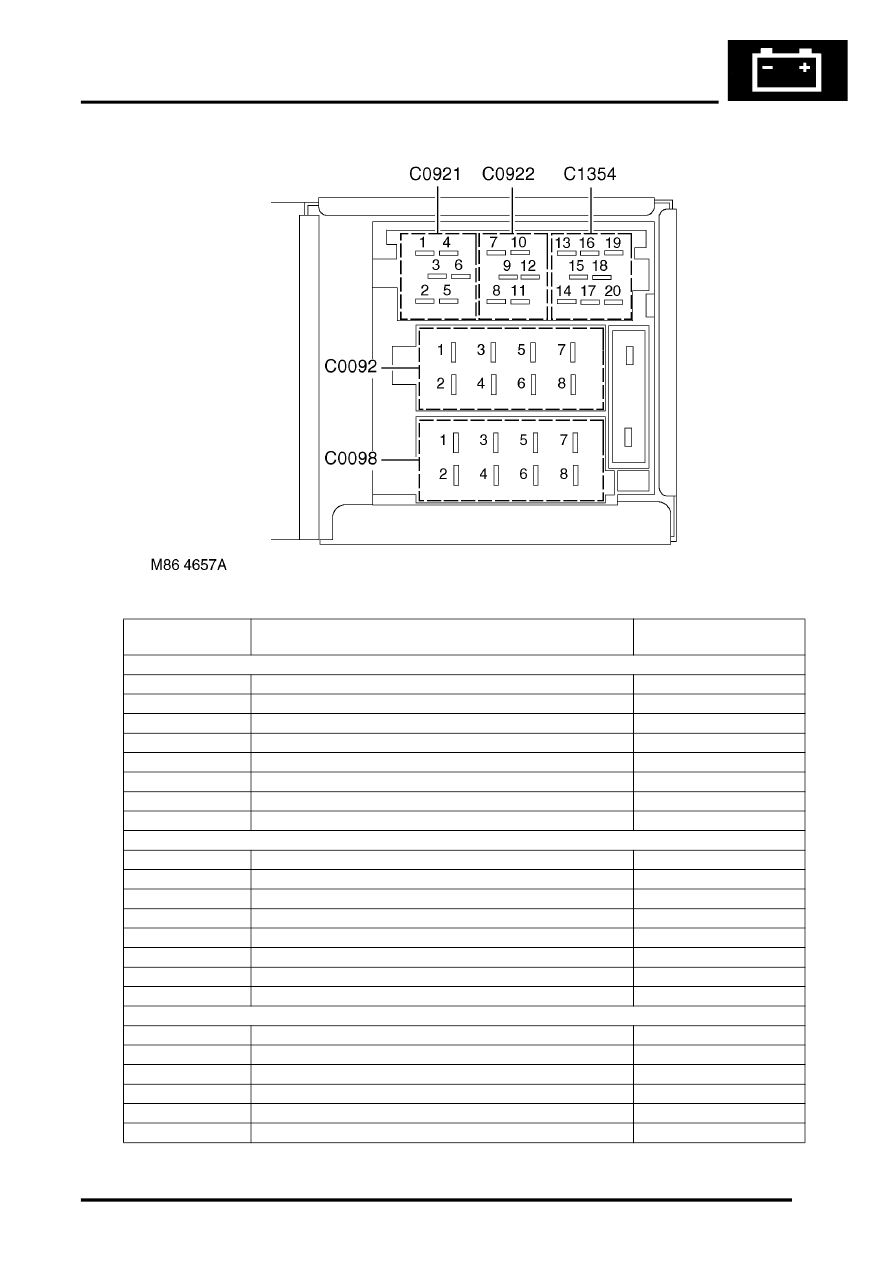

Radio cassette player connector pin details.

Connector/Pin

No.

Description

Input/Output

C0092

1

Rear RH speaker line

Output +

2

Rear RH speaker line

Output -

3

Front RH speaker line

Output +

4

Front RH speaker line

Output -

5

Front LH speaker line

Output +

6

Front LH speaker line

Output -

7

Rear LH speaker line

Output +

8

Rear LH speaker line

Output -

C0098

1

Telephone mute

Input

2

Steering wheel remote radio controls

Input

3

Steering wheel remote radio controls

Output

4

Permanent battery feed

Input

5

System enable

Output

6

Illumination

Input

7

Auxilary feed

Input

8

Earth

Input

C0921 (high line systems)

1

Radio headphone left channel

Output +

2

Radio headphone right channel

Output +

3

Telephone audio

Input +

4

Radio headphone left channel

Output -

5

Radio headphone right channel

Output -

6

Telephone audio

Input -
