Fuel burning heater component layout (HEATING AND VENTILATION)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION › Fuel burning heater component layout
HEATING AND VENTILATIONFuel burning heater component layout
HEATING AND VENTILATION
80-2
DESCRIPTION AND OPERATION
Fuel burning heater component layout
RH drive shown, LH drive similar

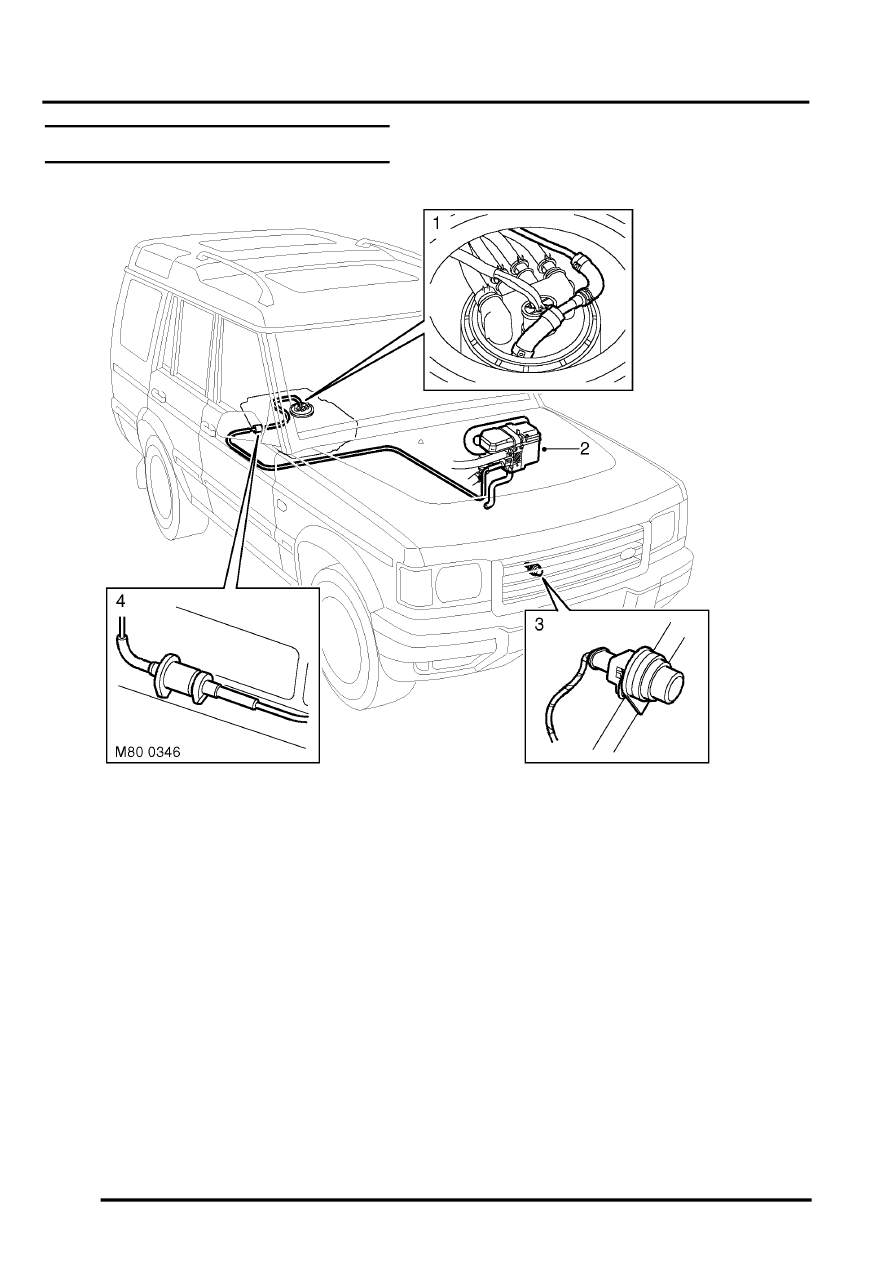

1 FBH fuel line connection
2 FBH unit
3 Air temperature sensor
4 FBH pump
