HARNESSES
REPAIRS 86-7-23

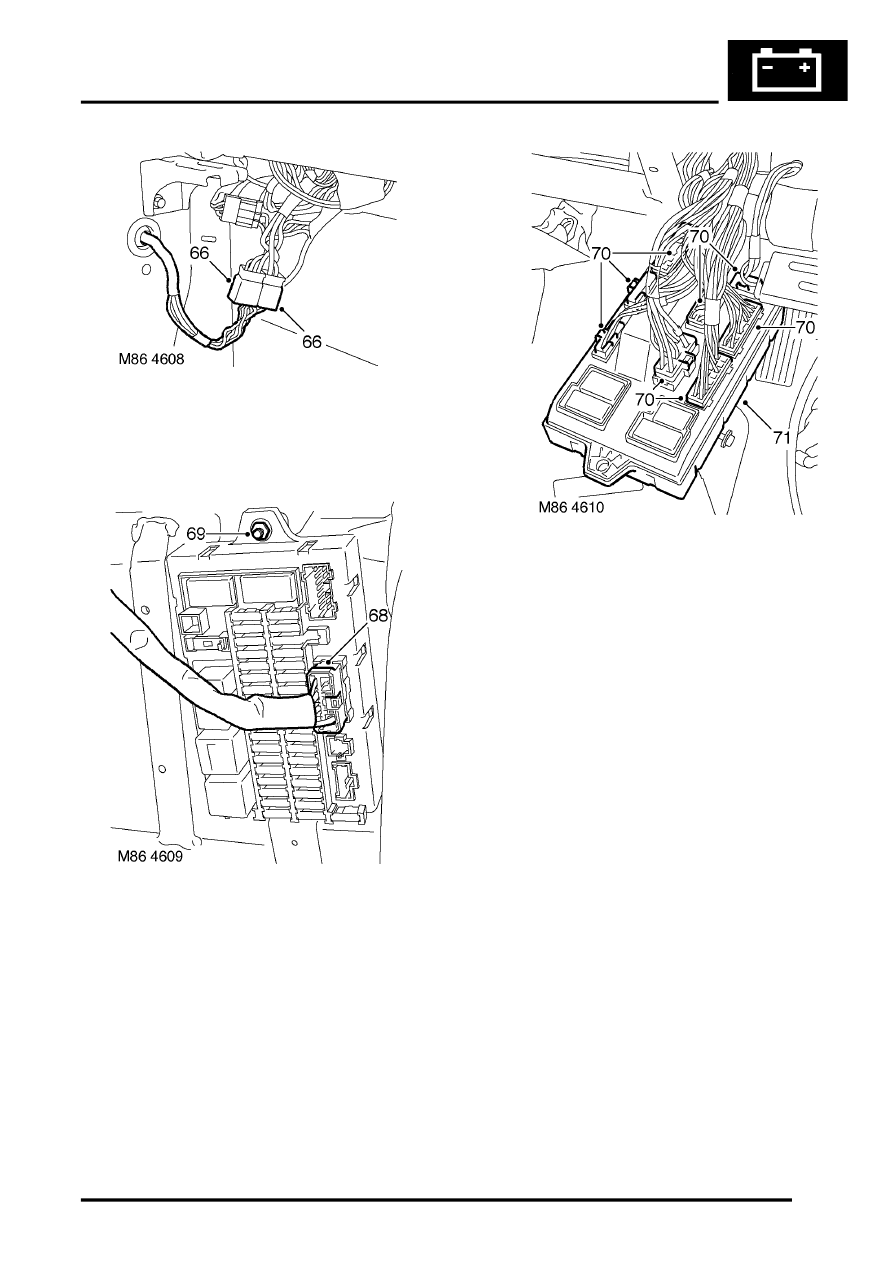

66. Disconnect 2 multiplugs from front door
harness.
67. With assistance withdraw LH side harness into
interior.
68. Disconnect ignition harness multiplug from
passenger compartment fusebox.
69. Remove nut securing passenger compartment
fusebox to steering support bracket.
70. Release fusebox and disconnect 8 multiplugs.
71. Remove fusebox.
